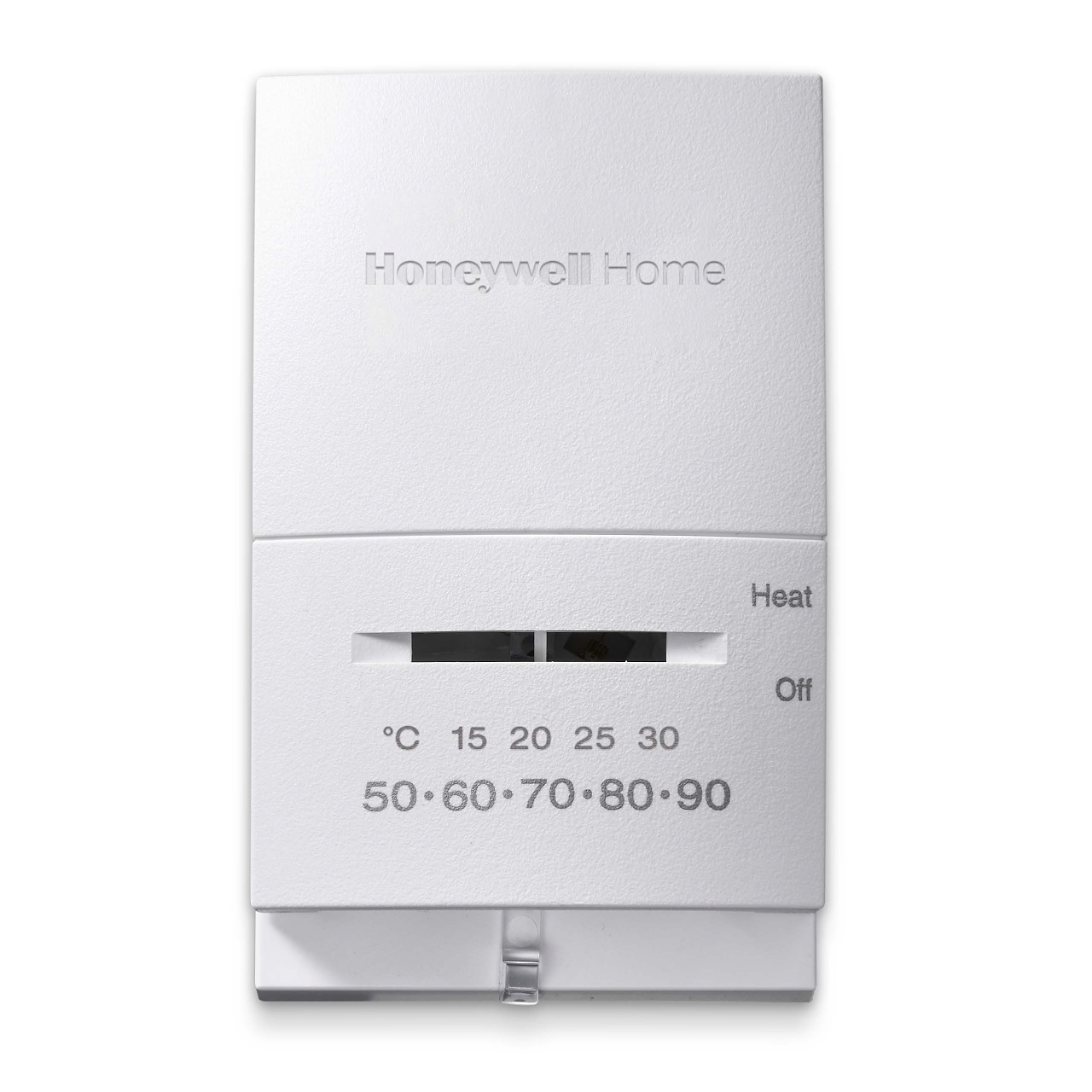

Resideo T827K Heat Only Mechanical Thermostat, 1 H / 0 C, 12 VDC, 750 mV, Low Voltage DC, Millivolt, None Changeover, Mechanical, 45-95 °F Temperature Settings, Wall Mount, Vertical
Resideo T827K Heat Only Mechanical Thermostat, 1 H / 0 C, 12 VDC, 750 mV, Low Voltage DC, Millivolt, None Changeover, Mechanical, 45-95 °F Temperature Settings, Wall Mount, Vertical
| Accuracy | : | ± 2 °F |
| Additional Information | : | Vertical Cover, One Heat, Non-Programmable, 1-Stage |
| Amperage Rating | : | 0.02-1.2 A |
| Changeover | : | None |
| Color | : | White |
| Cool Current | : | 0.02 to 1.2 A |
| Dimensions | : | 4-3/4" H x 2-7/8" W x 1-3/8" D |
| Display Type | : | Mechanical |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.2 A |
| Humidity Rating | : | 5 to 90% Non-Condensing |
| Model | : | T827K1009 |
| Mounting Type | : | Wall Mount, Vertical |
| Power Rating | : | 1.2-2.4 W |
| Power Source | : | Low Voltage DC, Millivolt |
| Sensing Element | : | Bimetal |
| Series | : | T827 Series |
| Stages | : | 1 H / 0 C |
| Suitable For Use With | : | Heating Systems: 750 mV or 12 Vdc |
| Switch Position | : | Heat/Off (System) |
| Switch Type | : | Snap Action |
| Temperature Rating | : | 0 to 120 deg F |
| Temperature Settings | : | 45-95 °F |
| Voltage Rating | : | 12 VDC, 750 mV |
Meet all current and future mercury-free thermostat compliance needs with Resideo's Mercury-Free Econostat. With a sleek, attractive appearance, and the same precision temperature control and reliable performance as the original Econostat, the Mercury-Free Econostat is the perfect electromechanical replacement choice for you and your customers.
Resideo Heat Only Mechanical Thermostat, Model: T827K, 1 H / 0 C, 12 VDC, 750 mV, Low Voltage DC, Millivolt, None Changeover, Mechanical, 45-95 °F Temperature Settings, Wall Mount, Vertical, ± 2 °F Accuracy, Snap Action, Heat/Off (System), Bimetal, 4-3/4" H x 2-7/8" W x 1-3/8" D Dimensions, White, 1.2-2.4 W, 0.02-1.2 A, 50 Hz, 60 Hz
- Controls single-stage heating systems rated for 750 mV or 12 VDC.
- Features a coiled bimetal element operating a precision snap-action switch for reliable temperature control.
- Mounts vertically to a wall or standard vertical outlet box using two screws.
- Mercury-free design meets current and future compliance requirements.
- Adjustable heat anticipation allows fine-tuning for specific heating equipment.
- Easy front-wiring installation with the same footprint as older mercury-switching models.
- Backed by a 5-year warranty.
