| Amperage Rating | : | 1 mA |
| Dimensions | : | 9.72 in H x 3.94 in W x 2.95 in D |
| Electrical Connection | : | Enclosed Screw Terminal Strip (22 - 14 AWG) |
| Enclosure Type | : | NEMA 2 |
| Frequency Rating | : | 50/60 Hz |
| Input Impedance | : | 95 kOhm |
| Stroke | : | 90 deg |
| Temperature Rating | : | -40 to 60 deg C |
| Timing Range | : | 90 s |
| Torque Rating | : | 20 to 34 N-m |
| VA Rating | : | 16 VA Driving, 5 VA Holding |
| Voltage Rating | : | 24 VAC |

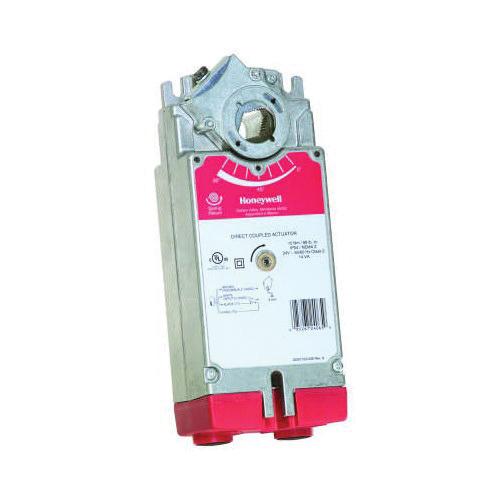

Honeywell Valve Actuator, 1 mA, 24 VAC, 50/60 Hz, VA Rating: 16 VA Driving, 5 VA Holding, Enclosed Screw Terminal Strip (22 - 14 AWG) Electrical Connection, 90 s Timing, 20 to 34 N-m Torque, 95 kOhm Input, 90 deg Stroke, NEMA 2 Enclosure, -40 to 60 deg C, 9.72 in H x 3.94 in W x 2.95 in D
- Access cover to facilitate connectivity
- Metal housing with built-in mechanical end limits
- Shaft position indicator and scale
- Manual winding capability with locking function
- Self-centering clamping adapter
