| Accuracy | : | +/-2 deg F |
| Additional Information | : | Precision Snap Action |
| Color | : | Premier White |
| Dimensions | : | 4-3/4 in H x 2-7/8 in W x 1-3/8 in D |
| Heat Current | : | 0.02 to 1 A |
| Mounting Type | : | Vertical |
| Product Type | : | THERMOSTATS |
| Sensing Element | : | Bi-Metal |
| Series | : | T822 Series |
| Stages | : | 1 |
| Switch Type | : | SPST |
| Temperature Rating | : | 45 to 95 deg F |
| Voltage Rating | : | 20 - 30 V |

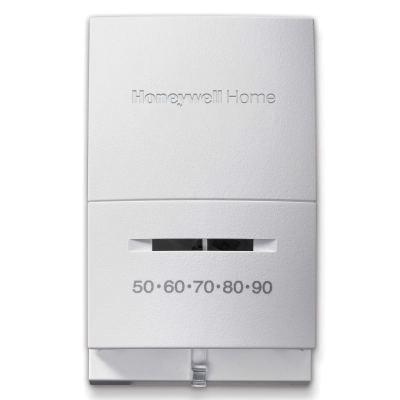

Honeywell Home Thermostat, Series: T822 Series, 20 - 30 V, 1 Stages, SPST, Bi-Metal Sensing Element, 45 to 95 deg F, +/-2 deg F Accuracy, Heat Current: 0.02 to 1 A, Vertical Mounting, 4-3/4 in H x 2-7/8 in W x 1-3/8 in D, Premier White, Additional Information: Precision Snap Action Switch
- Thermostats provide 24 Vac control of heating or cooling systems
- Vented cover for improved temperature sensing
- Setting lever and thermometer scale on thermostat face
- Mounts directly on the wall or on vertical outlet box
- Integrated thermometer and setting scale
