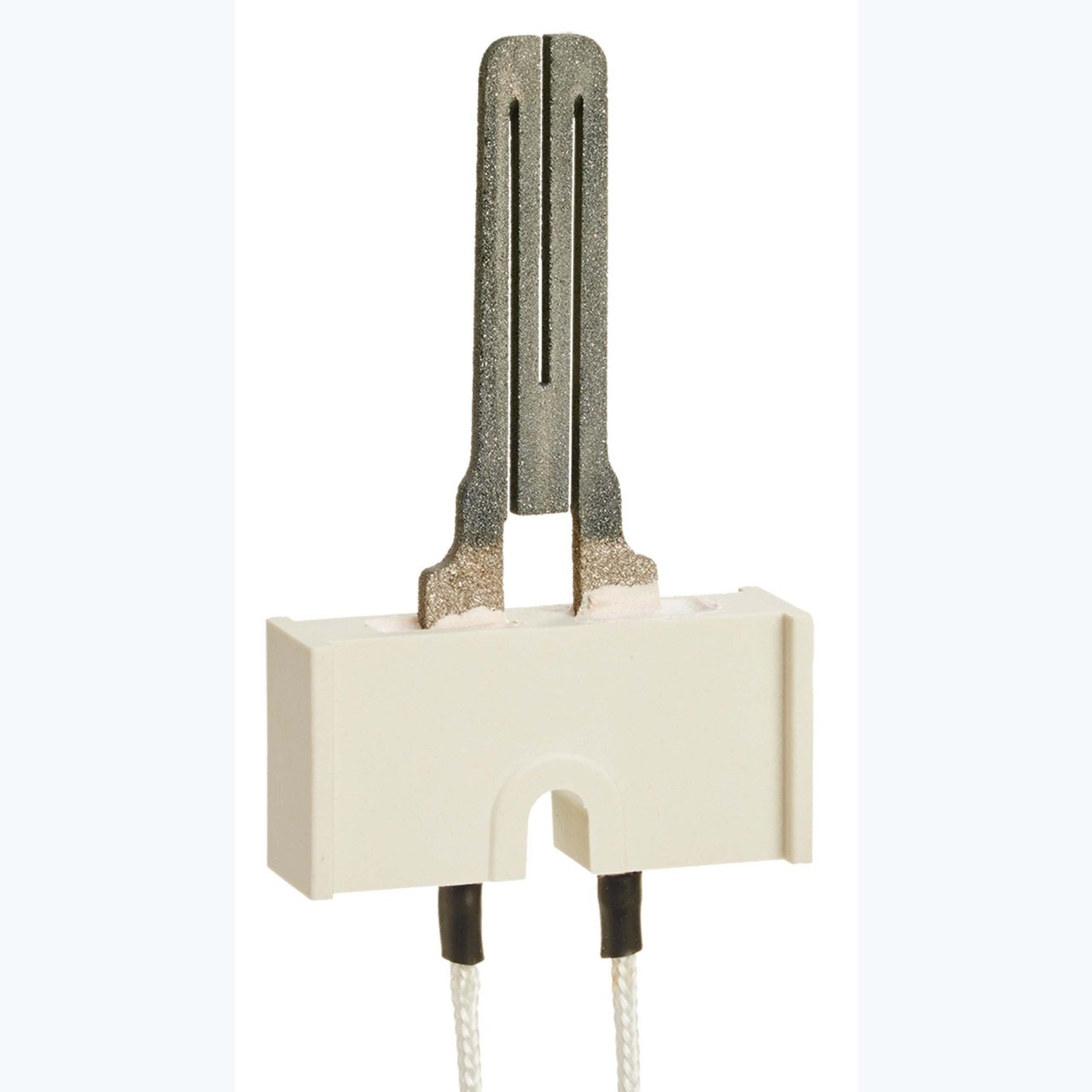

Resideo Q4100C Q4100C9056 Hot Surface Igniter, 120 VAC, Natural Gas, Propane (LP), 5-1/4" Lead Length, Receptacle, Male Pin (0.093"), Rib Mount (Offset Left Edge), Silicon Carbide, 392 °F
Resideo Q4100C Q4100C9056 Hot Surface Igniter, 120 VAC, Natural Gas, Propane (LP), 5-1/4" Lead Length, Receptacle, Male Pin (0.093"), Rib Mount (Offset Left Edge), Silicon Carbide, 392 °F
| Color | : | Metallic |
| Connection Type | : | Receptacle, Male Pin (0.093") |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas, Propane (LP) |
| Heat-Up Time | : | 17 seconds |
| Lead Length | : | 5-1/4 " |
| Material | : | Silicon Carbide |
| Mounting Type | : | Rib Mount (Offset Left Edge) |
| Phase | : | 1 |
| Series | : | Q4100C |
| Temperature Rating | : | 392 °F |
| Terminal Type | : | Receptacle, 0.093" Male Pin |
| Voltage Rating | : | 120 VAC |
Q4100C Hot Surface Igniters are designed to provide a robust field service replacement igniter in gas fired appliances with 120 VAC silicon carbide hot surface igniters. The Q4100C uses a 120 volt silicon carbide igniter design with long life and high resistance to damage or burn out in the appliance. Q4100C models include the silicon carbide igniter, bracket, screw, and wiring accessories to adapt the igniter to the specific appliance application. Clear instructions and cross reference tables are provided to simplify selection of the proper igniter and ease installation of the replacement.
Resideo Hot Surface Igniter, Model: Q4100C, 120 VAC, Natural Gas, Propane (LP), 5-1/4" Lead Length, Receptacle, Male Pin (0.093"), Rib Mount (Offset Left Edge), Silicon Carbide, 392 °F, ≤17 Seconds, 1 Phase, 60 Hz, Metallic
- Robust 120 VAC silicon carbide construction offers long service life and resists damage.
- Includes igniter, mounting bracket, screw, and wiring accessories for adaptable installation.
- Designed for reliable ignition in natural gas or propane (LP) fired heating systems.
- Features 5-1/4 inch insulated lead wires with a receptacle connector (0.093" male pins).
- Mounts using a standard bracket with a rib offset from the left edge.
- Serves as a direct field replacement for many common Robertshaw, White-Rodgers, and Norton igniters.
- Backed by a 2-year manufacturer warranty.
