| Electrical Connection | : | M1-Power/M6-Common Terminal |
| Finish | : | Galvanized |
| Material | : | Steel |
| Motor Type | : | Power Open, Spring Closed |
| Series | : | EARD Series |
| Shape | : | Round |
| Temperature Rating | : | 0 to 165 deg F |
| Timing Range | : | 30 s |
| Voltage Rating | : | 24 VAC |

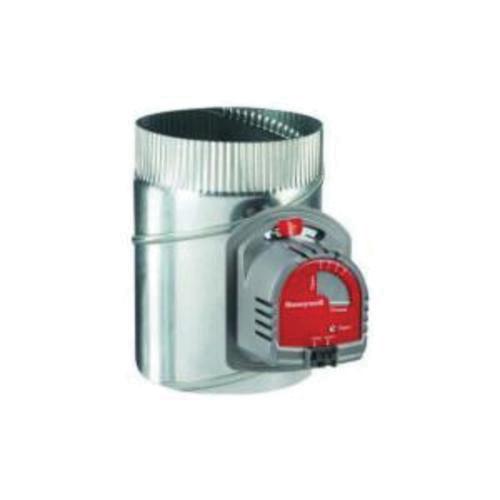

The EARD is a round damper with a 24 VAC powered-open/spring-closed motor. It is used for fresh air intake for ventilation or for combustion makeup air.
Honeywell Fresh Air Damper, EARD Series, 24 VAC, M1-Power/M6-Common Terminal Electrical Connection, 30 s Timing Range, Steel, Galvanized, Power Open, Spring Closed Motor, Round Shape, 0 to 165 deg F
- Adjustable damper position range stops
- Single blade damper
- Shipped as power open/spring return closed damper
- Quiet operation
- Can be field converted to power closed or spring return open damper
- Blade closes off tightly against gasket for minimal leakage
- Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct
- Motor or actuators mounting, side or top
- 30 s power closed/10 s spring return
