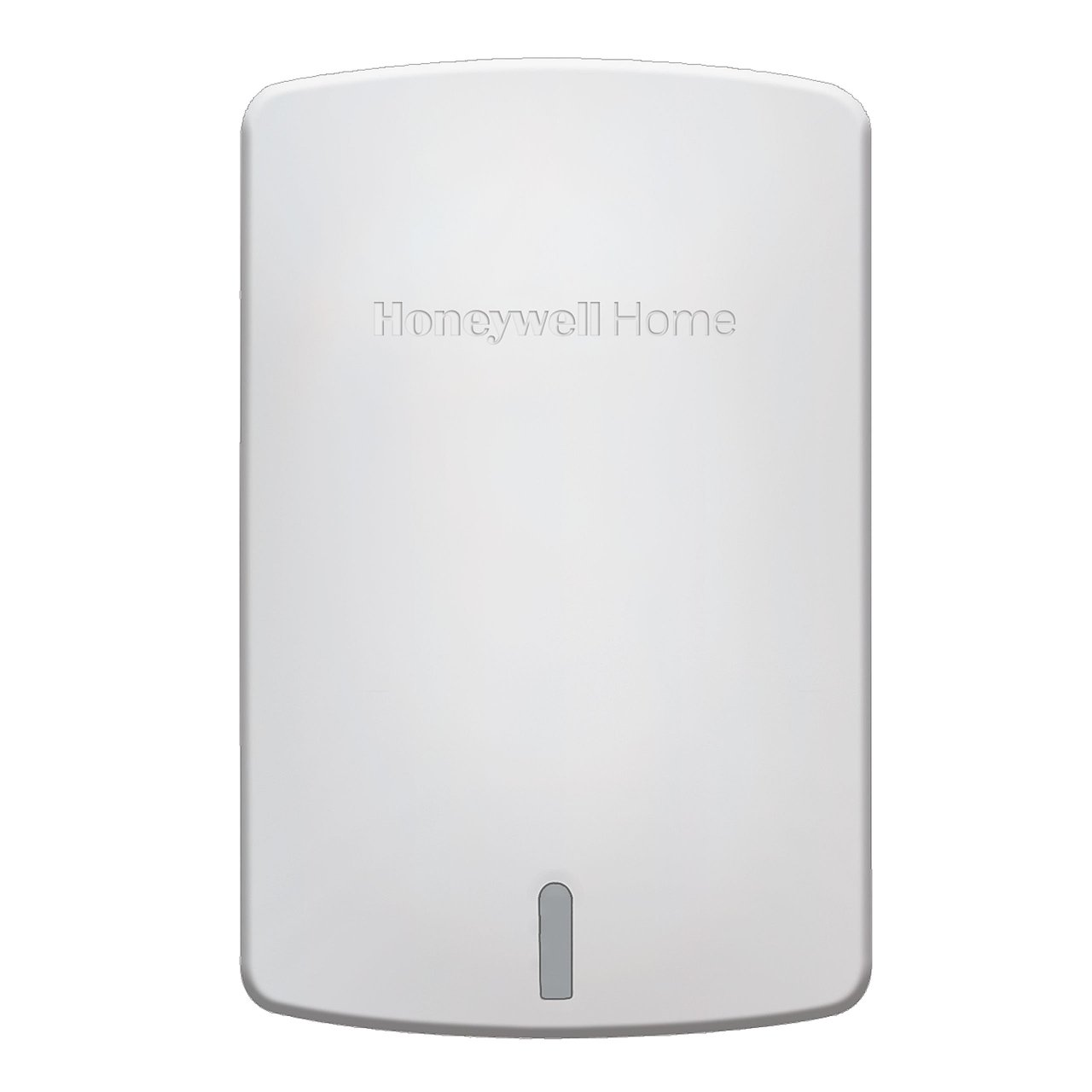

Resideo C7189R Wireless Indoor Air Sensor, Redlink, 0-120 °F, 5-90% (Non-Condensing) Humidity Rating, Wall Mount, Battery Powered (2x AAA), Indoor, 2-7/8" H x 1-7/8" W x 15/16" D Dimensions

Resideo C7189R Wireless Indoor Air Sensor, Redlink, 0-120 °F, 5-90% (Non-Condensing) Humidity Rating, Wall Mount, Battery Powered (2x AAA), Indoor, 2-7/8" H x 1-7/8" W x 15/16" D Dimensions

Manufacturer: Honeywell International Inc
Brand: Honeywell
Part #: 385842
MPN: C7189R1004/U
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Color      :      White
Connection Type      :      RedLINK
Dimensions      :      2-7/8" H x 1-7/8" W x 15/16" D
Electrical Rating      :      Battery Powered (2x AAA)
Enclosure Type      :      Indoor
Frequency Rating      :      900,000,000 Hz
Humidity Rating      :      5-90% (Non-Condensing)
Model      :      C7189R1004/U
Mounting Type      :      Wall Mount
Series      :      C7189R
Suitable For Use With      :      Thermostats: Redesigned Prestige IAQ, Prestige IAQ 2.0, Prestige 2.0, RedLINK VisionPRO 8000, T10, T10+, T10+PRO Smart with Red Sensor; Prestige IAQ Kits
Temperature Rating      :      0-120 °F

Compensate for a thermostat installed in a poor temperature-sensing location with the sleek, discreet RedLINK® Wireless Indoor Air Sensor. This remote sensor measures both temperature and humidity, blending in with any room decor and creating flexibility in the installation location. It is pre-calibrated for easy installation and customer use.This sensor utilizes Resideo's RedLINK wireless communication protocol to transmit temperature and humidity readings remotely. It is designed for indoor use and helps ensure accurate temperature control when the main thermostat's placement is not ideal. This product is available in the US only.

Resideo Wireless Indoor Air Sensor, Model: C7189R, Redlink, 0-120 °F, 5-90% (Non-Condensing) Humidity Rating, Wall Mount, Battery Powered (2x AAA), Indoor, 2-7/8" H x 1-7/8" W x 15/16" D Dimensions, White, 900,000,000 Hz

  • Senses temperature and humidity remotely to improve accuracy when the thermostat is poorly placed.
  • Utilizes RedLINK wireless technology for reliable communication.
  • Small, discreet design in Arctic White blends easily into any room.
  • Easy wall-mount installation with included bracket and hardware.
  • Factory calibrated for accurate readings out of the box, no field calibration needed.
  • Powered by two included AAA alkaline batteries.
  • Compatible With: Redesigned Prestige IAQ, Prestige IAQ 2.0, Prestige 2.0, All New RedLINK VisionPRO 8000, T10, T10+, T10+Pro Smart thermostats and Prestige IAQ Kits.
  • Includes a 5-year manufacturer warranty.
  • Brochure https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/brochure-for-the-prestige-iaq-for-light-commercial-applications-english-3151-3485.pdf
  • Installation and Operation Manual https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/c7189r-sensor-interno-sem-fio-installation-and-operation-manual-3151-4384.pdf
  • Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/catalog-pages-s-3151-7572.pdf
  • Data Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/redlink-compatibility-chart-3151-3497.pdf
  • Accessories Guide https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/wifi-and-redlink-connected-thermostat-and-accessory-guide-3151-3496.pdf
