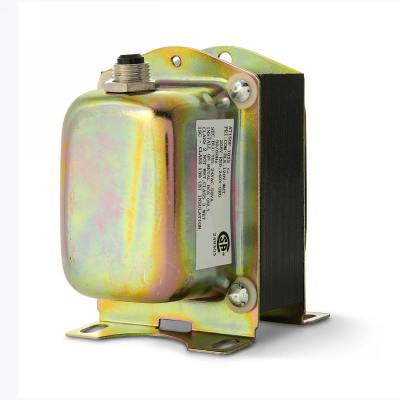

Resideo AT150 AT150F1022 Transformer, 50 VA, 120 VAC, 208 VAC, 240 VAC Primary Voltage, 24 VAC (At Rated Power Output), 27.5 VAC (Open Circuit), 1, Wired / Lead Wires (Primary, Secondary), Plate Mount, Foot Mount, Knockout Mount, 3-3/16" H x 2-3/16" W x 3-5/8" D Dimensions
Resideo AT150 AT150F1022 Transformer, 50 VA, 120 VAC, 208 VAC, 240 VAC Primary Voltage, 24 VAC (At Rated Power Output), 27.5 VAC (Open Circuit), 1, Wired / Lead Wires (Primary, Secondary), Plate Mount, Foot Mount, Knockout Mount, 3-3/16" H x 2-3/16" W x 3-5/8" D Dimensions
| Action Type | : | Manual Reset (Circuit Breaker) |
| Color | : | Metallic |
| Connection Type | : | Wired / Lead Wires (Primary, Secondary) |
| Dimensions | : | 3-3/16" H x 2-3/16" W x 3-5/8" D |
| Domestic/Import | : | Import |
| Frequency Rating | : | 60 Hz |
| Knockout Size | : | 7/8" (For Panel Mount) |
| Model | : | AT150F1022 |
| Mounting Type | : | Plate Mount, Foot Mount, Knockout Mount |
| Phase | : | 1 |
| Primary Voltage | : | 120 VAC, 208 VAC, 240 VAC |
| Secondary Voltage | : | 24 VAC (At Rated Power Output), 27.5 VAC (Open Circuit) |
| Series | : | AT150 |
| Temperature Rating | : | -20-105 °F |
| VA Rating | : | 50 VA |
These general purpose transformers provide power to 24 Vac circuits. Although typically used in heating/cooling control systems, they can be used in any application that doesn't exceed the load ratings. AT150 is rated at 50 VA. All models meet NEC Class 2 not wet, and conform to UL Standard 1585. Mounting options include clamp mounting on outlet box knockout, plate mounting, foot mounting, panel mounting, conduit or panel, and combination.
Resideo Transformer, Model: AT150, 50 VA, 120 VAC, 208 VAC, 240 VAC Primary Voltage, 24 VAC (At Rated Power Output), 27.5 VAC (Open Circuit), 1, Wired / Lead Wires (Primary, Secondary), Plate Mount, Foot Mount, Knockout Mount, 3-3/16" H x 2-3/16" W x 3-5/8" D Dimensions, 7/8" (For Panel Mount) Knockout Size, -20-105 °F, 60 Hz, Import, Metallic, Manual Reset (Circuit Breaker)
- Powers 24 VAC circuits with a 50 VA rating.
- Accommodates multiple primary input voltages: 120 VAC, 208 VAC, and 240 VAC.
- Features a built-in circuit breaker with a manual reset button for overcurrent protection.
- Offers versatile mounting options including foot, plate, panel, or conduit mounting.
- Includes color-coded 9-inch lead wires for simplified primary and secondary connections.
- Meets NEC Class 2 (not wet) and Class 3 (wet) requirements.
- UL Listed (File E14881) and CSA Certified (File LR95329-18).
