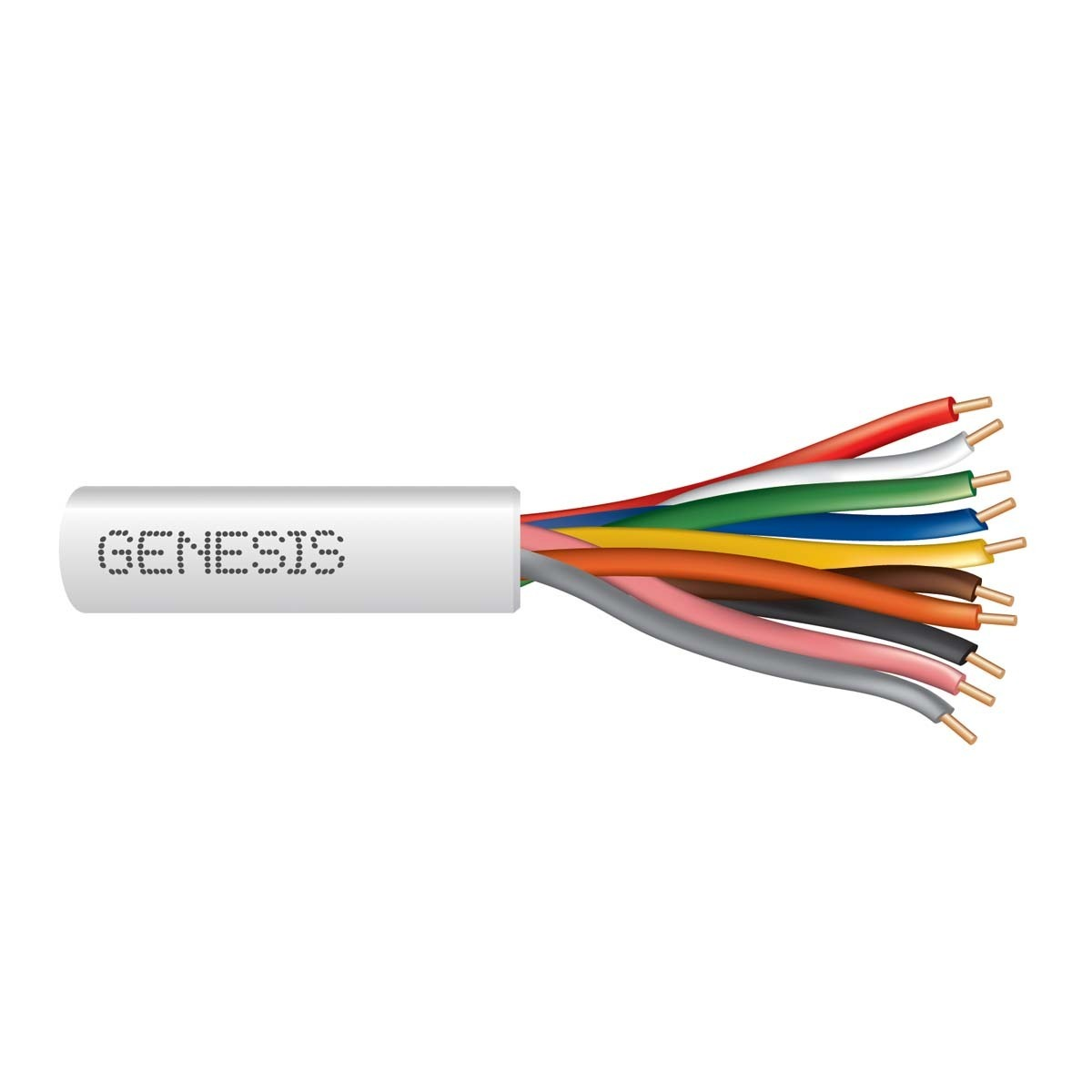

Resideo Genesis 47164607 Thermostat Cable, 18 AWG, 8 Conductors, 125' Length, Solid, Bare Copper, 150 V (Max), -4-140 °F
Resideo Genesis 47164607 Thermostat Cable, 18 AWG, 8 Conductors, 125' Length, Solid, Bare Copper, 150 V (Max), -4-140 °F
| Capacitance | : | 22.8 pF/ft |
| Conductor Material | : | Bare Copper |
| Conductor Size | : | 18 AWG |
| Conductor Type | : | Solid |
| End Type | : | Bare Wire |
| Impedance | : | 100 Ohms |
| Insulation Color | : | Red, White, Green, Blue, Yellow, Brown, Orange, Black |
| Insulation Material | : | Polypropylene |
| Insulation Thickness | : | 0.006 " |
| Jacket Color | : | Brown |
| Jacket Material | : | PVC |
| Jacket Thickness | : | 0.015 " |
| Lay Length | : | 4 " |
| Length | : | 125 ' |
| Number of Conductors | : | 8 |
| Outside Diameter | : | 0.204 " |
| Package Type | : | Speed Bag |
| Resistance | : | 6.52 Ohms (Per 1000 Ft @ 20°C) |
| Series | : | Genesis |
| Solid/Stranded | : | Solid |
| Temperature Rating | : | -4-140 °F |
| Voltage Rating | : | 150 V (Max) |
This thermostat cable features eight 18 AWG solid bare copper conductors, suitable for various thermostat wiring applications in both residential and commercial settings. The cable has a brown PVC jacket and polypropylene insulation, providing durability and protection.It is CL2 rated for general purpose, non-plenum use and is sunlight resistant. Packaged in a convenient 125-foot Speed Bag, this cable supports a maximum voltage of 150V and has a temperature rating of -20°C to 60°C (-4°F to 140°F).
Resideo Thermostat Cable, Model: Genesis, 18 AWG, 8 Conductors, 125' Length, Solid, Bare Copper, 150 V (Max), -4-140 °F, Polypropylene Insulation, PVC Jacket, 0.015" (Nominal) Jacket Thickness, 0.006" (Nominal) Insulation Thickness, Bare Wire, Brown, Red, White, Green, Blue, Yellow, Brown, Orange, Black Insulation Color, 0.204" (Nominal) Outside Diameter, 4" (Nominal) Lay Length, Speed Bag, Solid Conductor, 6.52 Ohms (Per 1000 Ft @ 20°C), 100 Ohms (Nominal), 22.8 Pf/Ft
- Features eight 18 AWG solid bare copper conductors for reliable signal transmission.
- CL2 rated and sunlight resistant PVC jacket suitable for general purpose applications.
- Includes a rip cord for easier jacket stripping during installation.
- Packaged in a 125-foot Speed Bag for convenient handling and dispensing.
- Rated for temperatures ranging from -20°C to 60°C (-4°F to 140°F).
- ETL Listed and RoHS compliant.
- Made in the USA.
