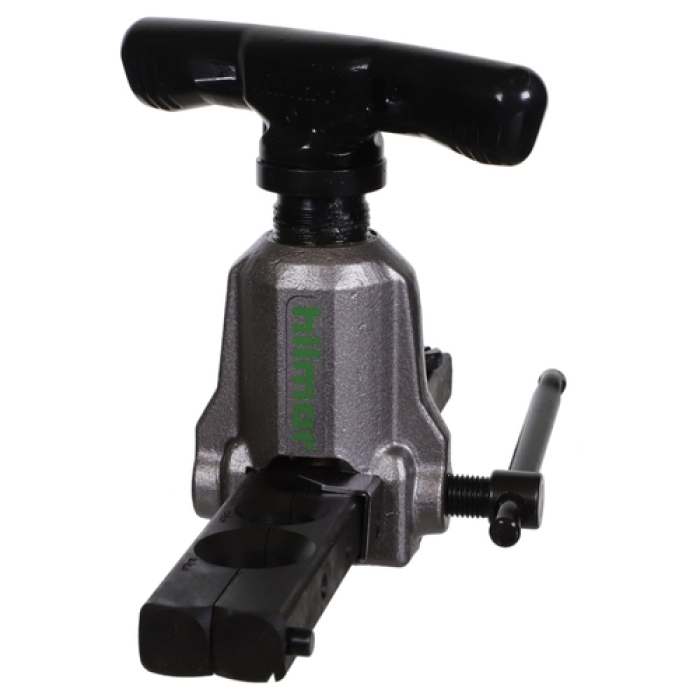

hilmor® 1838952 Orbital Flare, For Tube Size: 3/16 in, 1/4 in, 5/16 in, 3/8 in, 1/2 in, 5/8 in, 3/4 in, 45 deg Flare
hilmor® 1838952 Orbital Flare, For Tube Size: 3/16 in, 1/4 in, 5/16 in, 3/8 in, 1/2 in, 5/8 in, 3/4 in, 45 deg Flare
| Applicable Materials | : | Aluminum, Brass, Soft Copper, Steel |
| Flare Angle | : | 45 deg |
| Flare Type | : | Single |
| For Tube Size | : | 3/16 in, 1/4 in, 5/16 in, 3/8 in, 1/2 in, 5/8 in, 3/4 in |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 8.11 in |
| Packaged Height | : | 3.94 in |
| Packaged Width | : | 5.43 in |
| Product Type | : | Orbital Flare |
| Shipping Weight | : | 3.86 lb |
The hilmor Orbital Flare was designed to produce quality flares - again and again. It has an off-center mounted cone that spins on an axis to make sure it uniformly shapes the tube. Plus, it's equipped with the kind of features you need - a spring-loaded block to firmly grip the tube, a tube-stop arrow for precise height and positioning (goodbye, nickel), and ball detents for easy flaring yoke alignment. It even has a clutch mechanism that stops the flaring when the job is done to eliminate cracking the tube.
hilmor® Orbital Flare, For Tube Size: 3/16 in, 1/4 in, 5/16 in, 3/8 in, 1/2 in, 5/8 in, 3/4 in, Applicable Materials: Aluminum, Brass, Soft Copper, Steel, 45 deg Flare Angle, Single Flare
- An off-center mounted cone spins on an axis to effectively produce quality flares
- A clutch mechanism stops the flaring when the job is done
- A clothespin-inspired, spring-loaded block grips the tube securely
- A tube-stop arrow slides to set correct height and positioning, while ball detents allow for easy flaring cone alignment
