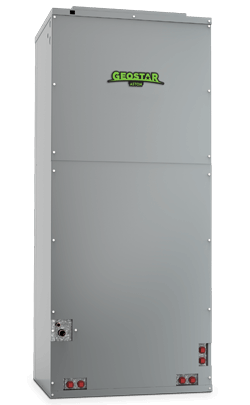

Geostar® Aston Series SAH SAH060B201CR1S18 Air Handler, 5 Tons, Aurora AHB Control, Variable Speed ECM1 Motor, R-410A, 22" x 20" x 1" Filter Size, 20 kW Factory Heat, 3/4" FPT (Condensate) Connection, 208/230 V
Geostar® Aston Series SAH SAH060B201CR1S18 Air Handler, 5 Tons, Aurora AHB Control, Variable Speed ECM1 Motor, R-410A, 22" x 20" x 1" Filter Size, 20 kW Factory Heat, 3/4" FPT (Condensate) Connection, 208/230 V
| Amperage Rating | : | 76.3 A (FLA, 208 V); 87.0 A (FLA, 240 V) |
| BTU Rating | : | 60,000 BTU/hr |
| Configuration | : | Aurora AHB Control, Variable Speed ECM1 Motor |
| Connection Type | : | 3/4" FPT (Condensate) |
| Dimensions | : | 58" H x 24-9/10" W x 21-1/5" D |
| Factory Heat | : | 20 kW |
| Filter Size | : | 22" x 20" x 1" |
| Finish | : | Powder Coated |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 HP (Blower Motor Output) |
| Material | : | Galvanized Steel |
| Model | : | SAH060B201CR1S18 |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| Series | : | Aston Series SAH |
| Tonnage | : | 5 tons |
| Voltage Rating | : | 208/230 V |
The state-of-the-art Aston Series SAH Air Handler offers comfort, versatility, and efficiency in 3 new cabinet sizes (2 to 6-ton capacities). When paired with our Aston Series split system, an Aston Series SAH Air Handler provides the perfect solution for replacing an air conditioner or heat pump in homes with limited utility space. The air handler utilizes R-410A refrigerant and can be field adjusted to four configurations for a wide range of applications. An optional cased/uncased coil is available for dual fuel applications while an electric back-up heat option is available for added peace of mind. The Aston Series SAH Air Handler can save you up to 70% while providing the comfort and reliability you've come to expect from GeoStar.
Geostar® Air Handler, Model: Aston Series SAH, 5 Tons, Aurora AHB Control, Variable Speed ECM1 Motor, R-410A, 22" x 20" x 1" Filter Size, 20 kW Factory Heat, 3/4" FPT (Condensate) Connection, 208/230 V, 1 Phase, 1 HP (Blower Motor Output), 58" H x 24-9/10" W x 21-1/5" D Dimensions, Galvanized Steel, 76.3 A (FLA, 208 V); 87.0 A (FLA, 240 V), 60 Hz, Powder Coated
- Features a variable speed ECM blower motor for efficient operation.
- Constructed with heavy-gauge galvanized steel and a durable powder-coat finish.
- Field convertible for upflow, downflow, horizontal left, or horizontal right installation.
- Utilizes environmentally friendly R-410A refrigerant.
- Includes 20 kW factory-installed auxiliary electric heat.
- Equipped with Aurora Controls and an external diagnostic port for simplified servicing.
- UL US Listed for safety assurance.
