General Filters 5500 Series 5580 Steam Humidifier, 28.5 GPD, 5,500 Sq. Ft. Coverage Area, 115/230 V, 1 Phase, 1,860 W (115 V), 4,050 W (230 V), 12 AWG, GFX4 Digital
General Filters 5500 Series 5580 Steam Humidifier, 28.5 GPD, 5,500 Sq. Ft. Coverage Area, 115/230 V, 1 Phase, 1,860 W (115 V), 4,050 W (230 V), 12 AWG, GFX4 Digital
| Capacity | : | 28.5 GPD |
| Color | : | White |
| Connection Size | : | 1/4" (OD) |
| Connection Type | : | Compression Adapter |
| Control Type | : | GFX4 Digital |
| Coverage Area | : | 5,500 sq. ft. |
| Dimensions | : | 21" H x 13" W x 8-1/4" D |
| Frequency Rating | : | 50-60 Hz |
| Mounting Type | : | Duct Mount |
| Number of Cylinders | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 1,860 W (115 V), 4,050 W (230 V) |
| Series | : | 5500 Series |
| Voltage Rating | : | 115/230 V |
| Water Supply | : | Potable Water |
| Wire Size | : | 12 AWG |

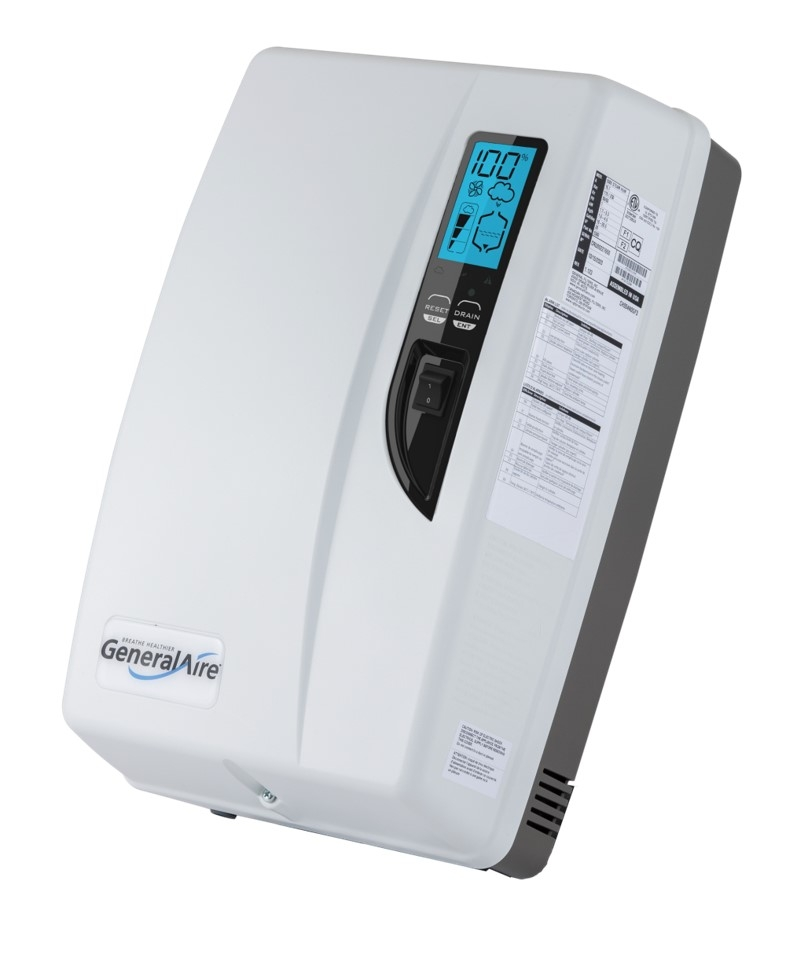

The GeneralAire Model 5500 is a reliable, electrode-type steam humidifier designed for whole-house applications in homes up to 5,500 square feet. It delivers up to 28.5 gallons per day (at 230V) using potable water and features an internal switch for easy selection between 115V and 230V installations. This self-contained unit utilizes an immersed electrode design with a drain pump and is intended for ducted installation.The package includes the GFX4 digital automatic humidistat, which controls humidity levels and can also manage the furnace blower motor. Maintenance is simplified with features like spark-plug style wire connectors for the replaceable Model 55 cylinder and a single captive-screw cover release for easy access.
General Filters Steam Humidifier, Model: 5500 Series, 28.5 GPD, 5,500 Sq. Ft. Coverage Area, 115/230 V, 1 Phase, 1,860 W (115 V), 4,050 W (230 V), 12 AWG, GFX4 Digital, Duct Mount, Compression Adapter, 1/4" (OD) Connection Size, Potable Water, 21" H x 13" W x 8-1/4" D, 1 Cylinder, 50-60 Hz, White
- Provides up to 28.5 GPD (at 230V) for homes up to 5,500 sq. ft.
- Operates on either 115V or 230V power via an internal selector switch.
- Includes GFX4 automatic digital humidistat for precise humidity control and furnace blower management.
- Simplified maintenance with tool-less spark-plug style cylinder connectors and single captive-screw cover release.
- Uses Model 55 replacement cylinder (GFI #7746), compatible with regular and low conductivity potable water (125-1250 µs/cm).
- Installation kit with mounting straps and duct mount kit included for ducted systems.
- Covered by a 5-year manufacturer warranty.
