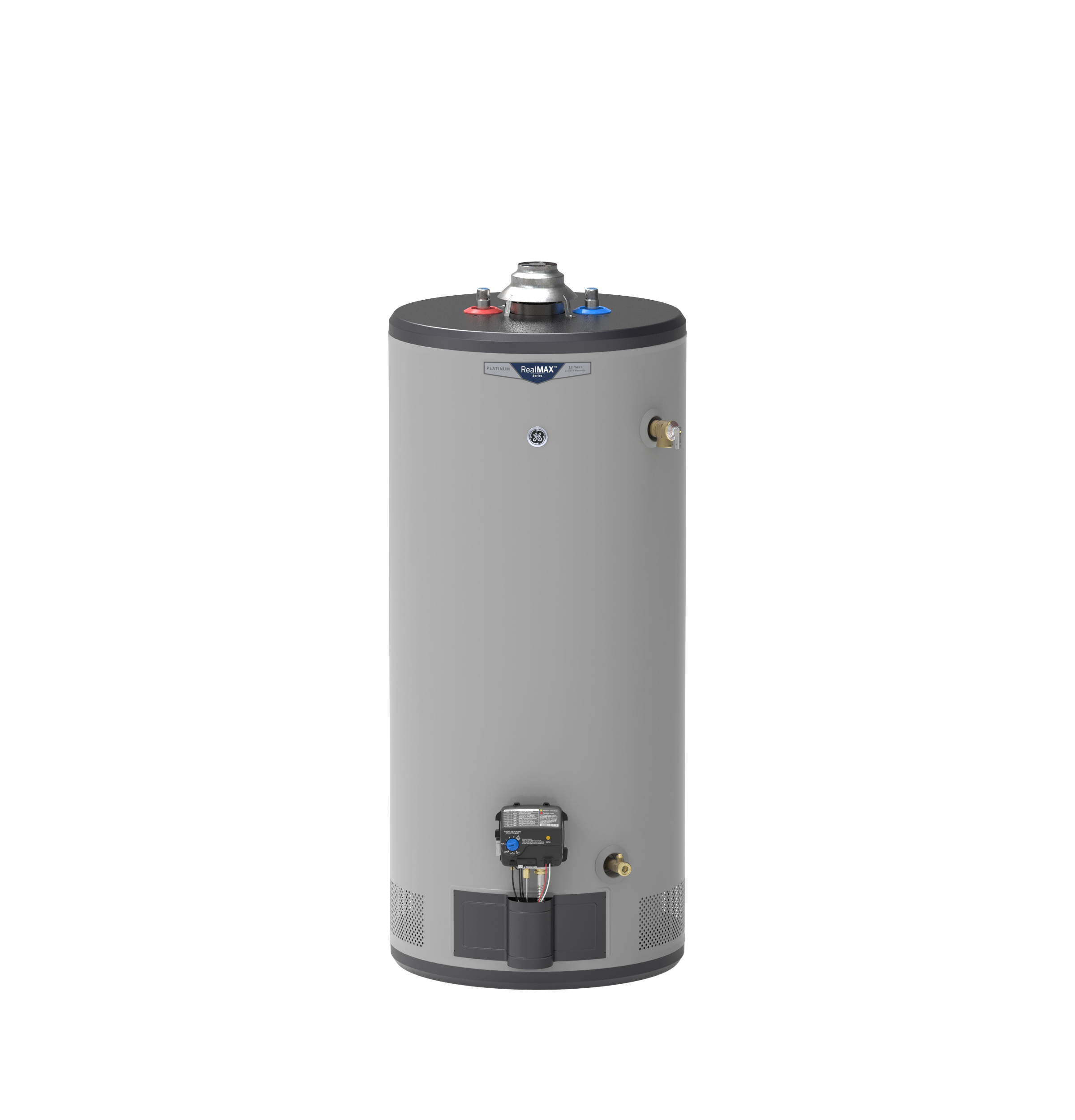

General Electric RealMAX Platinum GP40S12BXR Short LP Water Heater, 40 Gallons Capacity, 34,500 BTU/hr, Propane (LP), 78 GPH First Hour Delivery, 0.64 UEF, No Energy Star Compliant, Atmospheric Vent Type
General Electric RealMAX Platinum GP40S12BXR Short LP Water Heater, 40 Gallons Capacity, 34,500 BTU/hr, Propane (LP), 78 GPH First Hour Delivery, 0.64 UEF, No Energy Star Compliant, Atmospheric Vent Type
| Altitude | : | 10,100 ' |
| BTU Rating | : | 34,500 BTU/hr |
| Capacity | : | 40 gallons |
| Color | : | Gray |
| Connection Type | : | 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection) |
| Dimensions | : | 52-1/4" H x 22" W x 22" D |
| Domestic/Import | : | Domestic |
| Energy Factor | : | 0.64 UEF |
| Energy Star Compliant | : | No |
| First Hour Delivery | : | 78 GPH |
| Fuel Type | : | Propane (LP) |
| Ignition System | : | Standing Pilot |
| Ignition Type | : | Standing Pilot |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel (Tank), Magnesium (Anode Rod) |
| Model | : | GP40S12BXR |
| Mounting Type | : | Floor Mount |
| Series | : | RealMAX Platinum |
| Temperature Rating | : | 45-160 °F (Adjustable Setting) |
| Vent Diameter | : | 3 " |
| Vent Size | : | 3 " |
| Vent Type | : | Atmospheric |
This GE RealMAX Platinum water heater provides ample hot water for households of 2 to 4 people with its 40-gallon capacity. It features a 34.5k BTU liquid propane burner for quick recovery, ensuring hot water is readily available when needed, delivering up to 78 gallons in the first hour.Designed for safety and longevity, it includes the SmartShieldâ„¢ system which monitors surrounding air and shuts off the unit if needed, along with a self-diagnostic LED indicator for system status. A durable magnesium anode rod protects against corrosion, a rust-proof brass drain valve ensures long service, and standard connections facilitate easy replacement installation.
General Electric Short LP Water Heater, Model: RealMAX Platinum, 40 Gallons Capacity, 34,500 BTU/hr, Propane (LP), 78 GPH First Hour Delivery, 0.64 UEF, No Energy Star Compliant, Atmospheric Vent Type, 3" Vent Size, 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection), 52-1/4" H x 22" W x 22" D Dimensions, Floor Mount, 45-160 °F (Adjustable Setting), Standing Pilot, Steel (Tank), Magnesium (Anode Rod), 10,100' Altitude, Domestic, Lead-Free, Gray

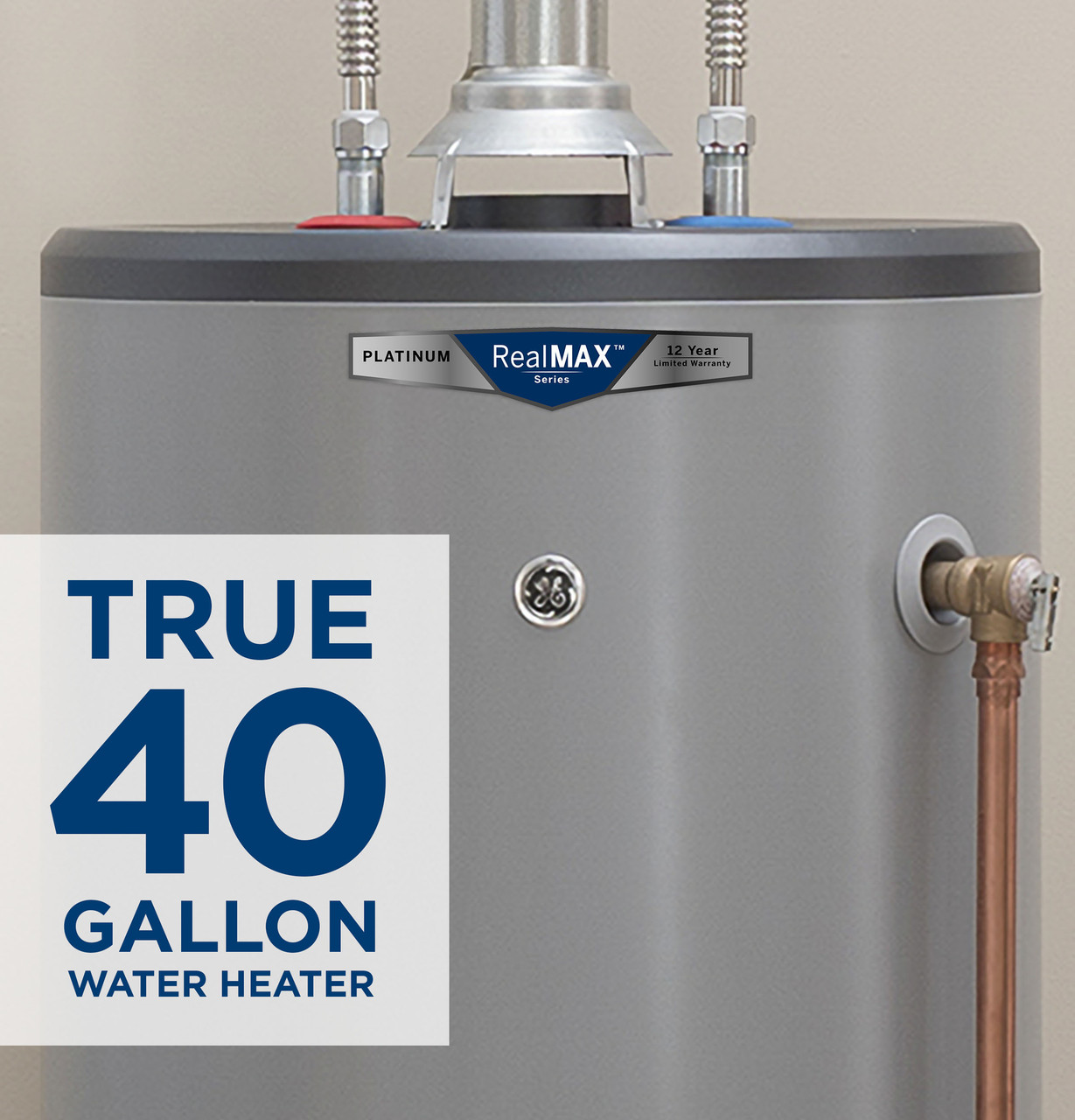

- Provides a true 40 gallons of hot water, suitable for households of 2-4 people.
- Features a 34.5k BTU liquid propane burner for quick recovery (78 GPH First Hour Delivery).
- Includes SmartShieldâ„¢ Safety System for monitoring ambient air and automatic shutoff.
- Self-diagnostic LED indicator monitors and reports gas system status.
- Built with a magnesium anode rod and brass drain valve for durability and corrosion resistance.
- Short design (52.25" H) fits installations with limited vertical space.
- Atmospheric venting design utilizes a standard 3" Type B vent.
- Backed by a 12-year tank/parts limited warranty and 1-year labor limited warranty.
- UL Listed and certified lead-free to NSF/ANSI 372.
