General Electric RealMAX Choice GG50S08BXR Short Natural Gas Water Heater, 50 Gallons Capacity, 40,000 BTU/hr, Natural Gas, 77 GPH First Hour Delivery, 41.6 GPH (At 90°F Rise) Recovery Rate, 0.63 UEF, No Energy Star Compliant
General Electric RealMAX Choice GG50S08BXR Short Natural Gas Water Heater, 50 Gallons Capacity, 40,000 BTU/hr, Natural Gas, 77 GPH First Hour Delivery, 41.6 GPH (At 90°F Rise) Recovery Rate, 0.63 UEF, No Energy Star Compliant
| Altitude | : | 10,100 ' |
| BTU Rating | : | 40,000 BTU/hr |
| Capacity | : | 50 gallons |
| Color | : | Gray |
| Connection Type | : | 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection) |
| Dimensions | : | 49-5/8" H x 25" W x 25" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 63% (UEF), 78% (Recovery Efficiency) |
| Energy Factor | : | 0.63 UEF |
| Energy Star Compliant | : | No |
| First Hour Delivery | : | 77 GPH |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Standing Pilot |
| Ignition Type | : | Standing Pilot |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel (Tank), Magnesium (Anode Rod) |
| Model | : | GG50S08BXR |
| Mounting Type | : | Floor Mount |
| Recovery Efficiency | : | 78 % |
| Recovery Rate | : | 41.6 GPH (At 90°F Rise) |
| Series | : | RealMAX Choice |
| Temperature Rating | : | 45-160 °F (Adjustable Setting) |
| Vent Diameter | : | 3 " |
| Vent Size | : | 3 " |
| Vent Type | : | Atmospheric |
The GE RealMAX Choice GG50S08BXR delivers a true 50-gallon capacity, suitable for households of 3 to 5+ people. Its high-performance 40,000 BTU natural gas burner provides quick hot water recovery, delivering up to 77 gallons in the first hour (based on DOE First Hour Rating). The short design (49-5/8" overall height) allows for installation in height-restricted spaces while utilizing standard water and gas connections for straightforward replacement.This atmospheric vent water heater includes features like the SmartShieldâ„¢ Safety System, which monitors surrounding air and shuts off the unit if abnormal temperatures are detected, and a self-diagnostic LED indicator for system status updates. A durable magnesium anode rod offers corrosion protection to extend tank life, complemented by a rust-proof drain valve. This unit is backed by an 8-year limited tank and parts warranty.
General Electric Short Natural Gas Water Heater, Model: RealMAX Choice, 50 Gallons Capacity, 40,000 BTU/hr, Natural Gas, 77 GPH First Hour Delivery, 41.6 GPH (At 90°F Rise) Recovery Rate, 0.63 UEF, No Energy Star Compliant, Atmospheric Vent Type, 3" Vent Size, 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection), 49-5/8" H x 25" W x 25" D Dimensions, Floor Mount, 45-160 °F (Adjustable Setting), Standing Pilot, Steel (Tank), Magnesium (Anode Rod), 10,100' Altitude, 0.78 Recovery Efficiency, Domestic, Lead-Free, Gray

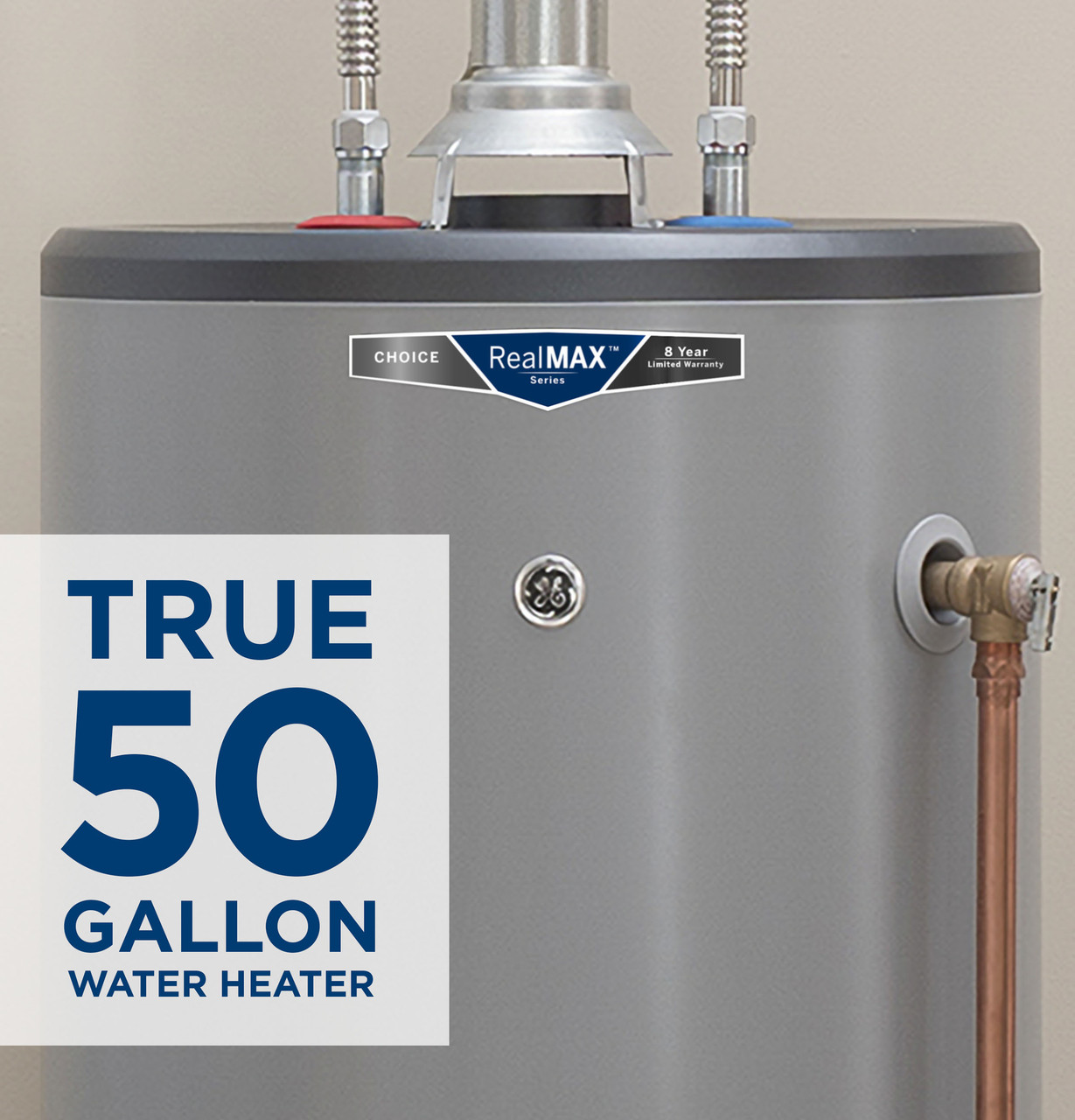

- Provides a true 50-gallon hot water capacity suitable for families of 3-5+.
- Features a 40,000 BTU burner for quick recovery, delivering up to 77 gallons in the first hour.
- Short profile (49-5/8" overall height) allows installation in height-restricted areas.
- SmartShieldâ„¢ Safety System monitors ambient air and shuts unit off if abnormal temperatures are detected.
- Self-diagnostic LED provides gas system status updates.

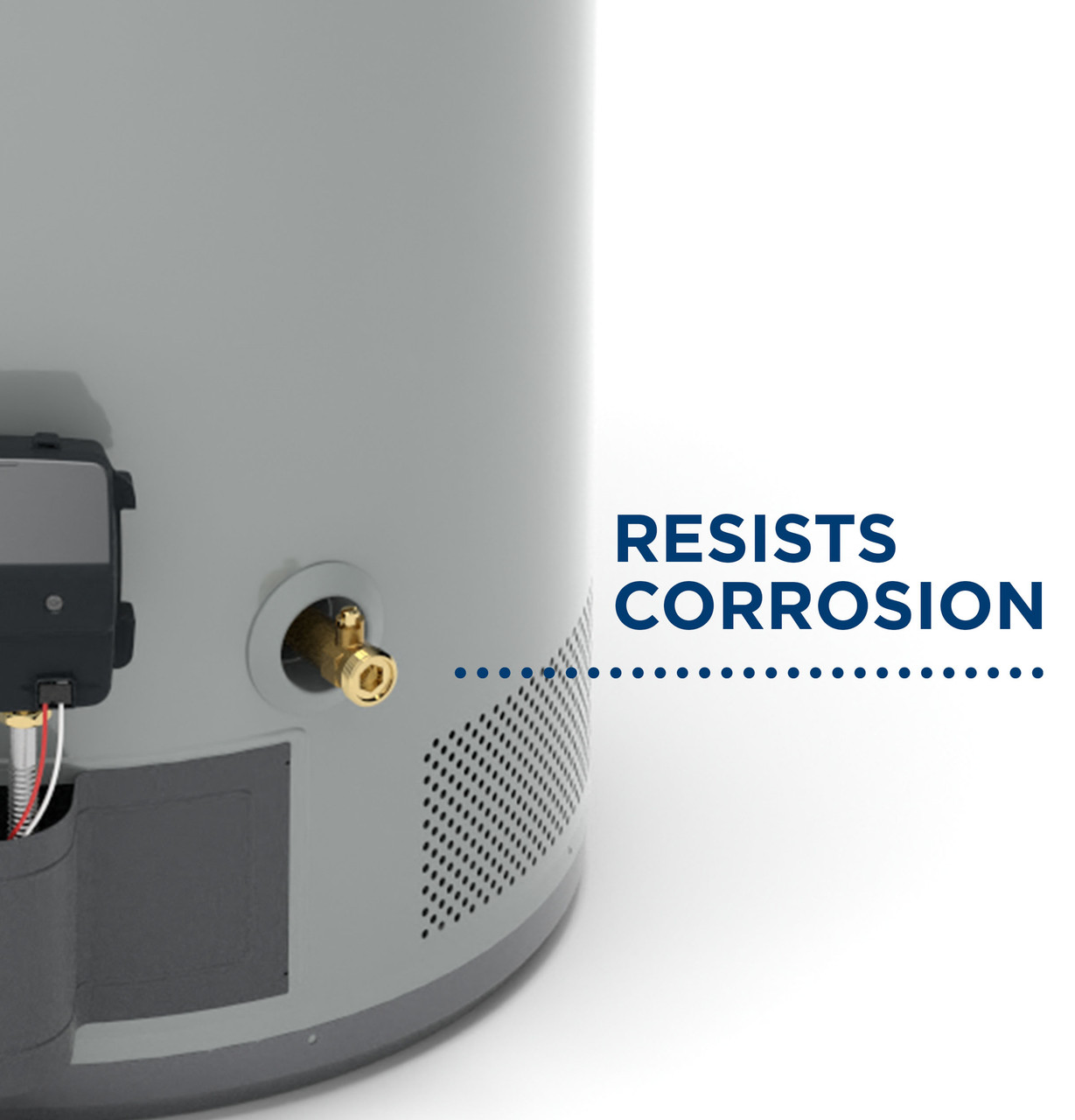

- Durable magnesium anode rod offers long-lasting corrosion protection.
- Uses standard 3/4" MNPT water and 1/2" gas connections.
- Includes an 8-year limited tank and parts warranty.
- UL Listed and certified to NSF/ANSI 372 standards.
