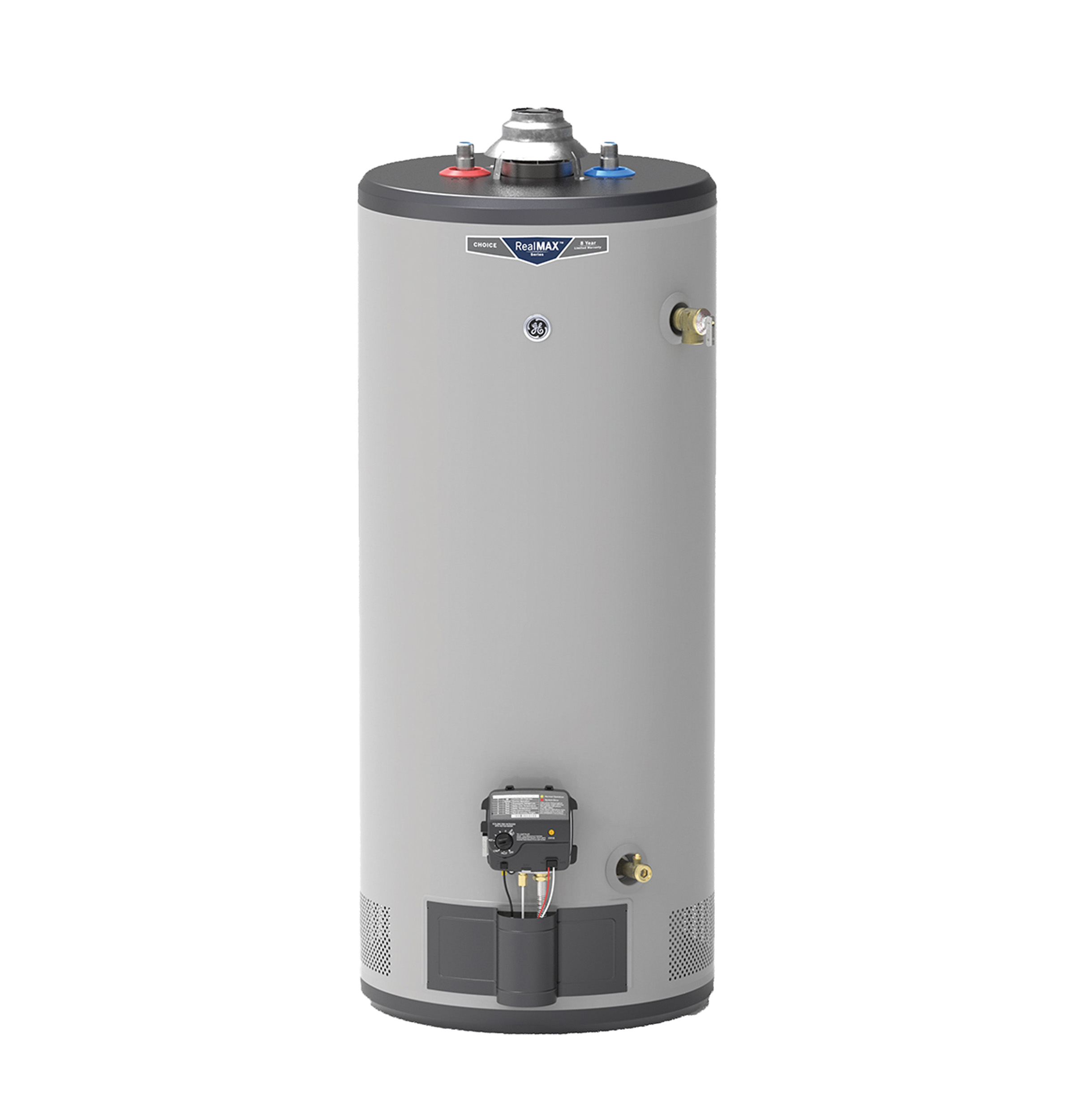

General Electric RealMAX Choice GG30S08BXR Short Natural Gas Water Heater, 30 Gallons Capacity, 34,000 BTU/hr, Natural Gas, 64 GPH First Hour Delivery, 35.4 GPH (At 90°F Rise) Recovery Rate, 0.6 UEF, No Energy Star Compliant
General Electric RealMAX Choice GG30S08BXR Short Natural Gas Water Heater, 30 Gallons Capacity, 34,000 BTU/hr, Natural Gas, 64 GPH First Hour Delivery, 35.4 GPH (At 90°F Rise) Recovery Rate, 0.6 UEF, No Energy Star Compliant
| Altitude | : | 10,100 ' |
| BTU Rating | : | 34,000 BTU/hr |
| Capacity | : | 30 gallons |
| Color | : | Gray |
| Connection Type | : | 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection) |
| Dimensions | : | 50-1/4" H x 20" W x 20" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 60% (UEF), 78% (Recovery Efficiency) |
| Energy Factor | : | 0.6 UEF |
| Energy Star Compliant | : | No |
| First Hour Delivery | : | 64 GPH |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Standing Pilot |
| Ignition Type | : | Standing Pilot |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel (Tank), Magnesium (Anode Rod) |
| Model | : | GG30S08BXR |
| Mounting Type | : | Floor Mount |
| Recovery Efficiency | : | 78 % |
| Recovery Rate | : | 35.4 GPH (At 90°F Rise) |
| Series | : | RealMAX Choice |
| Temperature Rating | : | 45-160 °F (Adjustable Setting) |
| Vent Diameter | : | 3 " |
| Vent Size | : | 3 " |
| Vent Type | : | Atmospheric |
This GE RealMAX Choice water heater provides a true 30 gallons of capacity in a short configuration, suitable for installations with height constraints. Designed for households of 1 to 3 people, it utilizes natural gas and atmospheric venting. Standard 3/4" MNPT water connections and a 1/2" gas connection facilitate straightforward replacement of older units.Featuring a 34,000 BTU burner, this unit offers quick recovery and delivers up to 64 gallons of hot water in the first hour (FHR). Key features include the SmartShield Safety System for automatic shutoff in case of abnormal air temperatures, a self-diagnostic LED indicator for gas system status, and a durable magnesium anode rod for corrosion protection. It operates efficiently up to a 10,100 ft altitude.
General Electric Short Natural Gas Water Heater, Model: RealMAX Choice, 30 Gallons Capacity, 34,000 BTU/hr, Natural Gas, 64 GPH First Hour Delivery, 35.4 GPH (At 90°F Rise) Recovery Rate, 0.6 UEF, No Energy Star Compliant, Atmospheric Vent Type, 3" Vent Size, 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection), 50-1/4" H x 20" W x 20" D Dimensions, Floor Mount, 45-160 °F (Adjustable Setting), Standing Pilot, Steel (Tank), Magnesium (Anode Rod), 10,100' Altitude, Domestic, Lead-Free, Gray, 60% (UEF), 78% (Recovery Efficiency)

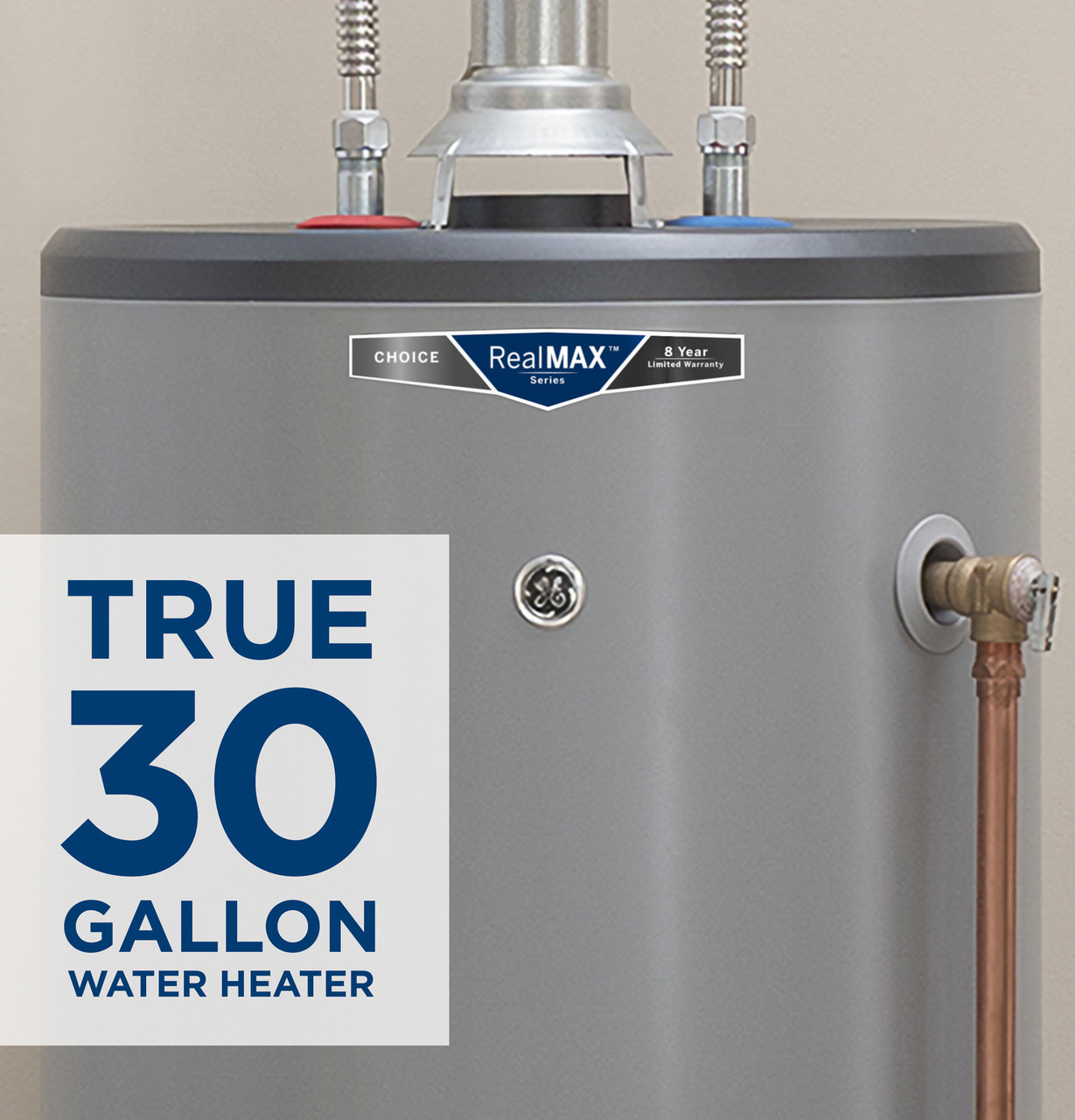

- Holds a true 30 gallons of water in a space-saving short design (approx. 50.25" overall height).
- Delivers up to 64 gallons of hot water in the first hour, powered by a 34,000 BTU natural gas burner.
- SmartShieldâ„¢ Safety System monitors ambient air and shuts off the unit if abnormal temperatures are detected.
- Self-diagnostic system reports gas system status via an LED indicator.
- Durable magnesium anode rod and rust-proof drain valve enhance tank longevity.
- Suitable for installations up to 10,100 ft altitude.
- Includes an 8-year tank and parts limited warranty plus a 1-year limited labor warranty.
- Certified Lead-Free to NSF/ANSI 372 and UL Listed for safety.
