General Electric GE50T08BAM Tall Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
General Electric GE50T08BAM Tall Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
| Additional Information | : | Plastic Drain Valve, 3 to 5 People Family Size, 2-3/4 in Insulation Thickness, Direct Wired |
| Amperage Rating | : | 30 A (MCA) |
| Capacity | : | 50 gallons |
| Color | : | Gray |
| Connection Size | : | 3/4" MNPT (Water Inlet/Outlet) |
| Connection Type | : | MNPT |

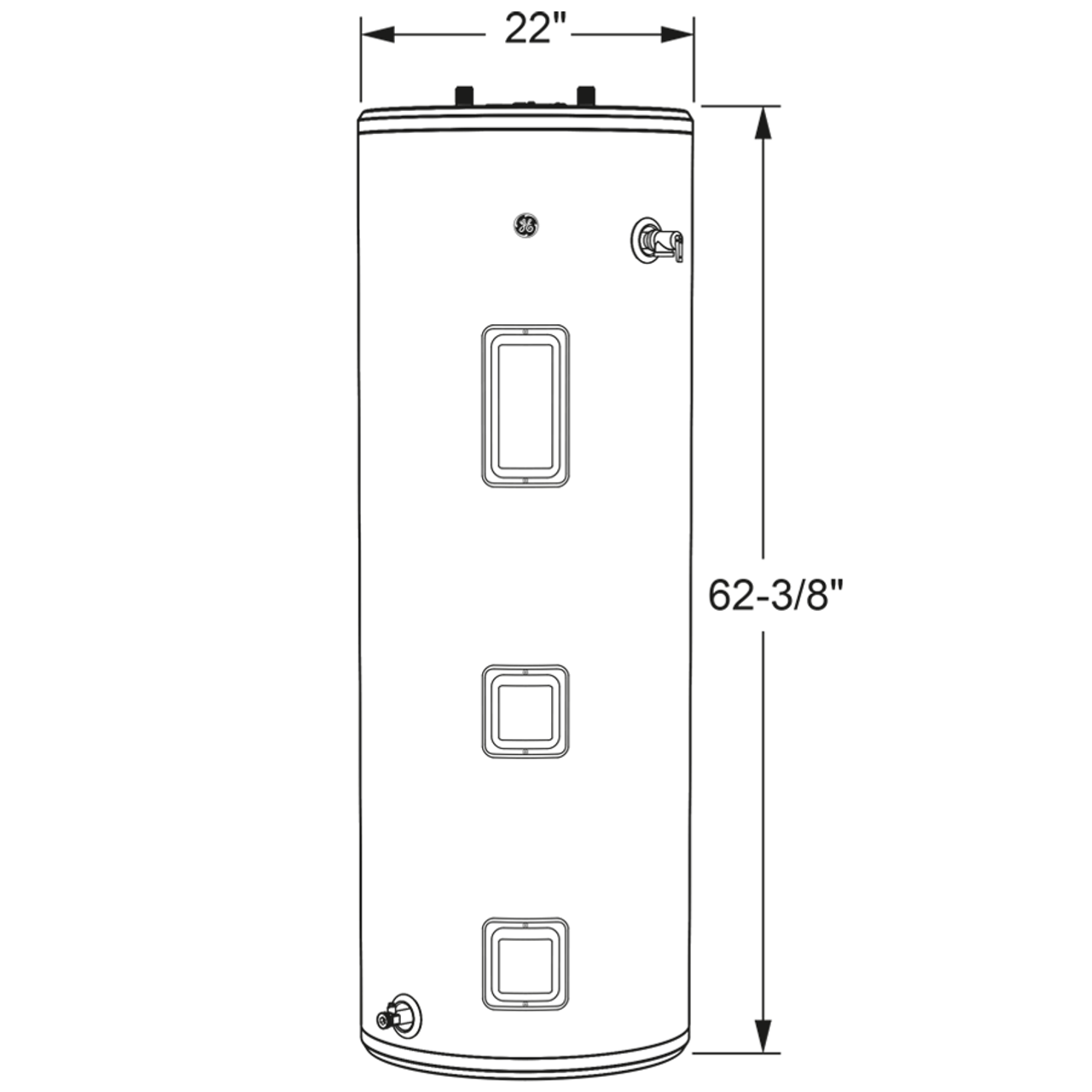

| Dimensions | : | 22" Diam x 62-3/8" H |
| Efficiency | : | 93% (UEF) |
| Element Material | : | Copper |
| Element Type | : | High Density Copper |
| Element Wattage | : | 5.5 kW (Upper), 5.5 kW (Lower) |
| Energy Factor | : | 0.93 UEF |
| First Hour Delivery | : | 76 gallons |
| Frequency Rating | : | 60 Hz |
| Fuse Size | : | 30 A (MCA) |
| Fuse Type | : | Circuit Breaker |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Copper (Heating Elements), Plastic (Drain Valve) |
| Model | : | GE50T08BAM |
| Mounting Type | : | Floor Mount |
| Number of Elements | : | 2 |
| Phase | : | 1 |
| Power Rating | : | 5,500 W (Upper), 5,500 W (Lower) |
| Pressure Rating | : | 20-125 PSI (Operating) |
| Recovery Rate | : | 25.1 GPH (At 90°F Rise) |
| Temperature Rating | : | 90-150 °F (Adjustable Setting) |
| Thermostat Type | : | Adjustable |
| Voltage Rating | : | 240 V |
| Wiring Type | : | Direct Wire |

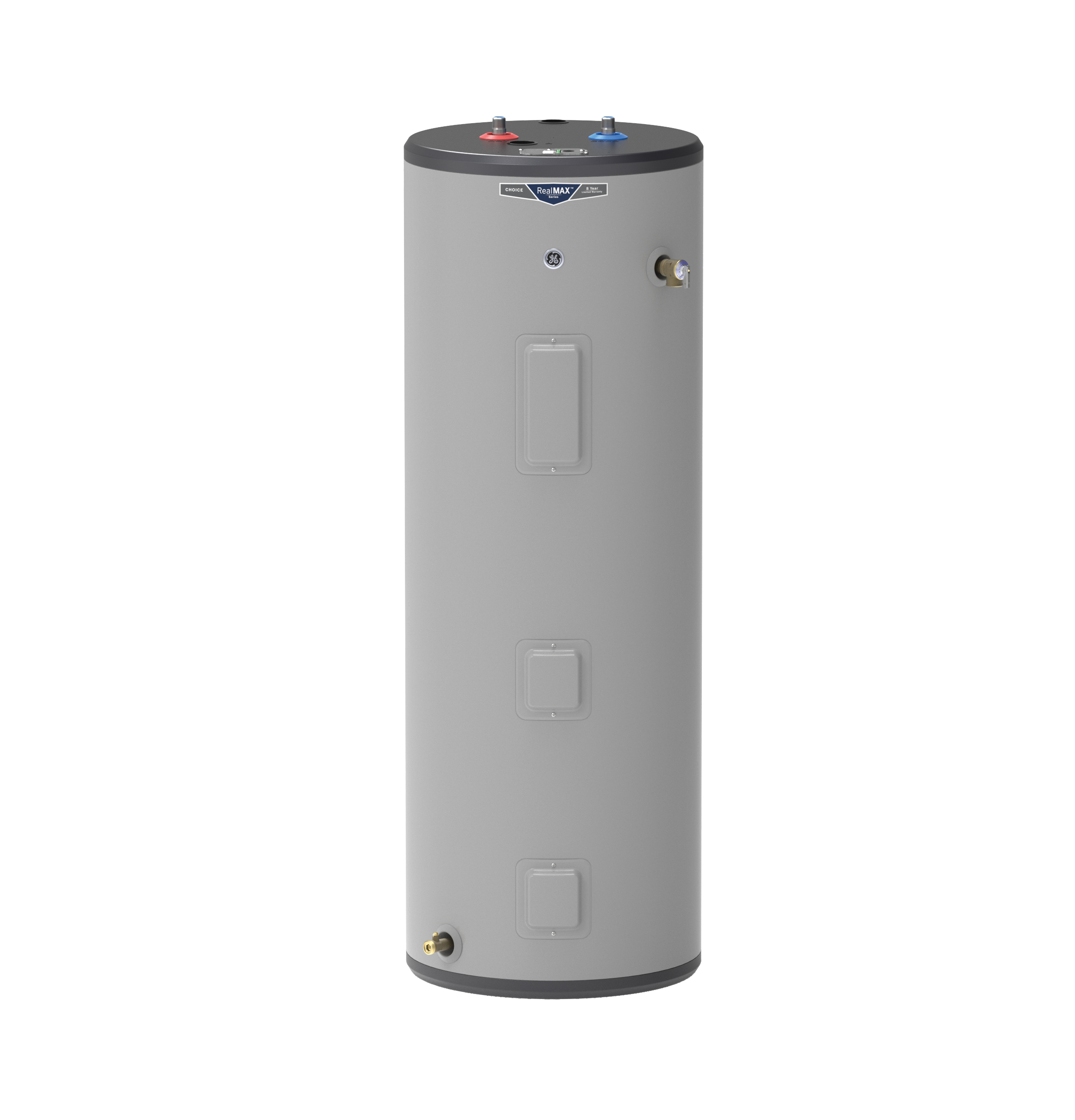

This tall electric water heater holds a true 50 gallons of water, providing ample hot water for households of 3 to 5 people. It delivers a best-in-class 76 gallons of hot water in the first hour (FHR), ensuring comfort and availability. Dual 5500W copper heating elements allow for quick recovery, rapidly increasing water temperature when needed.Designed for durability and ease of use, it features an anode rod for corrosion protection and a rust-proof drain valve. Installation is straightforward using standard water and electrical connections. An inlet tube replenishes water from the bottom of the tank to maximize hot water delivery, and the thermostat is adjustable from 90°F to 150°F.
General Electric Tall Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements, High Density Copper Element Type, Copper, Adjustable Thermostat, 90-150 °F (Adjustable Setting), MNPT Connection Type, 3/4" MNPT (Water Inlet/Outlet), 1 Phase, Floor Mount, 22" Diam x 62-3/8" H Dimensions, 20-125 PSI (Operating), Direct Wire, 30 A (MCA), Circuit Breaker, Lead-Free, Copper (Heating Elements), Plastic (Drain Valve), Gray, 60 Hz
- Holds a true 50 gallons of water, suitable for households of 3-5 people.
- Delivers 76 gallons of hot water in the first hour (FHR) to meet high demand.
- Features dual 5500W high-density copper heating elements for quick recovery.

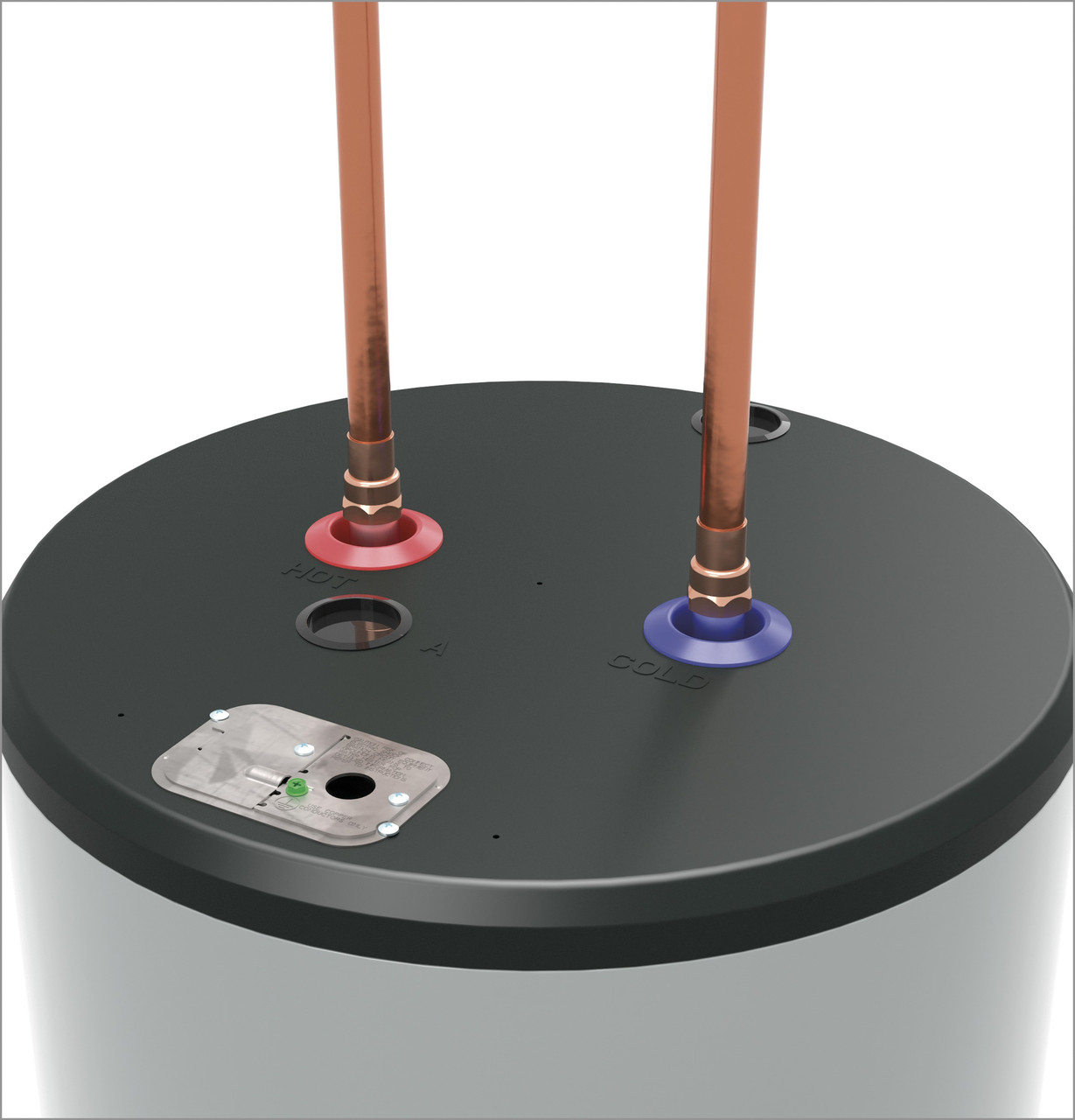

- Utilizes standard 3/4" NPT water and direct-wire electrical connections for easy replacement.
- Durable anode rod provides corrosion protection for extended tank life.
- Adjustable thermostat offers temperature settings from 90°F to 150°F.
- Certified Lead-Free (NSF/ANSI 372) and UL Listed.
- Includes an 8-year limited parts warranty and 1-year limited labor warranty.
