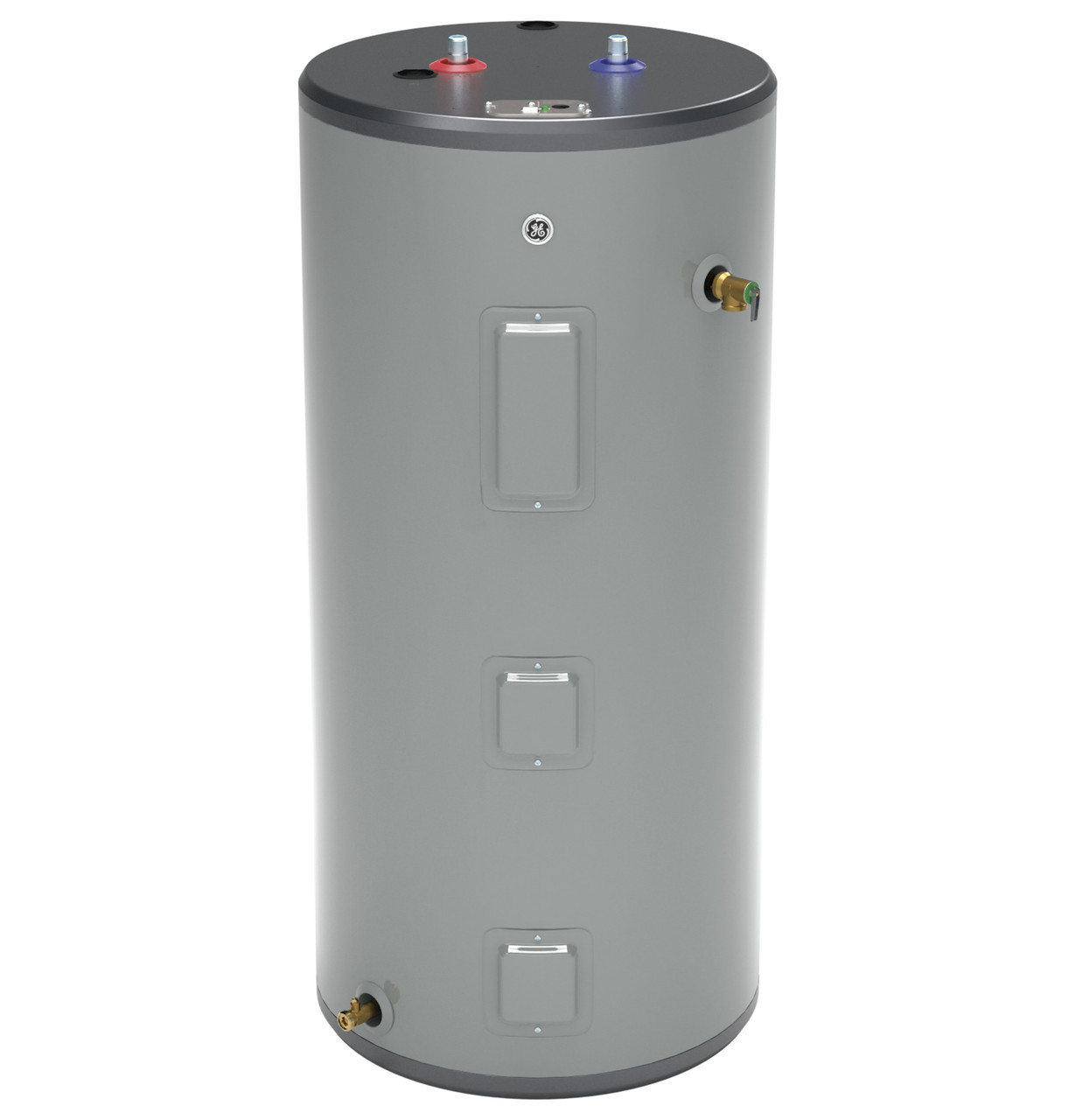

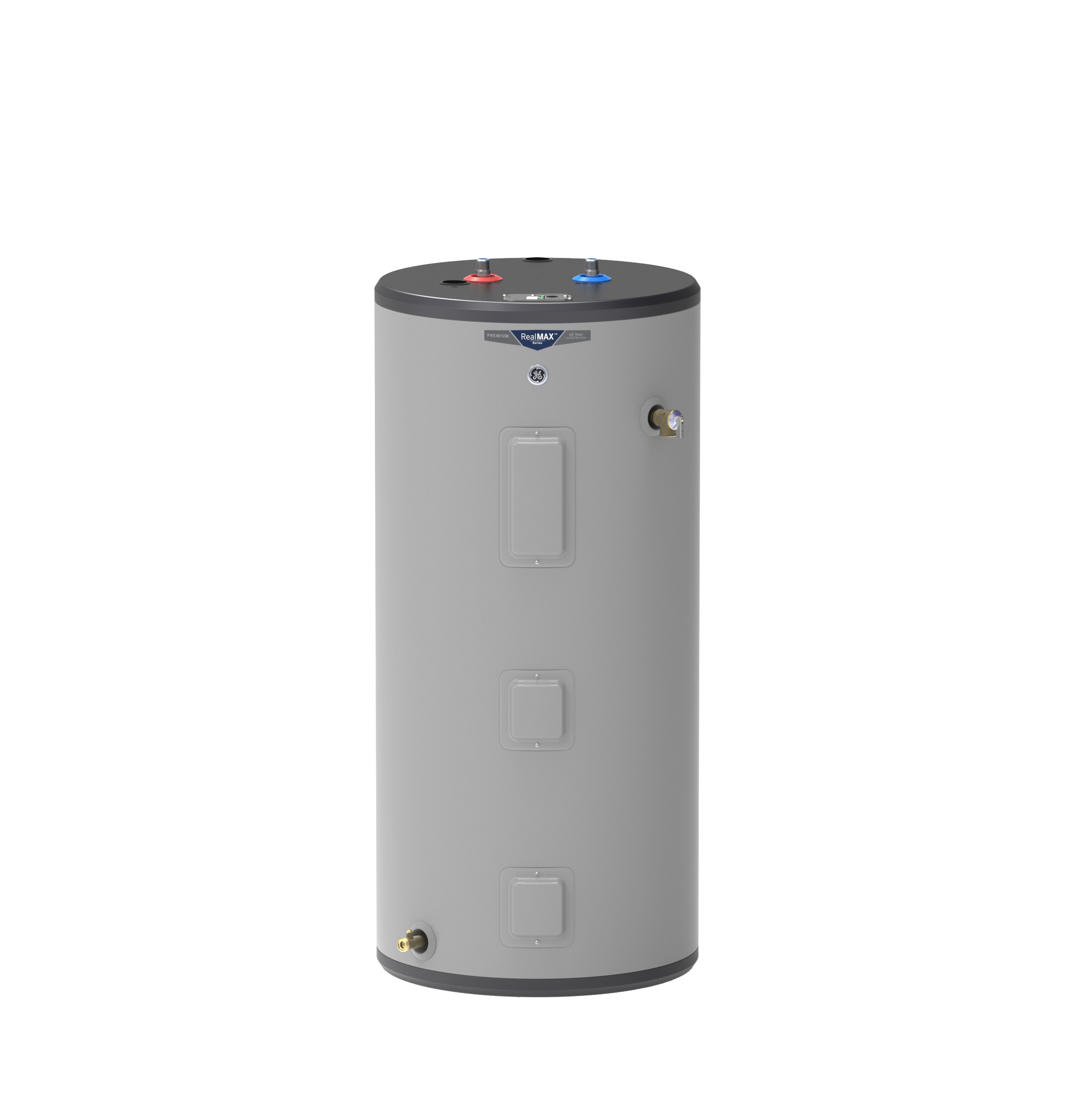

General Electric GE50S10BAM Short Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
General Electric GE50S10BAM Short Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
| Additional Information | : | 150 lb Weight |
| Amperage Rating | : | 30 A (MCA) |
| Capacity | : | 50 gallons |
| Color | : | Gray |

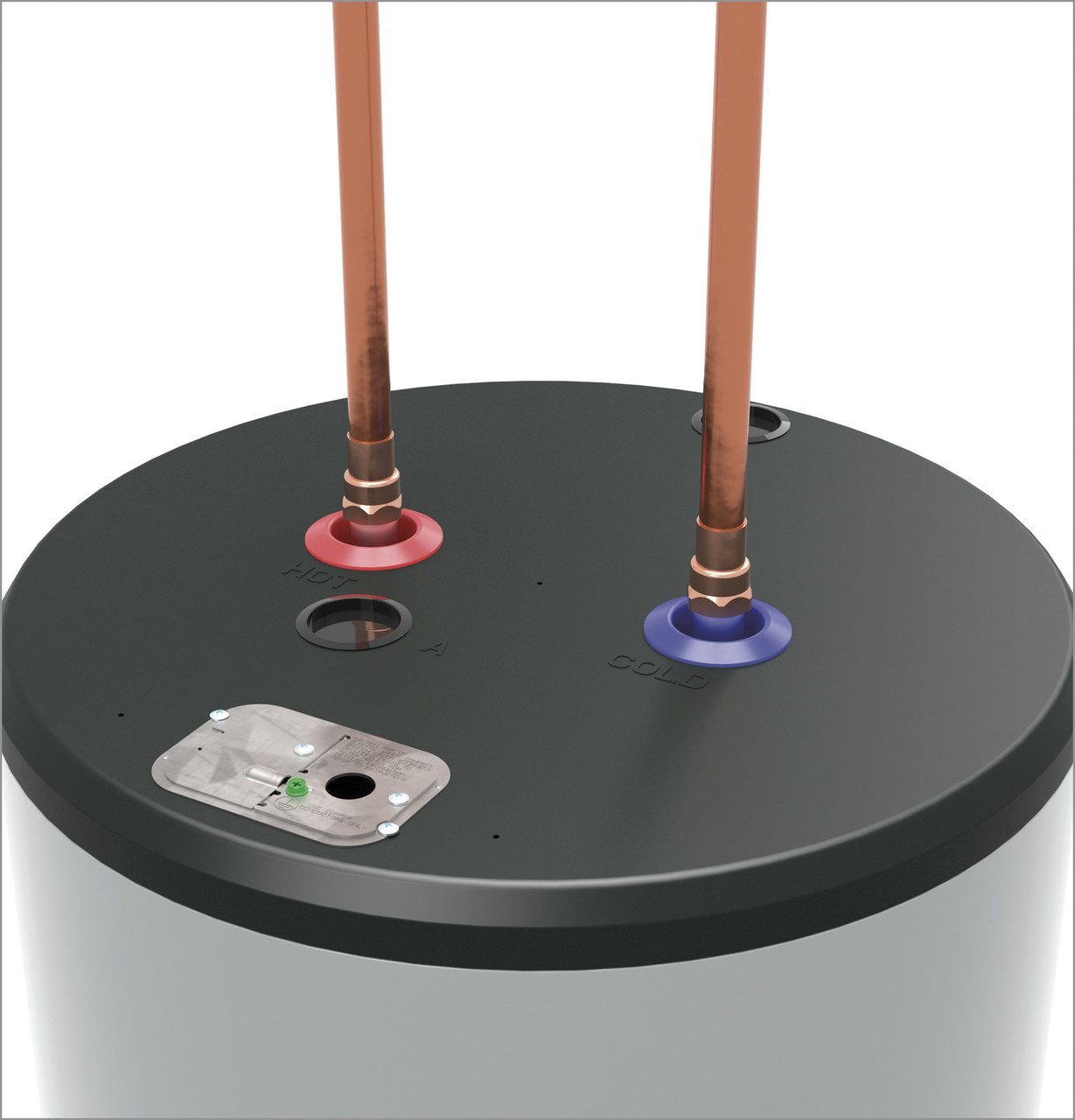

| Connection Size | : | 3/4" MNPT (Water Inlet/Outlet) |
| Connection Type | : | MNPT |

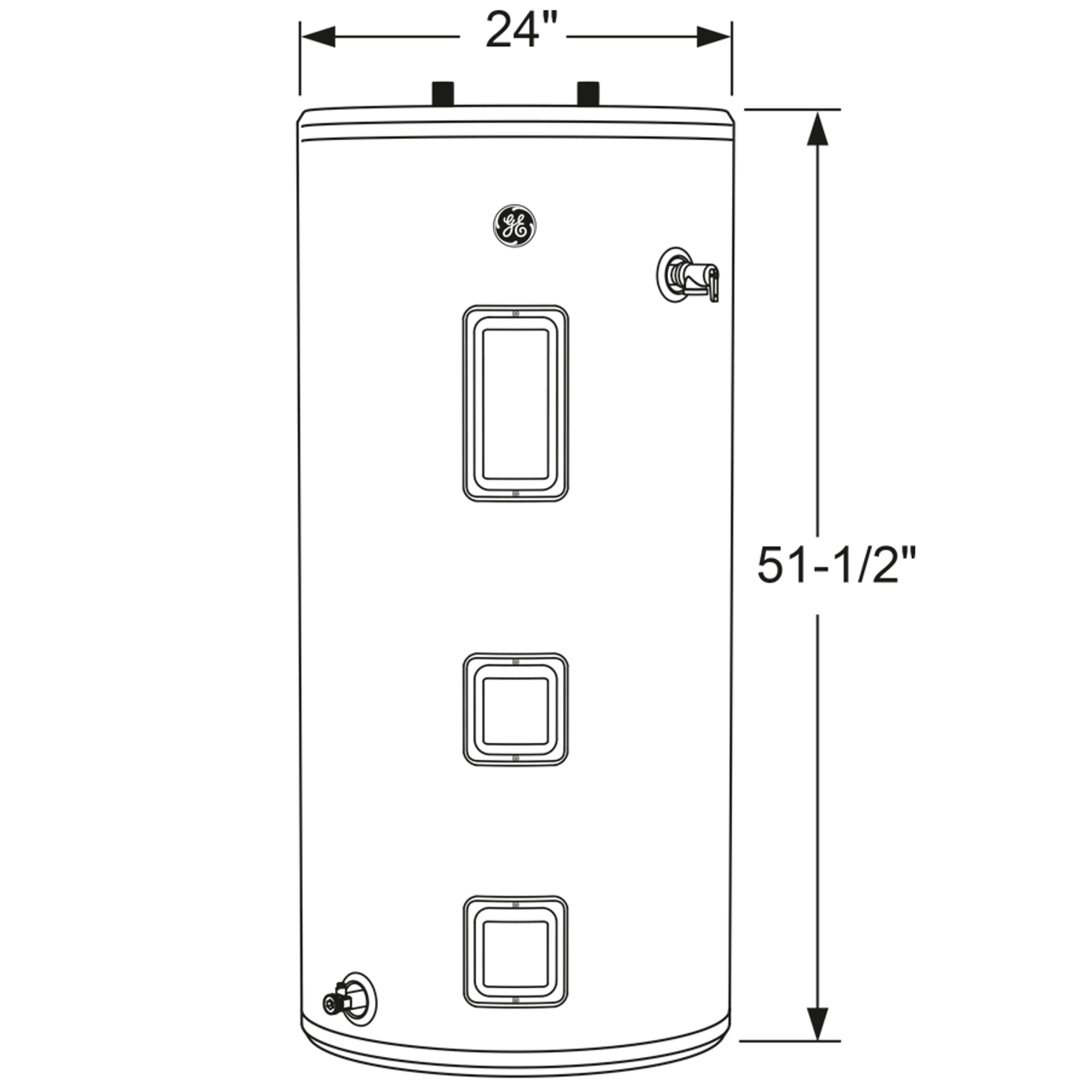

| Dimensions | : | 24" Diam x 53" H |
| Efficiency | : | 93% (UEF) |
| Element Material | : | Stainless Steel |
| Element Type | : | Low Density Stainless Steel |
| Element Wattage | : | 5.5 kW (Lower), 5.5 kW (Upper) |
| Energy Factor | : | 0.93 UEF |
| Finish | : | Gray |
| First Hour Delivery | : | 76 gallons |
| Frequency Rating | : | 60 Hz |
| Fuse Size | : | 30 A (MCA) |
| Fuse Type | : | Circuit Breaker |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Stainless Steel (Heating Elements), Brass (Drain Valve) |
| Model | : | GE50S10BAM |
| Mounting Type | : | Floor Mount |
| Number of Elements | : | 2 |
| Power Rating | : | 5,500 W (Upper), 5,500 W (Lower) |
| Pressure Rating | : | 20-125 PSI (Operating) |
| Recovery Rate | : | 25.1 GPH (At 90°F Rise) |
| Temperature Rating | : | 90-150 °F (Adjustable Setting) |
| Thermostat Type | : | Adjustable |
| Voltage (MAX) | : | 240.0 |
| Voltage Rating | : | 240 V |
| Wiring Type | : | Direct Wire |
This electric water heater offers a true 50-gallon capacity, providing ample hot water compared to similarly rated steel tank models. With a first-hour rating of 76 gallons, it comfortably serves households of 3 to 5 people. Its design focuses on performance and longevity, ensuring reliable hot water delivery when needed.Equipped with two durable 5500W stainless steel heating elements, the unit offers quick water temperature recovery and resists rust and corrosion. Features like a bottom-feed inlet tube to maximize hot water output, a rust-proof brass drain valve for lasting service, and an adjustable thermostat enhance its functionality. Installation is straightforward using standard water and electrical connections.
General Electric Short Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements, Low Density Stainless Steel Element Type, Stainless Steel, Adjustable Thermostat, 90-150 °F (Adjustable Setting), MNPT Connection Type, 3/4" MNPT (Water Inlet/Outlet), Floor Mount, 24" Diam x 53" H Dimensions, 20-125 PSI (Operating), Direct Wire, 30 A (MCA), Circuit Breaker, Lead-Free, Stainless Steel (Heating Elements), Brass (Drain Valve), Gray, 60 Hz
- Provides a true 50-gallon storage capacity for reliable hot water supply.
- Delivers 76 gallons of hot water in the first hour, suitable for families of 3-5.
- Features two 5500W stainless steel heating elements for fast recovery and corrosion resistance.

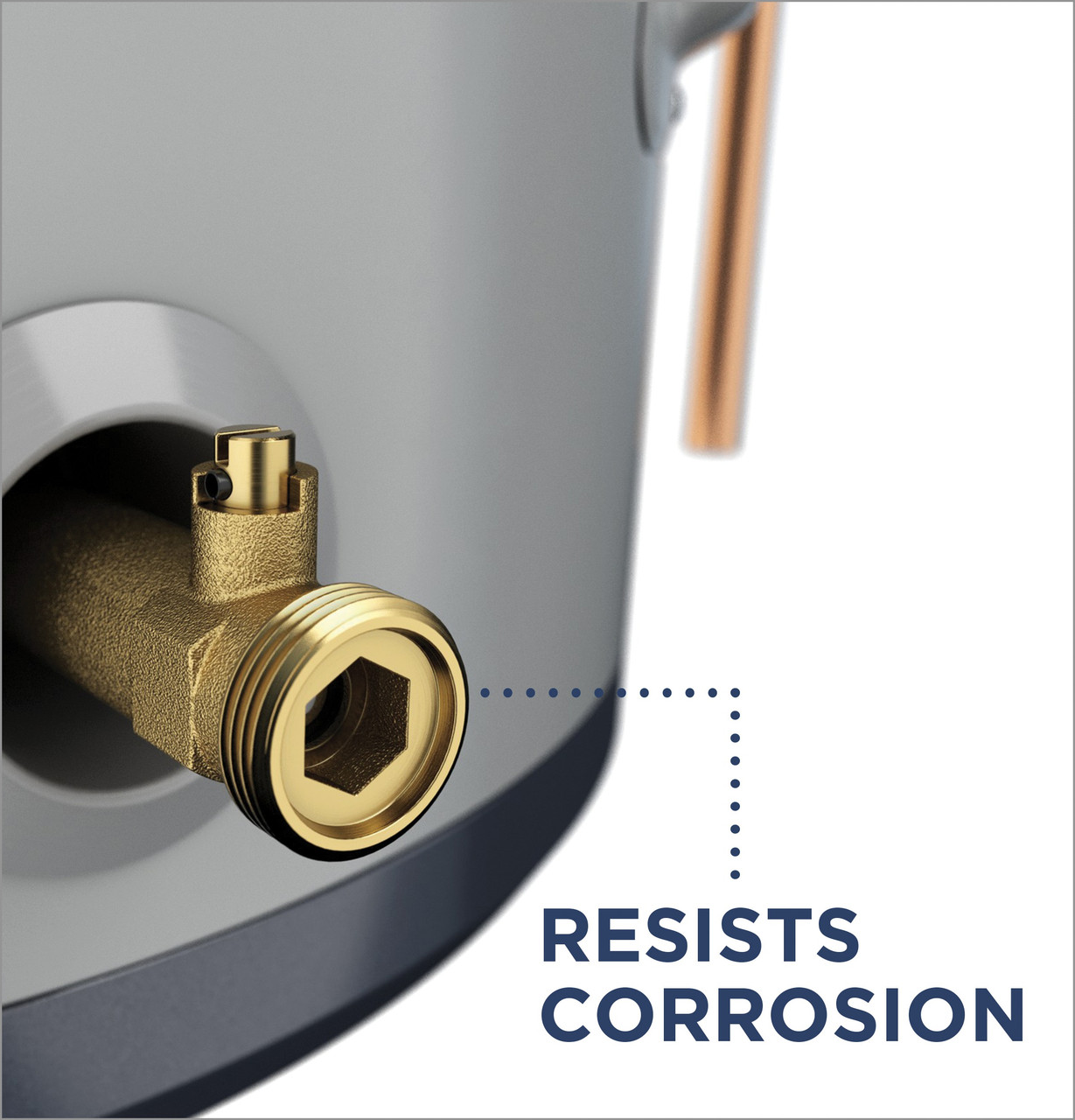

- Includes a durable, rust-proof brass drain valve.
- Adjustable thermostat allows temperature settings between 90°F and 150°F.
- UL Listed and certified to NSF/ANSI 372 for safety and lead-free compliance.
- Covered by a 10-year limited parts warranty.
