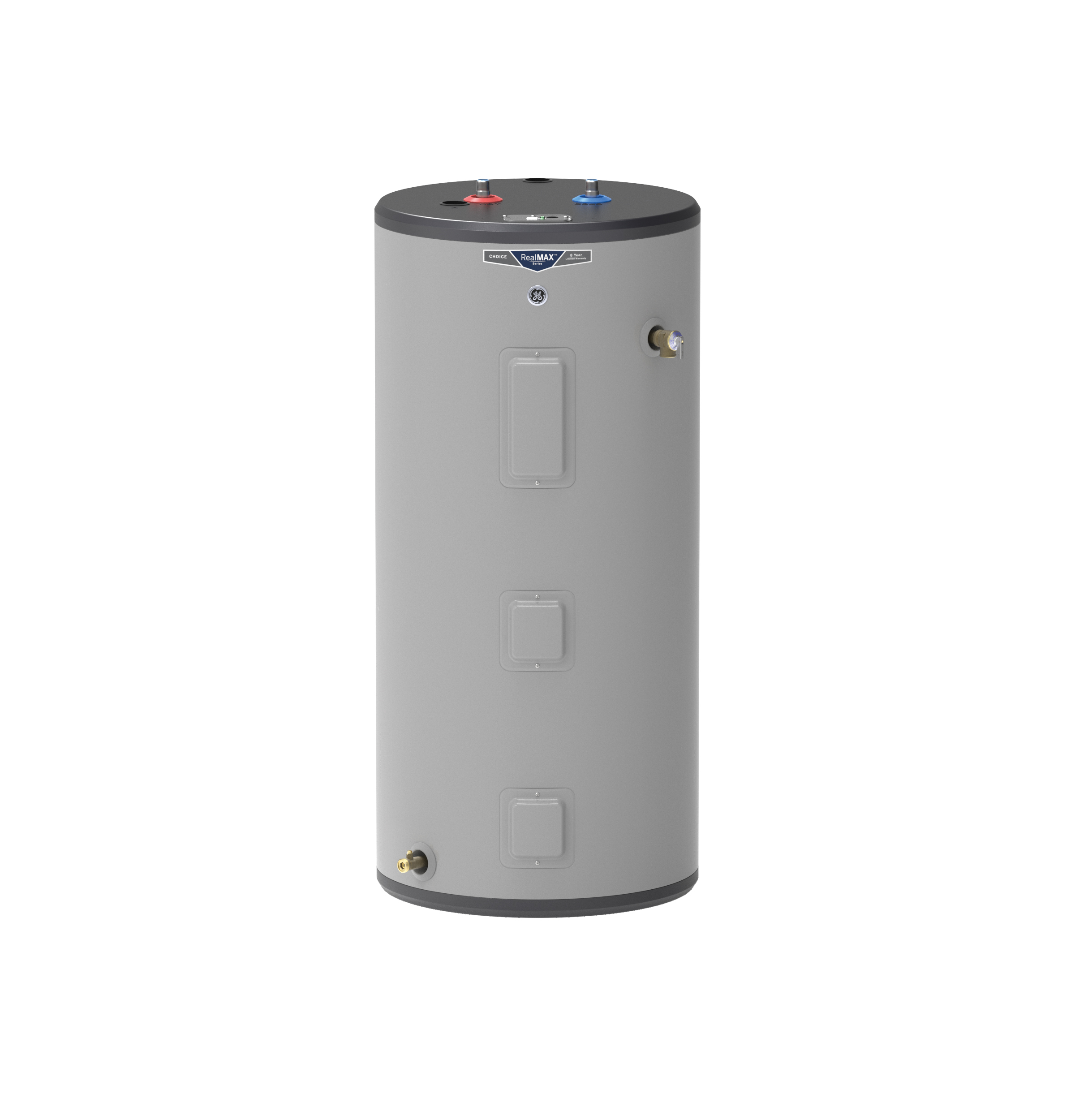

General Electric GE50S08BAM Short Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
General Electric GE50S08BAM Short Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
| Amperage Rating | : | 30 A (MCA) |
| Capacity | : | 50 gallons |
| Color | : | Gray |
| Connection Size | : | 3/4" MNPT (Water Inlet/Outlet) |
| Connection Type | : | MNPT |

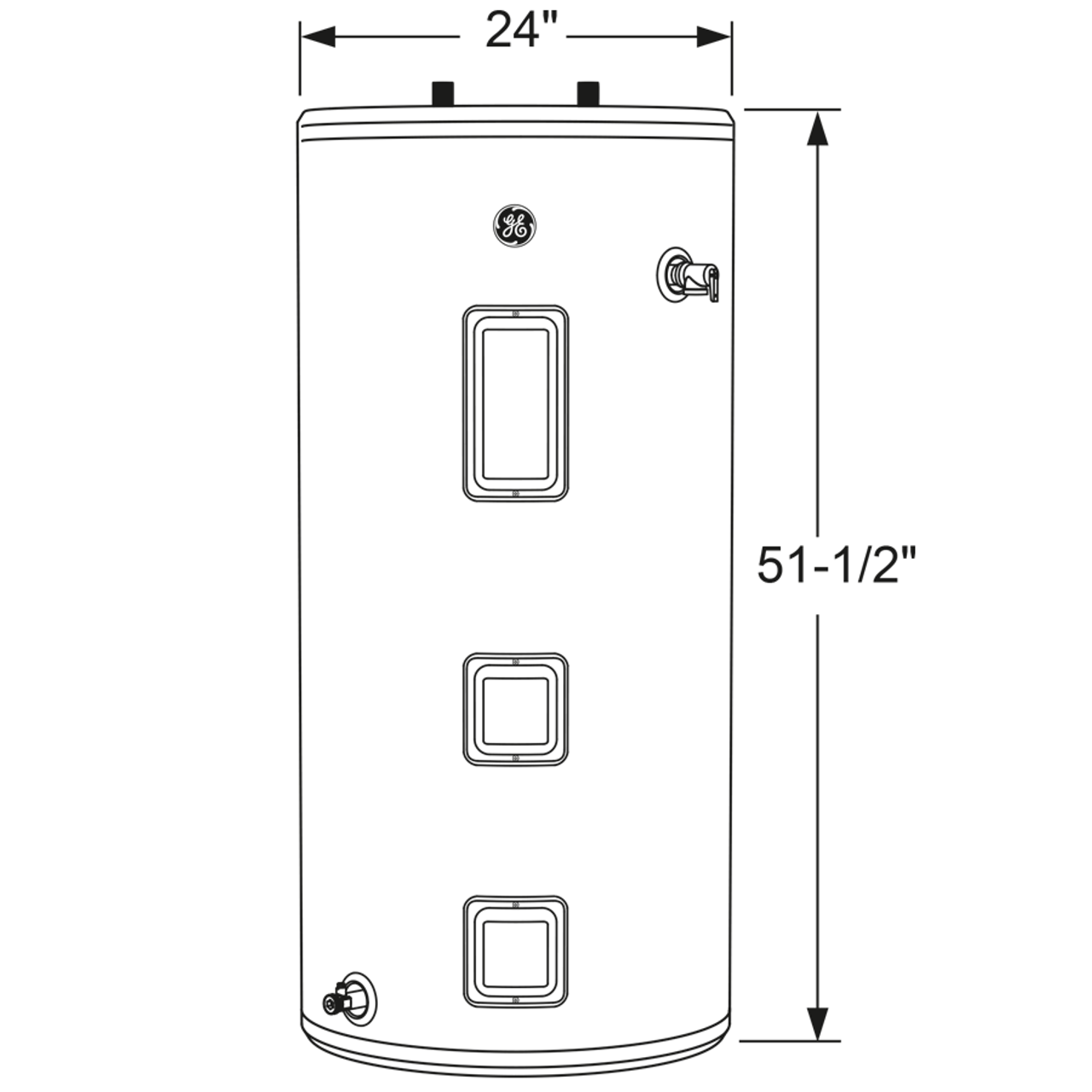

| Dimensions | : | 24" Diam x 53" H |
| Efficiency | : | 93% (UEF) |
| Element Material | : | Copper |
| Element Type | : | High Density Copper |
| Element Wattage | : | 5.5 kW (Upper), 5.5 kW (Lower) |
| Energy Factor | : | 0.93 UEF |
| First Hour Delivery | : | 76 gallons |
| Frequency Rating | : | 60 Hz |
| Fuse Size | : | 30 A (MCA) |
| Fuse Type | : | Circuit Breaker |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Copper (Heating Elements), Plastic (Drain Valve) |
| Model | : | GE50S08BAM |
| Mounting Type | : | Floor Mount |
| Number of Elements | : | 2 |
| Power Rating | : | 5,500 W (Upper), 5,500 W (Lower) |
| Pressure Rating | : | 20-125 PSI (Operating) |
| Recovery Rate | : | 25.1 GPH (At 90°F Rise) |
| Temperature Rating | : | 90-150 °F (Adjustable Setting) |
| Thermostat Type | : | Adjustable |
| Voltage Rating | : | 240 V |
| Wiring Type | : | Direct Wire |
Get the most hot showers from the only water heater that holds a true 50 gallons of water (Compared to 50 gallon electric steel tank water heaters per DOE rated gallon capacity). Live comfortably with this best in class unit that delivers 76 gallons of hot water in the first hour (Measured through DOE First Hour Rating).Provide hot water for the whole family of 3 to 5 persons. Two 5500W heating elements quickly increase water temperature for hot water when you need it. The inlet tube replenishes water from the bottom of the tank to maximize hot water delivery. Replace your old water heater quickly and easily using standard water and electrical connections. The durable anode rod offers long-lasting protection against corrosion, and the rust-proof drain valve provides long-lasting service. An adjustable thermostat allows you to change the temperature to your desired setting.
General Electric Short Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements, High Density Copper Element Type, Copper, Adjustable Thermostat, 90-150 °F (Adjustable Setting), MNPT Connection Type, 3/4" MNPT (Water Inlet/Outlet), Floor Mount, 24" Diam x 53" H Dimensions, 20-125 PSI (Operating), Direct Wire, 30 A (MCA), Circuit Breaker, Lead-Free, Copper (Heating Elements), Plastic (Drain Valve), Gray, 60 Hz
- Holds a true 50 gallons of water for reliable capacity.
- Delivers an impressive 76 gallons of hot water in the first hour (FHR).
- Features dual 5500W copper heating elements for quick recovery.
- Includes an adjustable thermostat with a 90°F to 150°F range.
- Anode rod provides durable tank protection against corrosion.

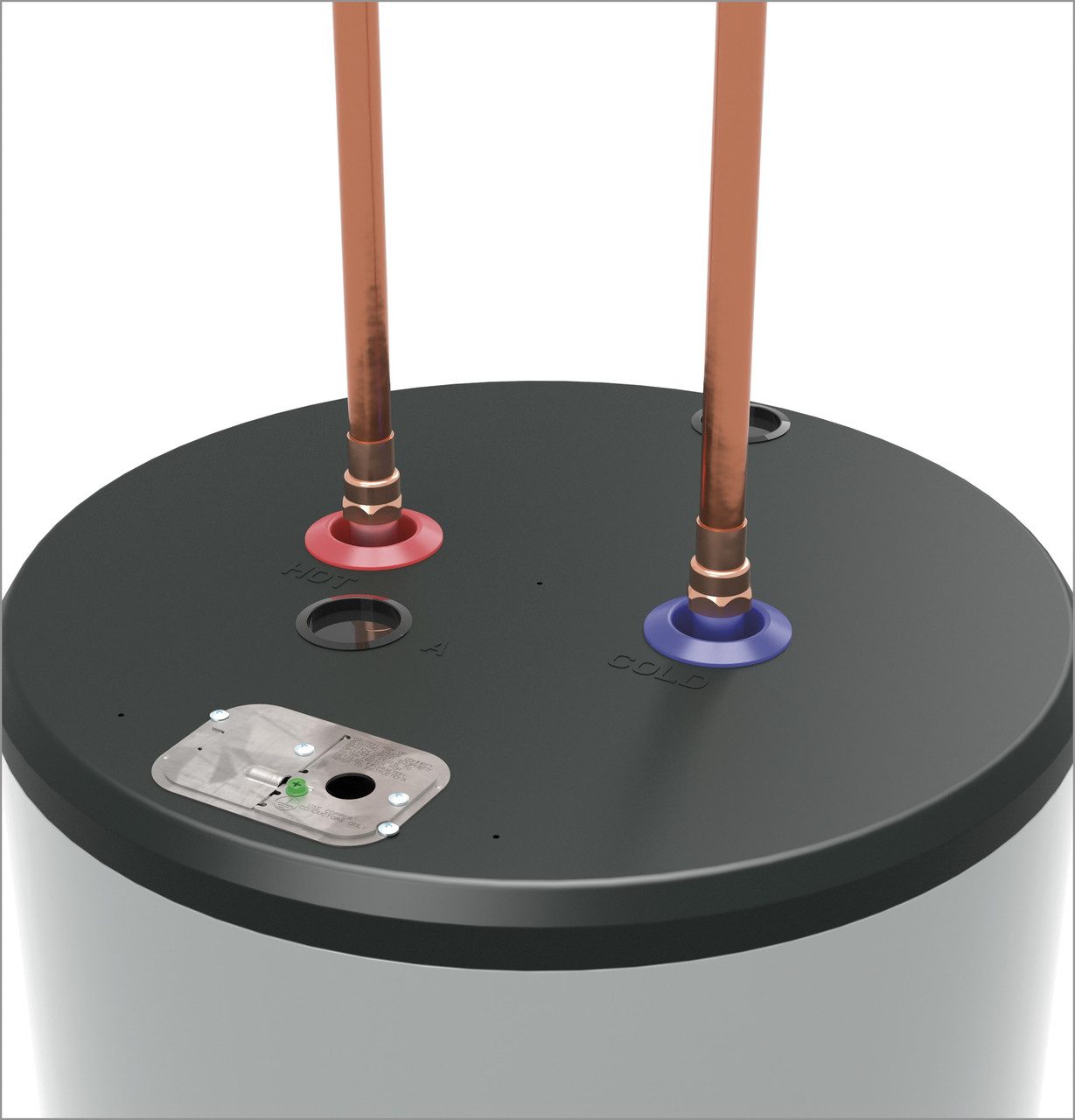

- Utilizes standard water and electrical connections for straightforward installation.
- Comes with an 8-year limited parts warranty and a 1-year limited labor warranty.
- Certified to UL and NSF/ANSI 372 standards.
