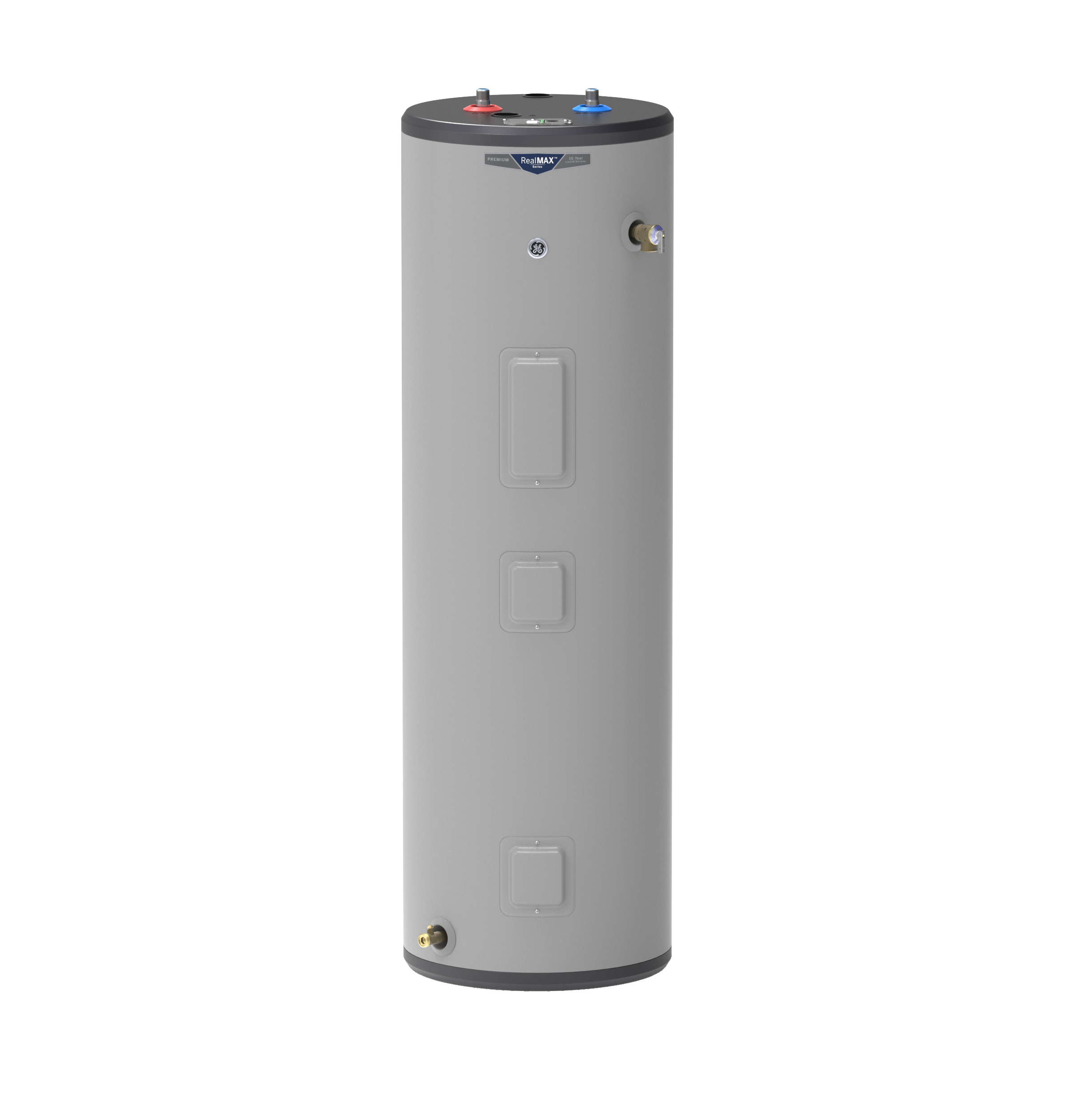

General Electric GE40T10BAM Tall Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 65 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
General Electric GE40T10BAM Tall Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 65 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
| Additional Information | : | 127 lb Weight |
| Amperage Rating | : | 30 A (MCA) |
| Capacity | : | 40 gallons |
| Color | : | Gray |

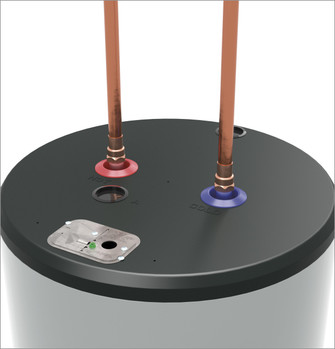

| Connection Size | : | 3/4" MNPT (Water Inlet/Outlet) |
| Connection Type | : | MNPT |
| Dimensions | : | 20" Diam x 65-1/2" H |
| Efficiency | : | 92% (UEF) |
| Element Material | : | Stainless Steel |
| Element Type | : | Low Density Stainless Steel |
| Element Wattage | : | 5.5 kW (Upper), 5.5 kW (Lower) |
| Energy Factor | : | 0.92 UEF |
| Finish | : | Gray |
| First Hour Delivery | : | 65 gallons |
| Frequency Rating | : | 60 Hz |
| Fuse Size | : | 30 A (MCA) |
| Fuse Type | : | Circuit Breaker |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Stainless Steel (Heating Elements), Brass (Drain Valve) |
| Model | : | GE40T10BAM |
| Mounting Type | : | Floor Mount |
| Number of Elements | : | 2 |
| Power Rating | : | 5,500 W (Upper), 5,500 W (Lower) |
| Pressure Rating | : | 20-125 PSI (Operating) |
| Recovery Rate | : | 25.1 GPH (At 90°F Rise) |
| Temperature Rating | : | 90-150 °F (Adjustable Setting) |
| Thermostat Type | : | Adjustable |
| Voltage (MAX) | : | 240.0 |
| Voltage Rating | : | 240 V |
| Wiring Type | : | Direct Wire |
This tall electric water heater provides a reliable supply of hot water with a true 40-gallon capacity, suitable for households of 2 to 4 people. Dual 5500W heating elements ensure quick recovery, delivering 65 gallons of hot water in the first hour (FHR). Standard water and electrical connections facilitate straightforward installation and replacement of existing units.Durability features include rust-resistant stainless steel heating elements and a rust-proof brass drain valve. The unit maximizes hot water delivery by replenishing water from the bottom via an inlet tube. An adjustable thermostat allows temperature settings between 90°F and 150°F.
General Electric Tall Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 65 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements, Low Density Stainless Steel Element Type, Stainless Steel, Adjustable Thermostat, 90-150 °F (Adjustable Setting), MNPT Connection Type, 3/4" MNPT (Water Inlet/Outlet), Floor Mount, 20" Diam x 65-1/2" H Dimensions, 20-125 PSI (Operating), Direct Wire, 30 A (MCA), Circuit Breaker, Lead-Free, Stainless Steel (Heating Elements), Brass (Drain Valve), Gray, 60 Hz
- Provides a true 40-gallon capacity suitable for households of 2-4 people.
- Delivers 65 gallons of hot water during the first hour (FHR).
- Dual 5500W stainless steel heating elements ensure rapid recovery and resist corrosion.
- Features a durable, rust-proof brass drain valve for extended service life.
- Adjustable thermostat allows temperature settings from 90°F to 150°F.
- UL Listed and certified to NSF/ANSI 372 for safety and lead-free compliance.
- Includes a 10-year limited parts warranty and 1-year limited labor warranty.
