General Electric GE40T08BAM Tall Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 65 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
General Electric GE40T08BAM Tall Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 65 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
| Additional Information | : | Plastic Drain Valve, 2 to 4 People Family Size, 2-3/4 in Insulation Thickness, Direct Wired |
| Amperage Rating | : | 30 A (MCA) |
| Capacity | : | 40 gallons |
| Color | : | Gray |

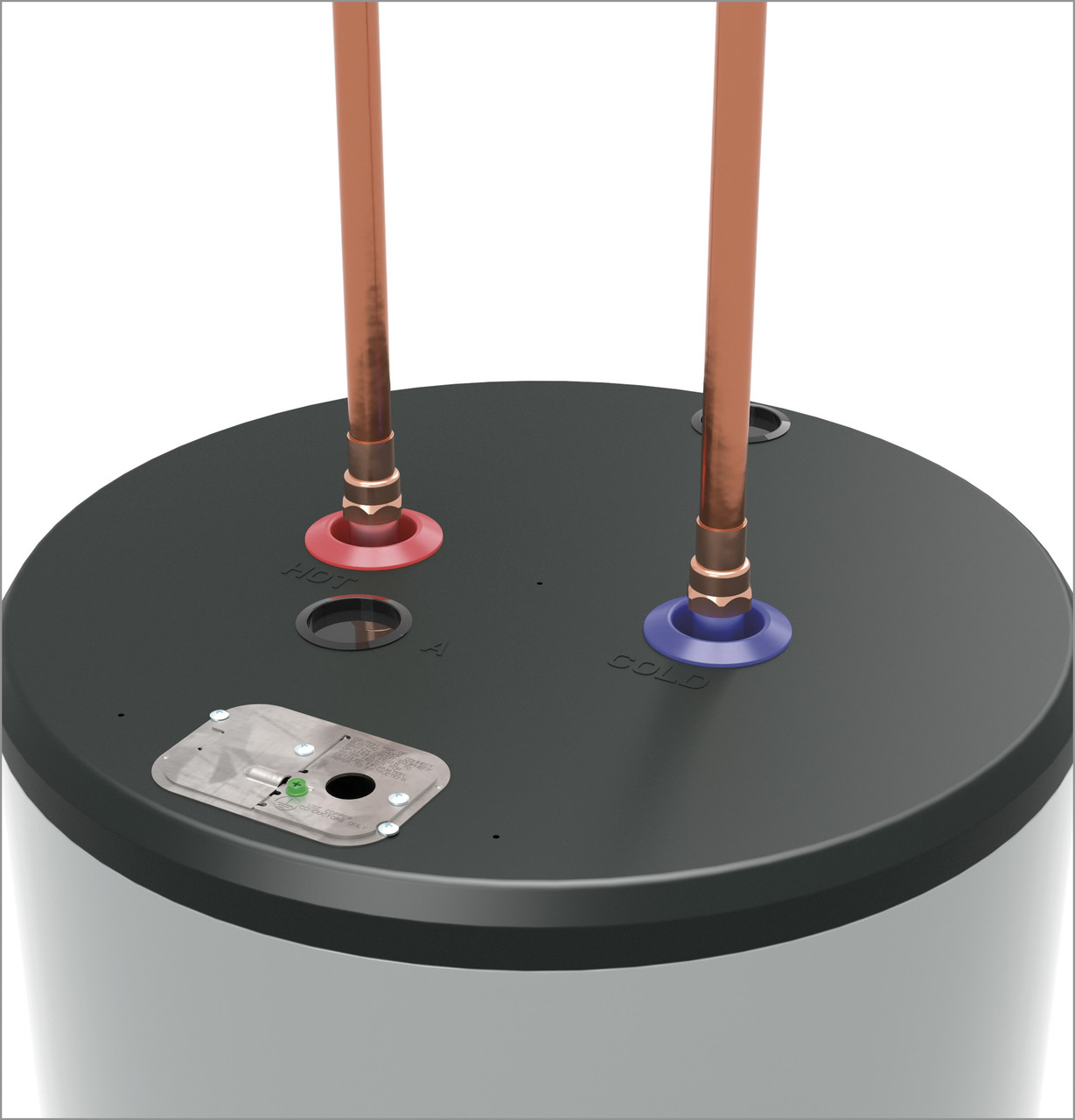

| Connection Size | : | 3/4" MNPT (Water Inlet/Outlet) |
| Connection Type | : | MNPT |
| Dimensions | : | 20" Diam x 65-1/2" H |
| Efficiency | : | 92% (UEF) |
| Element Material | : | Copper |
| Element Type | : | High Density Copper |
| Element Wattage | : | 5.5 kW (Upper), 5.5 kW (Lower) |
| Energy Factor | : | 0.92 UEF |
| First Hour Delivery | : | 65 gallons |
| Frequency Rating | : | 60 Hz |
| Fuse Size | : | 30 A (MCA) |
| Fuse Type | : | Circuit Breaker |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Copper (Heating Elements), Plastic (Drain Valve) |
| Model | : | GE40T08BAM |
| Mounting Type | : | Floor Mount |
| Number of Elements | : | 2 |
| Phase | : | 1 |
| Power Rating | : | 5,500 W (Upper), 5,500 W (Lower) |
| Pressure Rating | : | 20-125 PSI (Operating) |
| Recovery Rate | : | 25.1 GPH (At 90°F Rise) |
| Temperature Rating | : | 90-150 °F (Adjustable Setting) |
| Thermostat Type | : | Adjustable |
| Voltage Rating | : | 240 V |
| Wiring Type | : | Direct Wire |
This tall electric water heater offers a true 40-gallon capacity, suitable for supplying hot water to families of 2 to 4 people. Equipped with dual 5500W copper heating elements, it ensures rapid temperature recovery and delivers a best-in-class 65 gallons in the first hour.Installation is straightforward thanks to standard water and electrical hookups. Long-term reliability is enhanced by a corrosion-resistant anode rod and a rust-proof drain valve, while an adjustable thermostat allows users to set temperatures from 90°F to 150°F.
General Electric Tall Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 65 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements, High Density Copper Element Type, Copper, Adjustable Thermostat, 90-150 °F (Adjustable Setting), MNPT Connection Type, 3/4" MNPT (Water Inlet/Outlet), 1 Phase, Floor Mount, 20" Diam x 65-1/2" H Dimensions, 20-125 PSI (Operating), Direct Wire, 30 A (MCA), Circuit Breaker, Lead-Free, Copper (Heating Elements), Plastic (Drain Valve), Gray, 60 Hz
- Provides a true 40-gallon capacity suitable for households of 2-4 people.
- Delivers 65 gallons of hot water in the first hour (FHR) for peak demand periods.
- Features dual 5500W copper heating elements for quick recovery and long life.
- Uses standard water and electrical connections for straightforward replacement installations.
- Includes a durable anode rod and rust-proof drain valve for enhanced tank protection and serviceability.
- Offers an adjustable thermostat with a temperature range of 90°F to 150°F.
- Covered by an 8-year limited parts warranty and a 1-year limited labor warranty.
