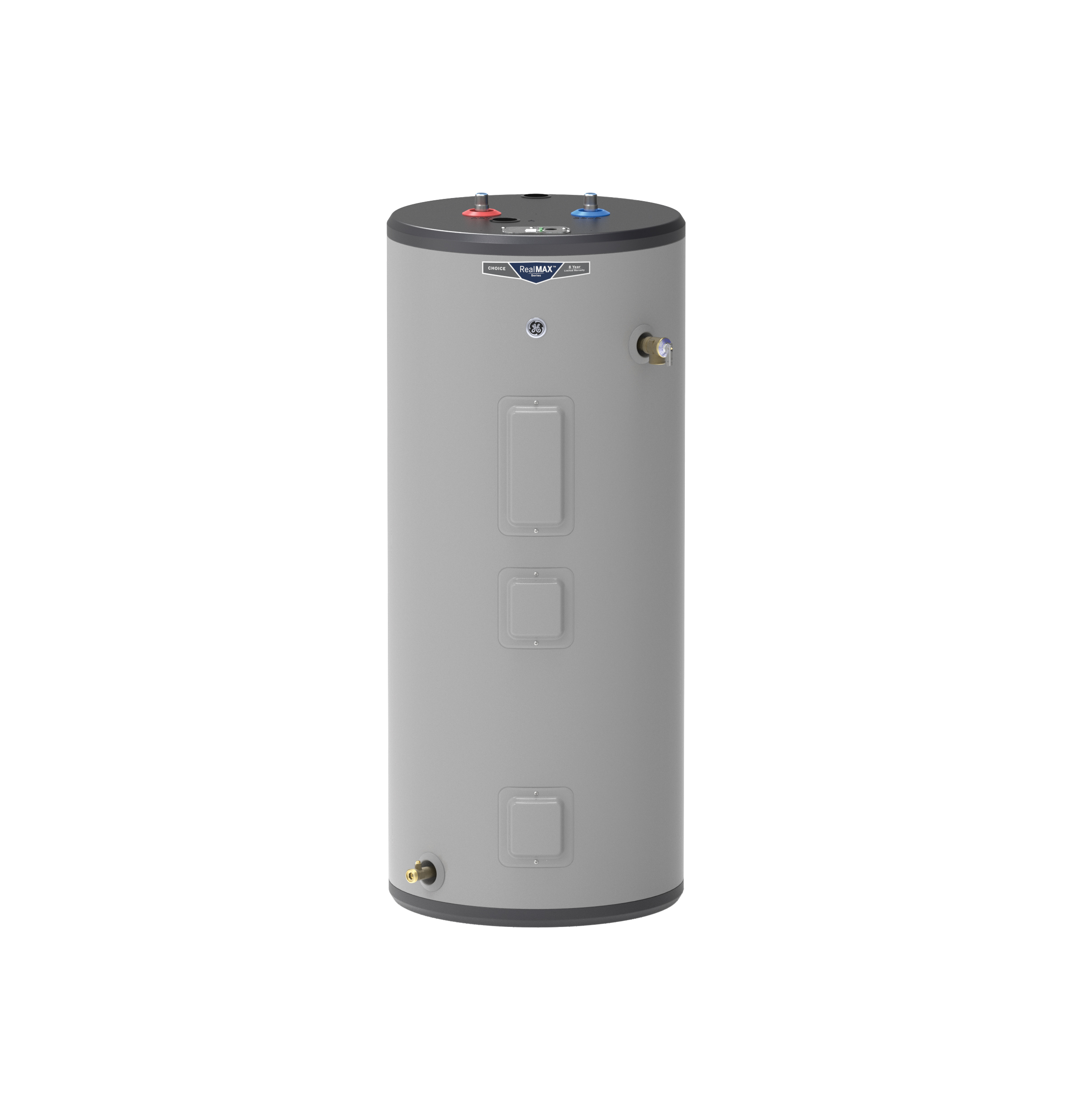

General Electric GE40S08BAM Short Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 66 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
General Electric GE40S08BAM Short Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 66 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
| Amperage Rating | : | 30 A (MCA) |
| Capacity | : | 40 gallons |
| Color | : | Gray |
| Connection Size | : | 3/4" MNPT (Water Inlet/Outlet) |
| Connection Type | : | MNPT |

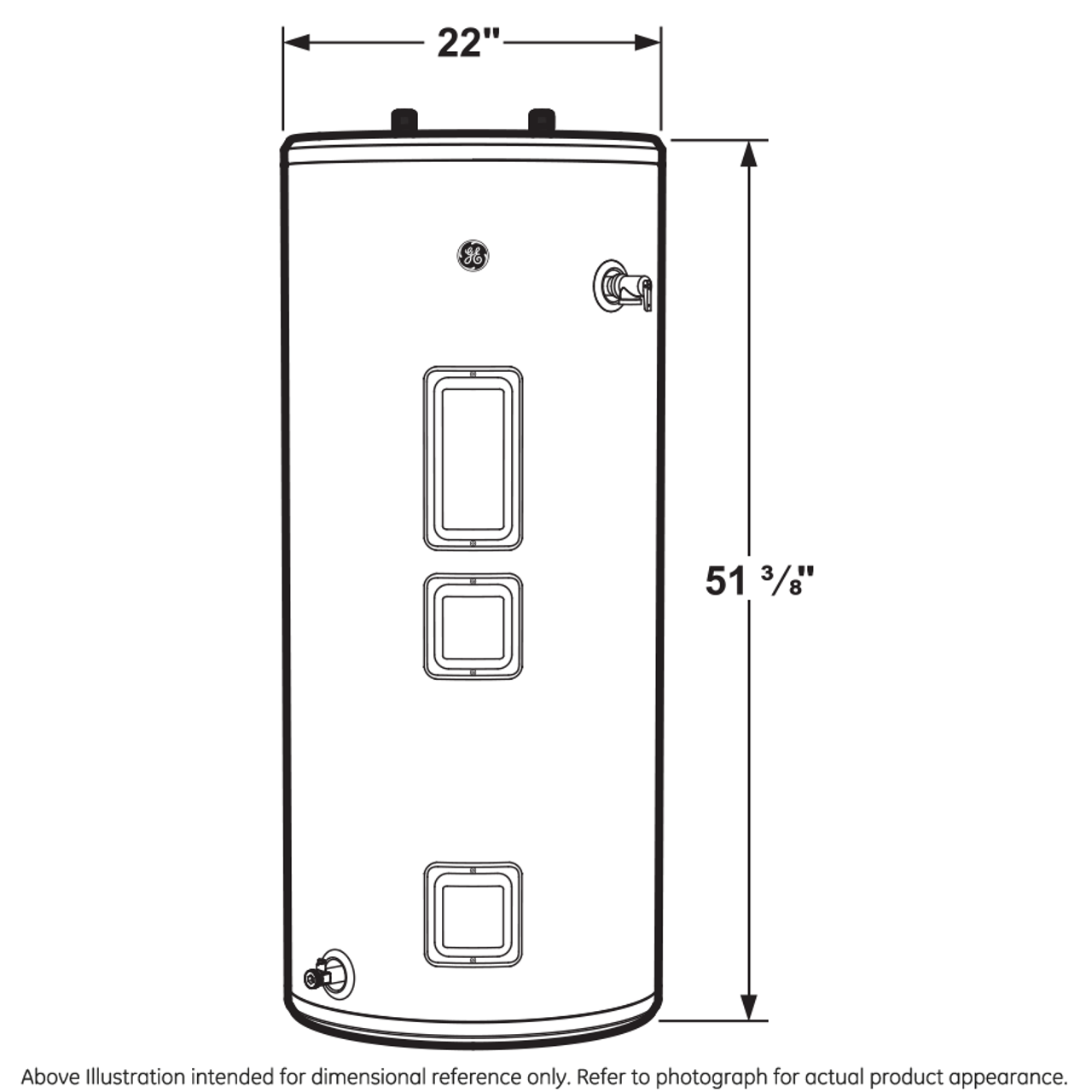

| Dimensions | : | 22" Diam x 51-3/8" H |
| Efficiency | : | 92% (UEF) |
| Element Material | : | Copper |
| Element Type | : | High Density Copper |
| Element Wattage | : | 5.5 kW (Upper), 5.5 kW (Lower) |
| Energy Factor | : | 0.92 UEF |
| First Hour Delivery | : | 66 gallons |
| Frequency Rating | : | 60 Hz |
| Fuse Size | : | 30 A (MCA) |
| Fuse Type | : | Circuit Breaker |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Copper (Heating Elements), Plastic (Drain Valve) |
| Model | : | GE40S08BAM |
| Mounting Type | : | Floor Mount |
| Number of Elements | : | 2 |
| Power Rating | : | 5,500 W (Upper), 5,500 W (Lower) |
| Pressure Rating | : | 20-125 PSI (Operating) |
| Recovery Rate | : | 25.1 GPH (At 90°F Rise) |
| Temperature Rating | : | 90-150 °F (Adjustable Setting) |
| Thermostat Type | : | Adjustable |
| Voltage Rating | : | 240 V |
| Wiring Type | : | Direct Wire |
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity). Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating). Provide hot water for the whole family of 2 to 4 persons.Two 5500W heating elements quickly increase water temperature for hot water when you need it. Replenishes water from the bottom of the tank to maximize hot water delivery. Replace your old water heater quickly and easily using standard water and electrical connections. Durable anode rod design offers long-lasting protection against corrosion, and the rust-proof drain valve construction can be counted on to provide long-lasting service. Change temperature to your desired setting with the adjustable thermostat.
General Electric Short Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 66 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements, High Density Copper Element Type, Copper, Adjustable Thermostat, 90-150 °F (Adjustable Setting), MNPT Connection Type, 3/4" MNPT (Water Inlet/Outlet), Floor Mount, 22" Diam x 51-3/8" H Dimensions, 20-125 PSI (Operating), Direct Wire, 30 A (MCA), Circuit Breaker, Lead-Free, Copper (Heating Elements), Plastic (Drain Valve), Gray, 60 Hz
- Provides a true 40-gallon capacity for ample hot water supply.
- Delivers a high First Hour Rating (FHR) of 66 gallons.
- Dual 5500W high-density copper heating elements ensure fast recovery times.
- Adjustable thermostat provides temperature control from 90°F to 150°F.

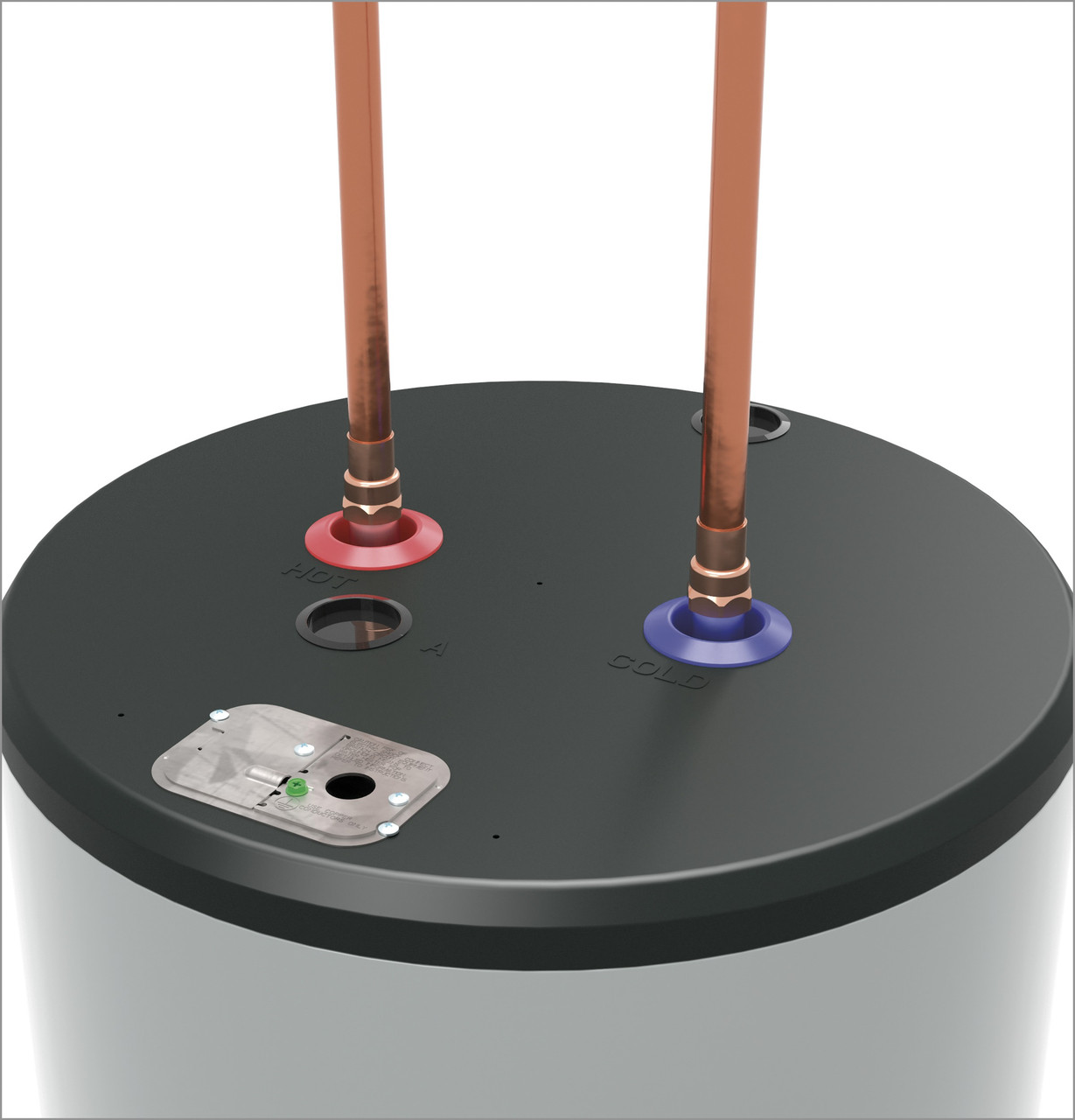

- Features standard direct-wire electrical and 3/4" MNPT water connections for straightforward installation.
- Includes a durable anode rod and rust-proof plastic drain valve for longevity.
- Covered by an 8-year limited parts warranty and certified lead-free (NSF/ANSI 372).
