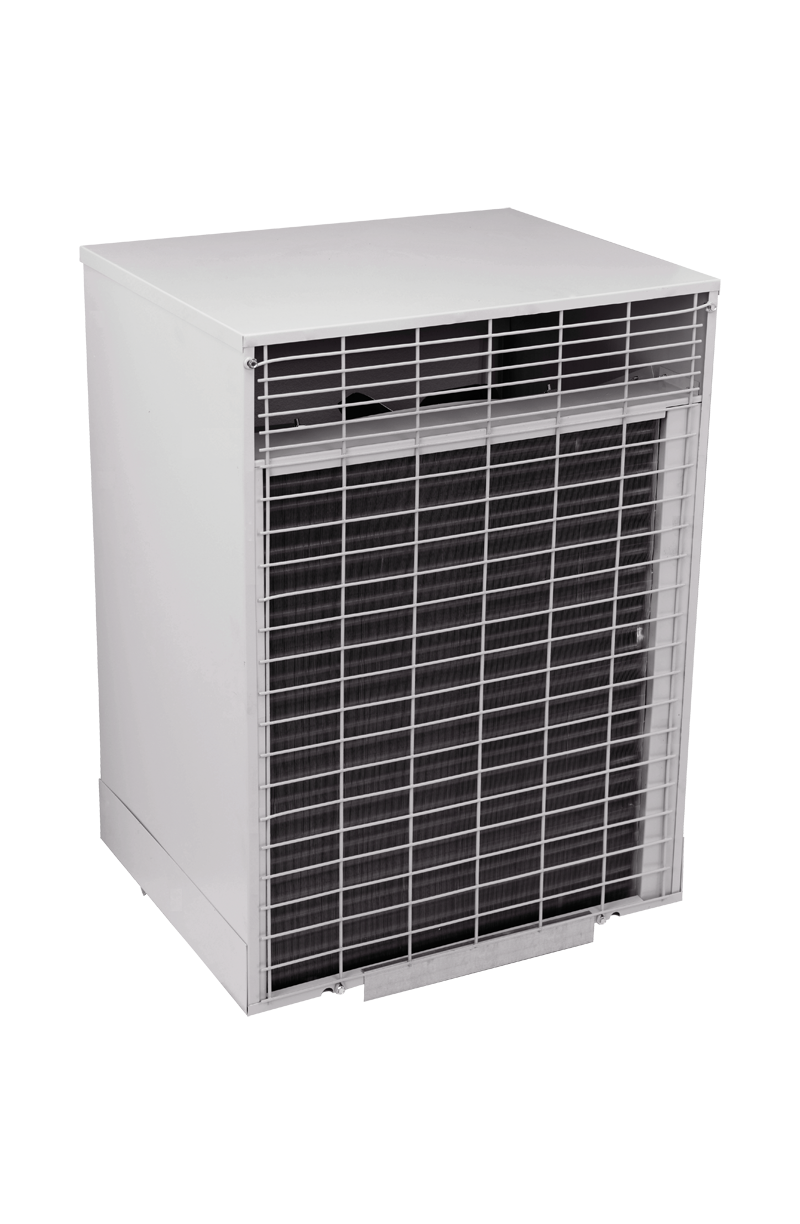

First Co WCX12 24WCXA12BB Thru-the-Wall Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER, R-410A, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze
First Co WCX12 24WCXA12BB Thru-the-Wall Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER, R-410A, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze
| Amperage Rating | : | 18 A (MCA) |
| BTU Rating | : | 12,000 Btu/hr |
| Base Size | : | 25-3/4" x 19" |
| Compressor Type | : | Scroll, Reciprocating |
| Configuration | : | Through-the-Wall |
| Connection Type | : | Sweat/Braze |
| Cooling Capacity | : | 12,000 BTU/hr |
| Dimensions | : | 28" H x 25-3/4" W x 19" D |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| HP Rating | : | 1/4 HP (Condenser Fan) |
| Liquid Line Size | : | 3/8 " |
| Model Number | : | 24WCX |
| Model | : | 24WCXA12BB |
| Mounting Type | : | Through-The-Wall |
| Nominal Capacity | : | 2 Tons |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 12 SEER |
| SEER2 Range | : | 12 |
| Series | : | WCX12 |
| Suction Line Size | : | 3/4" (O.D.) |
| Suitable For Use With | : | Blower Coil and Air Handler Units (With ECM Motors); Example Indoor Coil: 32VOHBX |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
| Voltage | : | 208/230 V |
These condensing units are excellent replacement products for the thousands of existing through the wall condensing units. Designed specifically for through-the-wall applications, this WCX12 Series unit operates with R-410A refrigerant and is intended for use with blower coil and air handler units equipped with ECM motors.
First Co Thru-the-Wall Split Condensing Unit, Model: WCX12, 2 Tons Nominal Capacity, 12 SEER, R-410A, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze, Scroll, Reciprocating, 23,800 BTU/hr, 1/4 HP (Condenser Fan), 28" H x 25-3/4" W x 19" D Dimensions, 25-3/4" x 19" Base Size, Through-The-Wall, 3/8" (O.d.) Liquid Line Size, 3/4" (O.d.) Suction Line Size, 18 A (MCA), 30 A Fuse Rating, 60 Hz
- Ideal replacement for existing through-the-wall condensing units.
- Utilizes R-410A refrigerant.
- Features an extra-high efficiency scroll or reciprocating compressor.
- Includes a sloped base pan for positive water drainage away from the building.
- Equipped with a plastic-coated coil guard for enhanced durability.
- Comes standard with a filter drier and high-pressure switch.
- Compatible With: Blower coil and air handler units with ECM motors (e.g., First Co. 32VOHBX).
- Optional architectural grille (Part# G200BBA) available for a clean exterior appearance.
