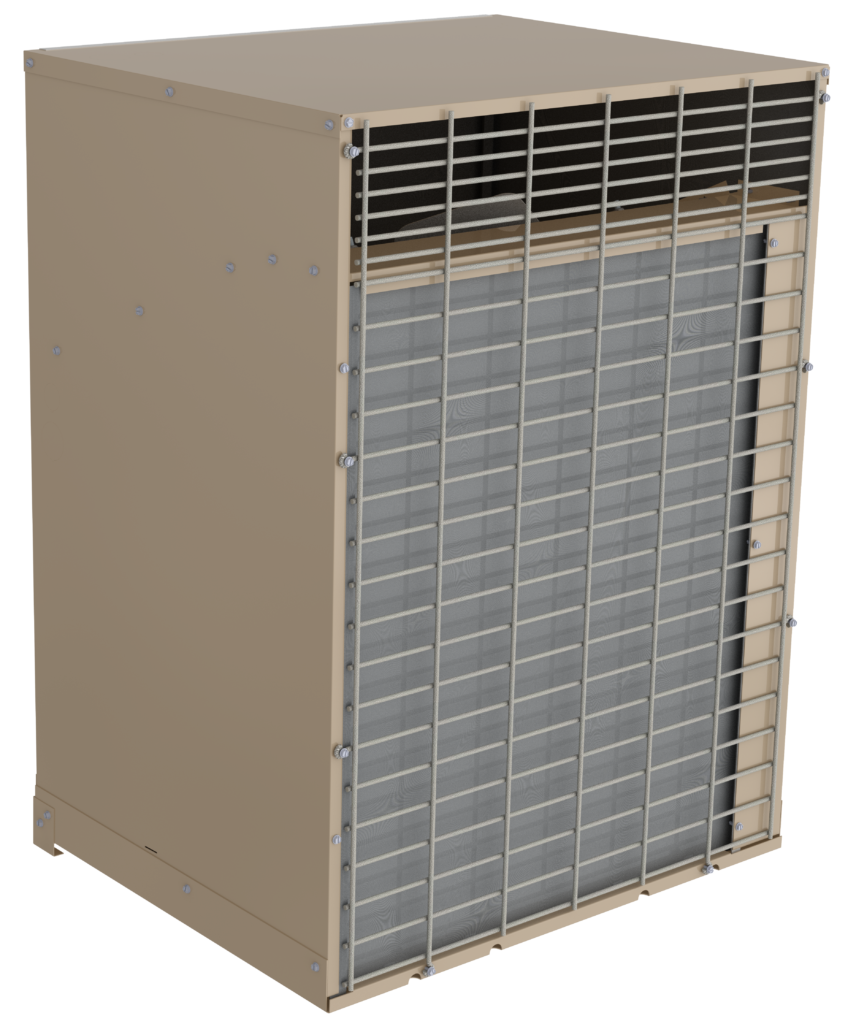

First Co WCX2 Series 24WCX2BB200F Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER2, R-454B, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze
First Co WCX2 Series 24WCX2BB200F Split Condensing Unit, 2 Tons Nominal Capacity, 12 SEER2, R-454B, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze
| Amperage Rating | : | 9.17 A (RLA), 13 A (MCA) |
| BTU Rating | : | 24,000 Btu/hr |
| Base Size | : | 25-3/4" x 19" |
| Compressor Type | : | Scroll, Reciprocating |
| Configuration | : | Through-the-Wall |
| Connection Type | : | Sweat/Braze |
| Cooling Capacity | : | 24,000 BTU/hr |
| Dimensions | : | 28" H x 25-3/4" W x 19" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | Direct Drive |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| HP Rating | : | 1/4 HP (Condenser Fan) |
| Liquid Line Size | : | 3/8 " |
| Model Number | : | 24WCX |
| Model | : | 24WCX2BB200F |
| Mounting Type | : | Through-The-Wall |
| Nominal Capacity | : | 2 Tons |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 12 SEER2 |
| Series | : | WCX2 Series |
| Suction Line Size | : | 3/4" (O.D.) |
| Suitable For Use With | : | Blower Coil and Air Handler Units (with ECM Motors) |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
| Voltage | : | 208/230 V |
The First Co WCX2 Series through-the-wall split condensing unit provides 2 tons (24,000 BTU/hr) of cooling capacity with a 12 SEER2 rating. Operating on 208/230V single-phase power, it utilizes R-454B refrigerant and features an efficient scroll or reciprocating compressor.Designed as an excellent replacement for existing through-the-wall units, this condenser boasts a unique cabinet design with side panels fitting inside the base pan for improved water containment and a sloped pan for positive drainage. It comes factory-charged with R-454B, though field adjustment may be required. This unit must be paired with compatible indoor blower coil or air handler units equipped with ECM motors and R-454B TXVs.
First Co Split Condensing Unit, Model: WCX2 Series, 2 Tons Nominal Capacity, 12 SEER2, R-454B, Through-The-Wall Configuration, 1, 208/230 V, Sweat/Braze, Scroll, Reciprocating, 24,000 BTU/hr, 1/4 HP (Condenser Fan), Direct Drive, 28" H x 25-3/4" W x 19" D Dimensions, Through-The-Wall, Domestic, 3/8" (O.d.) Liquid Line Size, 3/4" (O.d.) Suction Line Size, 9.17 A (RLA), 13 A (MCA), 20 A Fuse Rating, 60 Hz
- Designed for through-the-wall installation, ideal for replacement applications.
- Features an efficient scroll or reciprocating compressor and uses R-454B refrigerant.
- Propeller-type fan delivers efficient airflow over the condenser coil at lower operating watts.
- Unique cabinet design with sloped base pan enhances water drainage and containment.
- Includes a high-pressure switch for system protection.
- Equipped with a plastic-coated coil guard for added durability.
- Factory charged with R-454B refrigerant (charge requires field verification/adjustment).
- Compatible With: First Co blower coil and air handler units with ECM motors and R-454B TXVs.
