First Co.® 24HXS0502UAP000AAF 2.0 Ton Uncased Horizontal Evaporator Coil, 22.0 in W, TXV, R-410A
First Co.® 24HXS0502UAP000AAF 2.0 Ton Uncased Horizontal Evaporator Coil, 22.0 in W, TXV, R-410A
Manufacturer: First Company Products
Brand: First Co.®
Part #: 382625
MPN: 24HXS0502UAP000AAF
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Air Flow Direction | : | Horizontal |
| BTU Rating | : | 24,000 Btu/hr |
| Coil Casing | : | Uncased |
| Coil Material | : | Copper |
| Drain Pan Material | : | Galvanized Steel |
| For Use With | : | Most Split System Condensing Units and Heat Pumps (Heat Pumps Require Field Kit #942-1); R-410A Refrigerant |
| Model Number | : | HX |
| Product Family | : | HX Series |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Tonnage | : | 2.0 Ton |
| Width | : | 22.0 in |

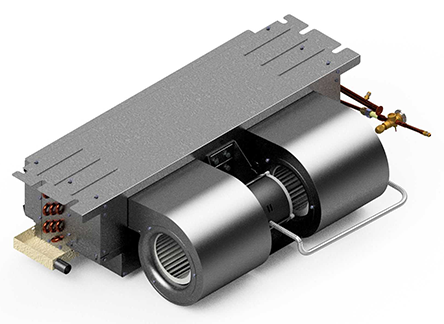

First Co Fan Coil Unit, Model: HX Series, 2 Tons Tonnage, 208-230 V, Recessed Ceiling Mount (Horizontal), 1 Phase, 800 CFM (Nominal), 24,000 BTU/hr, 5,000 W (Electric Heat), PSC Drive Type, 1/4 HP, Galvanized Steel (Drain Pan), Copper/Aluminum (Coils), 3/4" NPT (Drain Pan) Connection Type, 22.8 A (FLA), 25 A (MCA, 208V), 30 A (MCA, 240V), 25 A (208V), 30 A (240V) Fuse Rating, 60 Hz, Galvanized, Off White, Domestic, 37-1/4" Overall Length
