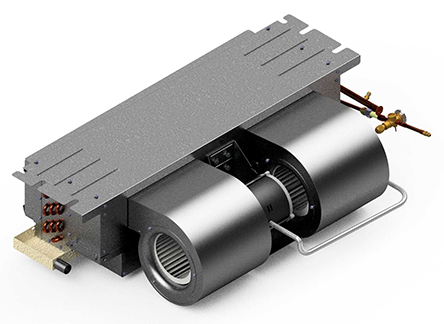

First Co HX Series 24HXS0002CAP000AAF Fan Coil Unit, 2 Tons Tonnage, 208-230 V, Recessed Ceiling Mount (Horizontal), 1 Phase, 800 CFM, PSC Drive Type, 1/4 HP
First Co HX Series 24HXS0002CAP000AAF Fan Coil Unit, 2 Tons Tonnage, 208-230 V, Recessed Ceiling Mount (Horizontal), 1 Phase, 800 CFM, PSC Drive Type, 1/4 HP
| Amperage Rating | : | 2.0 A (FLA), 3.0 A (MCA) |
| BTU Rating | : | 24,000 Btu/hr |
| CFM Rating | : | 800 CFM |
| Color | : | Off White |
| Connection Type | : | 3/4" NPT (Drain Pan) |
| Domestic/Import | : | Domestic |
| Drive Type | : | PSC |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/4 HP |
| Material | : | Galvanized Steel (Drain Pan), Copper/Aluminum (Coils) |
| Model | : | 24HXS0002CAP000AAF |
| Mounting Type | : | Recessed Ceiling Mount (Horizontal) |
| Overall Length | : | 37-1/4 " |
| Phase | : | 1 |
| Series | : | HX Series |
| Suitable For Use With | : | Most Split System Condensing Units and Heat Pumps (Heat Pumps with Electric Heat Require Field Added Kit) |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208-230 V |
HX – Standard open blower type with PSC motorHXX – High Efficiency with ECMHXS – Standard 7mm with PSC motorHXSX – 7mm with ECM motorHorizontal RecessedCased and Uncased Available1.5 – 3 Tons Cooling0 – 10 kW Electric HeatCompatible with R-32 and R-454BCompatible with R-410A for Servicing Existing Equipment OnlyAll HX fan coils include a 240/24V transformer and are completely prewired with 0 to 10 kW of electric heat. A sloped drain pan allows positive drainage of condensate. The base HX fan coil is an open blower type (non-enclosed) fan coil. It is also available with either a field or factory installed enclosure, with both options of a louvered or solid ceiling panel.The HX series is compatible with most split system condensing units and heat pumps (heat pumps with electric heat require field added kit).
First Co Fan Coil Unit, Model: HX Series, 2 Tons Tonnage, 208-230 V, Recessed Ceiling Mount (Horizontal), 1 Phase, 800 CFM, PSC Drive Type, 1/4 HP, Galvanized Steel (Drain Pan), Copper/Aluminum (Coils), 3/4" NPT (Drain Pan) Connection Type, 2.0 A (FLA), 3.0 A (MCA), 15 A Fuse Rating, 60 Hz, Galvanized, Off White, Domestic, 37-1/4" Overall Length
- Designed for horizontal recessed ceiling installation, saving valuable floor space.
- Delivers 2 tons (24,000 BTU/hr) cooling capacity and 800 CFM airflow.
- Equipped with a durable PSC blower motor (240V) and uses 24V controls.
- Features efficient copper tube/aluminum fin coils with a piston metering device.
- Includes an insulated, coated galvanized steel drain pan sloped for positive drainage with dual 3/4" NPT fittings.
- Comes prewired and includes a 240/24V transformer for simplified setup.
- Compatible With: Most standard split-system AC condensing units and heat pumps (heat pump operation with electric heat requires field-installed kit).
