Fieldpiece VC2G Dual Valve With Sight Glass, R-11, R-113, R-1130, R-1132, R-1132A Refrigerant, 1/4 in Connection
Fieldpiece VC2G Dual Valve With Sight Glass, R-11, R-113, R-1130, R-1132, R-1132A Refrigerant, 1/4 in Connection
Manufacturer: Fieldpiece Instruments
Brand: Fieldpiece
Part #: 391849
MPN: VC2G
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Connection Size | : | 0.3 in |
| Connection Type | : | Male SAE x Female SAE |
| Depth | : | 1.5000 in |
| Function Type | : | Valve |
| Length | : | 5.060 in |
| Material | : | Aluminum |
| Maximum Working Pressure | : | 800 psi |
| Product Type | : | Valve |
| Product Weight | : | 0.8200 lb |
| Refrigerant Type | : | R-11, R-113, R-1130, R-1132, R-1132A |
| Width | : | 2.6300 in |

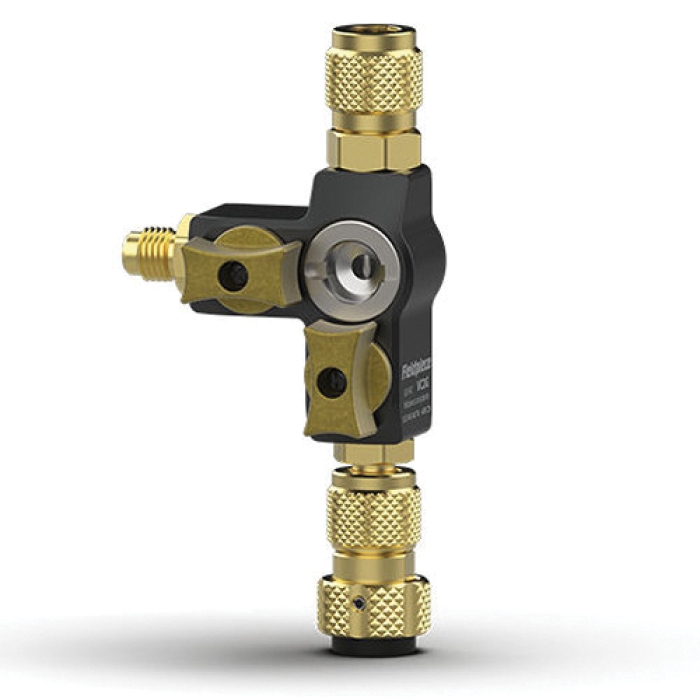

Know you've got it - the VC2G has an integrated sight glass so you visually verify the valve core is engaged before removing it, as well as confirm refrigerant is flowing. A second ball valve on the side port protects your vacuum and pressure gauges.
Fieldpiece Dual Valve, R-11, R-113, R-1130, R-1132, R-1132A Refrigerant, Male SAE x Female SAE Connection, 1/4 in Connection, Aluminum, 800 psi Maximum Working Pressure, 5.06 in Length, 2.63 in Width, 1-1/2 in Depth, Valve Function Type
- Swap 1/4" standard service port fitting with optional 5/16" fitting for mini-splits
- Lock in the valve core in one try - a gasket secures the valve core pin
- Easier removal and insertion against pressure with a comfort spinner - a free-spinning, rubberized, magnetic cap
- Dual ball valves for protecting test gauges and using multiple hose lines
- Vacuum-rated to 20 microns
- A2L Compatible
