Fieldpiece Instruments ST4 Dual Temperature Meter, K-Type Thermocouple, -58-2000 °F, K-Type Wrap Tab Bead (Included), °F/°c Switchable, ± 4°F (Meter, At -58-32°F), ± (0.3% RDG + 2°F) (Meter, At 32-1100°F), ± (0.5% RDG + 2°F) (Meter, At 1100-2000°F), ± 1°F (After Field Calibration, At 30-120°F), ± 6°F (After Field Calibration, At 0-50°F), 0.1 °F Resolution, LCD (3.5 Digit, 2000 Count)
Fieldpiece Instruments ST4 Dual Temperature Meter, K-Type Thermocouple, -58-2000 °F, K-Type Wrap Tab Bead (Included), °F/°c Switchable, ± 4°F (Meter, At -58-32°F), ± (0.3% RDG + 2°F) (Meter, At 32-1100°F), ± (0.5% RDG + 2°F) (Meter, At 1100-2000°F), ± 1°F (After Field Calibration, At 30-120°F), ± 6°F (After Field Calibration, At 0-50°F), 0.1 °F Resolution, LCD (3.5 Digit, 2000 Count)
| Accuracy | : | ± 4°F (Meter, at -58-32°F), ± (0.3% RDG + 2°F) (Meter, at 32-1100°F), ± (0.5% RDG + 2°F) (Meter, at 1100-2000°F), ± 1°F (After Field Calibration, at 30-120°F), ± 6°F (After Field Calibration, at 0-50°F) |
| Battery Type | : | 9V |
| Color | : | Yellow, Black |
| Connection Type | : | K-Type Thermocouple |
| Display Type | : | LCD (3.5 Digit, 2000 Count) |
| Graduation | : | 0.1 ° |
| Material | : | Rubber (Boot), Nylon (Case) |
| Measuring Scale | : | °F/°C Switchable |
| Mounting Type | : | Handheld, Magnetic Mount |
| Power Source | : | Battery |
| Probe Type | : | K-Type Wrap Tab Bead (Included) |
| Resolution | : | 0.1 °F |
| Sensor Type | : | K-Type Thermocouple |
| Temperature Rating | : | -58-2000 °F |

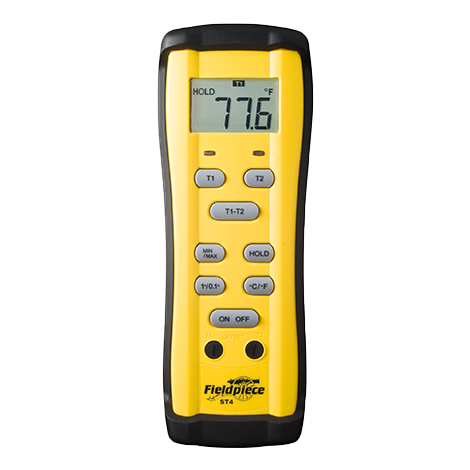

The Dual-Temperature Meter, model ST4, measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples. Its technology provides superior temperature compensation in rapidly changing environments common in field service. Use the ST4 to find Delta T and measure various temperature splits, displaying T1, T2, and T1-T2 on the large LCD screen. It features two front-face calibration pots and includes a clear front case with a magnetic hanger.Designed specifically for HVAC/R, this meter calculates the temperature difference in English or metric units, offering the benefits of a digital thermometer in a heavy-duty design. Due to its internal technology, the ST4 stabilizes rapidly even when moved between different environments like rooftops and walk-ins, providing faster and more accurate readings compared to meters using thermocouple adapters susceptible to ambient heat transfer. The included rubber boot and hanging bag facilitate easy, hands-free testing.
Fieldpiece Instruments Dual Temperature Meter, K-Type Thermocouple, -58-2000 °F, K-Type Wrap Tab Bead (Included), °F/°c Switchable, ± 4°F (Meter, At -58-32°F), ± (0.3% RDG + 2°F) (Meter, At 32-1100°F), ± (0.5% RDG + 2°F) (Meter, At 1100-2000°F), ± 1°F (After Field Calibration, At 30-120°F), ± 6°F (After Field Calibration, At 0-50°F), 0.1 °F Resolution, LCD (3.5 Digit, 2000 Count), Handheld, Magnetic Mount, Battery, 9V, Rubber (Boot), Nylon (Case), Yellow, Black
- Measures two temperatures simultaneously (T1, T2) and calculates the difference (T1-T2).
- Compatible with any K-type thermocouple; includes two wrap-tab bead thermocouples (up to 400°F).
- Features superior temperature compensation for accurate readings in rapidly changing environments.
- Includes MIN/MAX recording and HOLD functions for data capture.
- Selectable °F/°C units and 0.1°/1° resolution display.
- Field-calibratable design allows for enhanced accuracy (±1°F from 30°F to 120°F).
- Includes a protective rubber boot, clear front case, and magnetic hanger for durability and hands-free use.
