Fieldpiece Instruments LT Series LT17A Digital Multimeter, 600 V, 400 A, LCD, Yes Diode Test, 0.1 mV Resolution, 0.5% + 1 Digit, 1.0% + 1 Digit Current Accuracy
Fieldpiece Instruments LT Series LT17A Digital Multimeter, 600 V, 400 A, LCD, Yes Diode Test, 0.1 mV Resolution, 0.5% + 1 Digit, 1.0% + 1 Digit Current Accuracy
| Amperage Rating | : | 400 A |
| Battery Type | : | 9V |
| Capacitance Accuracy | : | 4% + 10 digits |
| Capacitance | : | 20,000,000 MFD |
| Color | : | Yellow |
| Current Accuracy | : | 1.0% + 1 digit |
| Dimensions | : | 9-1/2" L x 7" W x 3-2/5" D |
| Diode Accuracy | : | 1.5% + 3 digits |
| Diode Test | : | Yes |
| Display Type | : | LCD |
| Frequency Accuracy | : | 0.1% + 3 digits |
| Frequency Rating | : | 10 - 40,000 Hz |
| Humidity Rating | : | 70 % |
| Material | : | ABS, Rubber (Boot) |
| Model | : | LT17A |
| Resistance Accuracy | : | ±1.0% + 4 Digits |
| Resistance | : | 40,000,000 Ohms |
| Resolution | : | 0.1 mV |
| Series | : | LT Series |
| Temperature Accuracy | : | ±1°F |
| Temperature Rating | : | 32-122 °F |
| Voltage Accuracy | : | 0.5% + 1 digit |
| Voltage Rating | : | 600 V |

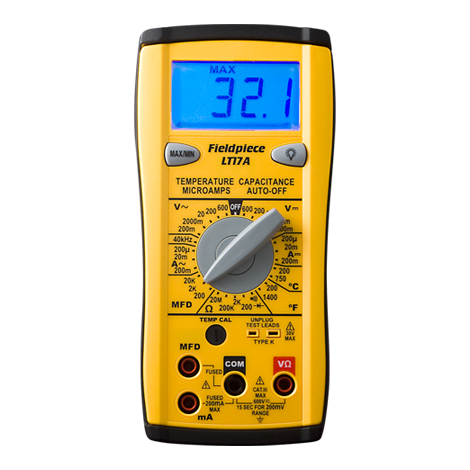

This manual ranger covers the parameters and ranges you need for most HVACR applications. The LT17A meter measures current, resistance, voltage, capacitance, frequency, continuity, and temperature. Test leads store in the meter body and, with the probe tips removed, connect to any Fieldpiece accessory head. The body is made out of durable ABS plastic and comes with a bright blue backlight for poorly lit test areas. Get great accuracy using the included k-type thermocouple and an easily accessible temperature calibration pot.The testing capabilities packed into this classic style meter is its main competitive advantage. In addition to all of the ranges, it has direct temperature measurement and works with all of our accessory heads to make it one of the most complete classic style meters available for HVACR professionals.
Fieldpiece Instruments Digital Multimeter, Model: LT Series, 600 V, 400 A, LCD, Yes Diode Test, 0.1 mV Resolution, 0.5% + 1 Digit, 1.0% + 1 Digit Current Accuracy, ±1.0% + 4 Digits Resistance Accuracy, 0.1% + 3 Digits Frequency Accuracy, ±1°F Temperature Accuracy, 4% + 10 Digits Capacitance Accuracy, 1.5% + 3 Digits, 10 - 40,000 Hz, 0.1 x (Specified Accuracy)1°F/°c, 40,000,000 Ohms, 20,000,000 MFD, 32-122 °F Temperature Rating, ≤70% Humidity Rating, 9-1/2" L x 7" W x 3-2/5" D Dimensions, ABS, Rubber (Boot), Yellow, 9V
- Measures key HVACR parameters including AC/DC voltage (up to 600V), AC current (up to 400A with included clamp), resistance, capacitance, frequency, and temperature.
- Features a microamps DC range specifically for testing flame rectification sensors.
- Includes a K-type thermocouple for direct temperature measurement up to 1400°F.
- Bright blue backlight, tilt stand, and magnetic hanger allow for easy viewing and hands-free operation.
- Compatible with Fieldpiece accessory heads to expand measurement capabilities.
- Rugged ABS case with protective rubber boot ensures durability on the job site.
- Auto power-off function conserves battery life (approx. 150 hours typical).

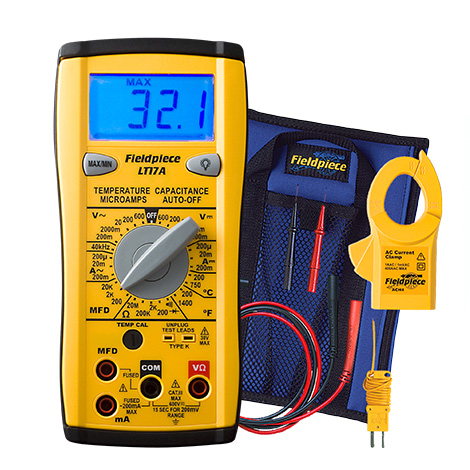

- Includes deluxe silicone test leads, 400A clamp accessory, thermocouple, alligator clips, and carrying case.
