Fieldpiece Instruments JL3RH Psychrometer Probe, 0-100% Humidity Rating, -40-250 °F, ± 1 °F (32-113°F), ± 2 °F (-4-32°F, 113-140°F), 1,000' Wireless Range, 0.36" Diam x 9.25" L Probe Size, 60 Seconds (90% Of Differential TYP), Battery Power Source
Fieldpiece Instruments JL3RH Psychrometer Probe, 0-100% Humidity Rating, -40-250 °F, ± 1 °F (32-113°F), ± 2 °F (-4-32°F, 113-140°F), 1,000' Wireless Range, 0.36" Diam x 9.25" L Probe Size, 60 Seconds (90% Of Differential TYP), Battery Power Source
| Accuracy | : | ± 1 °F (32-113°F), ± 2 °F (-4-32°F, 113-140°F) |
| Additional Information | : | AAA Battery Size |
| Battery Life | : | 150 hrs (Typical Alkaline) |
| Battery Type | : | AAA |
| Humidity Rating | : | 0-100% |
| Material | : | Rubber (Housing) |
| Model | : | JL3RH |
| Power Source | : | Battery |
| Probe Size | : | 0.36" Diam x 9.25" L |
| Response Time | : | 60 seconds (90% of Differential TYP) |
| Temperature Rating | : | -40-250 °F |
| Wireless Range | : | 1,000 ' |

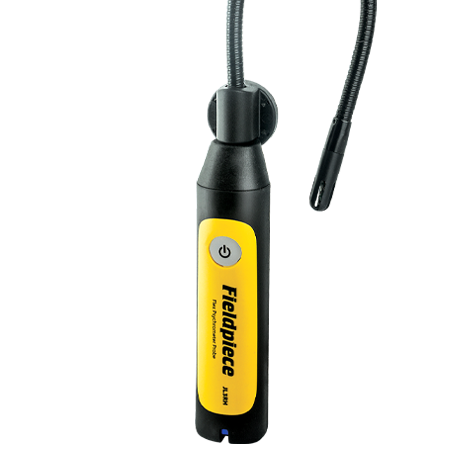

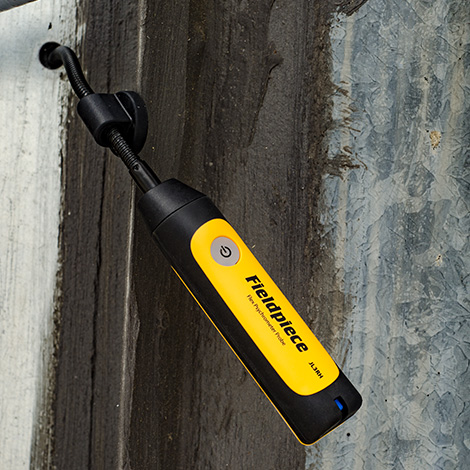

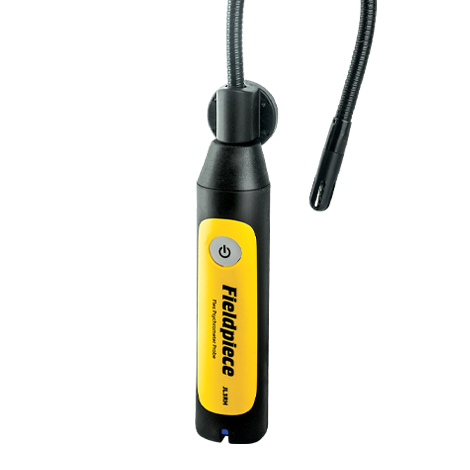

The JL3RH Job Link® System Psychrometer Probe has a long flexible wand and strong sliding magnet for easy measurements anywhere on the system. Get instant live readings from ducts, plenums, registers, or grilles for accurate diagnostics. Now handles extreme duct temperatures up to 250°F and as low as -40°F! A flexible wand with a powerful sliding magnet provides quick and easy measurements anywhere on the system. Place in critical locations based on system needs. Requires only 3/8″ hole for duct testing.Connect to Job Link App or Wireless SM380V and SM480V Digital Manifolds. You can connect your psychrometers directly to both the Job Link app and the wireless SMANâ„¢ Refrigerant Manifolds (3-port SM380V or 4-port SM480V) to see live air temperatures readings while you’re making adjustments to the system. Data log results in the manifolds, or include in Job Link System reports.
Fieldpiece Instruments Psychrometer Probe, 0-100% Humidity Rating, -40-250 °F, ± 1 °F (32-113°F), ± 2 °F (-4-32°F, 113-140°F), 1,000' Wireless Range, 0.36" Diam x 9.25" L Probe Size, 60 Seconds (90% Of Differential TYP), Battery Power Source, 150 Hrs (Typical Alkaline) Battery Life, AAA Battery Type, Rubber (Housing)
- Measures %RH, dry bulb, wet bulb, dew point, and enthalpy.
- Long, flexible 9.25" probe with strong sliding magnet allows easy measurements in hard-to-reach areas.
- Transmits live readings wirelessly up to 1,000 feet (line of sight) to the Job Link® app or compatible SMAN® manifolds.
- Wide temperature measurement range from -40°F to 250°F accommodates extreme duct conditions.
- Requires only a 3/8-inch hole for duct insertion.
- Features a supply/return indicator switch for organized data logging.
- Water-resistant housing enhances durability.
- Includes a 1-Year Limited Warranty.
