Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery
Fieldpiece Instruments JL3MN Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery
| Accuracy | : | ± 0.02 in. w.c. (0-2 in. w.c.), ± 1.5% FS (2-60 in. w.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) |
| Additional Information | : | AAA Battery Size |
| Battery Life | : | 150 hrs (Typical Alkaline) |
| Battery Type | : | AAA |
| Color | : | Black, Yellow |
| Connection Type | : | Tube Connector (Flexible Tubing) |
| Display Type | : | App-Based (Job Link) |
| Fitting Size | : | 0.177"-0.315" (ID, Tubing) |
| Fluid Type | : | Dry Non-Corrosive Gas |
| Humidity Rating | : | 75 % |
| Measuring Range | : | +/- 60 in. wc. |
| Mounting Type | : | Magnetic Mount, Handheld |
| Power Source | : | Battery |
| Pressure Rating | : | 321.08 in. wc. |
| Resolution | : | 0.01 in. wc. |
| Suitable For Use With | : | Static/Gas/Draft Pressure Measurement in HVACR Systems (Furnaces, Air Handlers, Ductwork) |
| Temperature Rating | : | -10-122 °F |
Shorter hoses. Fewer tangles.You’re free to work the way you want.Part of the Job Link® System, the JL3MN Manometer lets you work the way you want to. Its strong magnet allows you to place your probe directly on a test port and its short tubes offer tangle-free work.Versatile and durable.With a strong metal tip that‘s used with different sizes of tubing, the JL3MN is a reliable, accurate and durable measurement tool. It’s great for taking a single gas pressure measurement and works wirelessly with the Job Link App.
Fieldpiece Instruments Single Port Wireless Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-60 In. W.c.), ± 0.001 PSI (0-0.072 PSI), ± 1.5% FS (0.072-2.165 PSI) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (Flexible Tubing), 0.177"-0.315" (ID, Tubing) Fitting Size, App-Based (Job Link), Battery, 150 Hrs (Typical Alkaline) Battery Life, AAA Battery, Dry Non-Corrosive Gas, 321.08 In. Wc., -10-122 °F, Magnetic Mount, Handheld, ≤75% Humidity Rating, Black, Yellow
- Features long-range wireless communication up to 1000 ft (line of sight) to the Job Link app.
- Provides versatile measurement for static pressure, gas pressure, and draft.
- Enables precise probe placement without restrictions from long hoses.

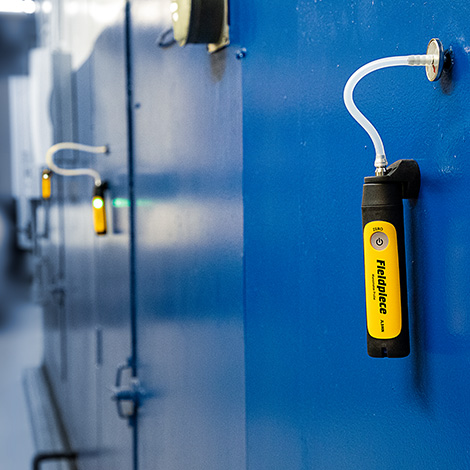

- Features a strong rotating magnet for secure, hands-free mounting.
- Compatible with the Fieldpiece Job Link® System App for viewing and documenting readings.

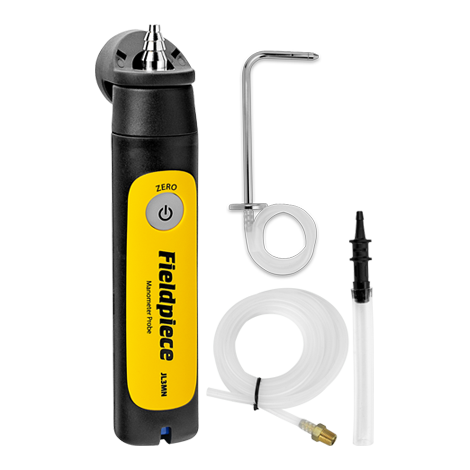

- Includes accessories for static and gas pressure applications (ASP2 probe, hose, brass fitting, gas adapter).
- Offers easy one-button zeroing to atmosphere.
