Fieldpiece Instruments HR3B Ball Valve Refrigerant Hose Set, 1/4" Female SAE Flare, Ball Valve, All Common Refrigerants (CFC, HCFC, HFC, HFO), 60" Length, 3 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-200 °F, 2" Bend Radius
Fieldpiece Instruments HR3B Ball Valve Refrigerant Hose Set, 1/4" Female SAE Flare, Ball Valve, All Common Refrigerants (CFC, HCFC, HFC, HFO), 60" Length, 3 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-200 °F, 2" Bend Radius
| Angle | : | 45 degrees (Hose End) |
| Bend Radius | : | 2 " |
| Color | : | Black (Hoses), Red (Tag), Blue (Tag), Yellow (Tag) |
| Connection Size | : | 1/4 " |
| Connection Type | : | 1/4" Female SAE Flare, Ball Valve |
| Domestic/Import | : | Import |
| Fitting Material | : | Brass |
| Fitting Size | : | 1/4" x 1/4" |
| Length | : | 60 " |
| Material | : | Brass (Fittings), Rubber/Plastic/Nylon/Polyester (Hose) |
| Model | : | HR3B |
| Nominal Size | : | 1/4 " |
| Number of Hoses | : | 3 |
| Pressure Rating | : | 800 PSI (Working), 4,000 PSI (Burst) |
| Refrigerant Type | : | All Common Refrigerants (CFC, HCFC, HFC, HFO) |
| Suitable For Use With | : | Charging; Recovery; Evacuation; A2L Refrigerants |
| Temperature Rating | : | -20-200 °F |

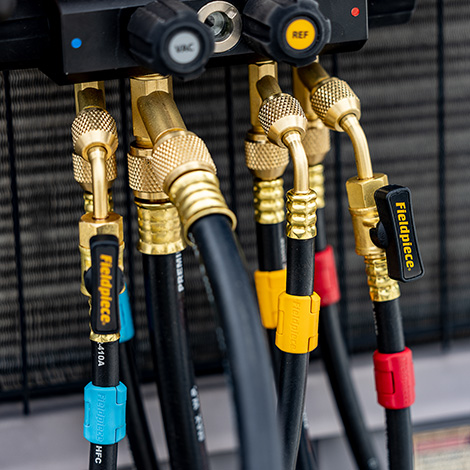

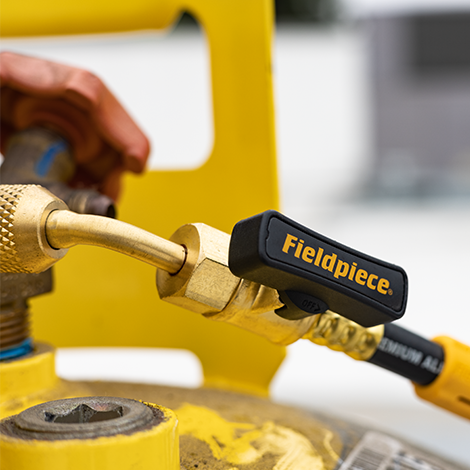

This set includes three 5-foot refrigerant hoses equipped with 1/4-inch ball valve fittings, designed for charging, recovery, and evacuation tasks. The hoses feature a rugged 4-layer construction with a full-ring triple crimp for durability and meet SAE J2196 standards for permeation resistance.Compatible with A2L refrigerants, these hoses operate safely with a working pressure of 800 PSI and a burst pressure of 4000 PSI. The set also includes customizable color tags for easy hose identification in the field.
Fieldpiece Instruments Ball Valve Refrigerant Hose Set, 1/4" Female SAE Flare, Ball Valve, All Common Refrigerants (CFC, HCFC, HFC, HFO), 60" Length, 3 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-200 °F, 2" Bend Radius, 45 Degrees (Hose End) Angle, Brass (Fittings), Rubber/Plastic/Nylon/Polyester (Hose), Black (Hoses), Red (Tag), Blue (Tag), Yellow (Tag), Import

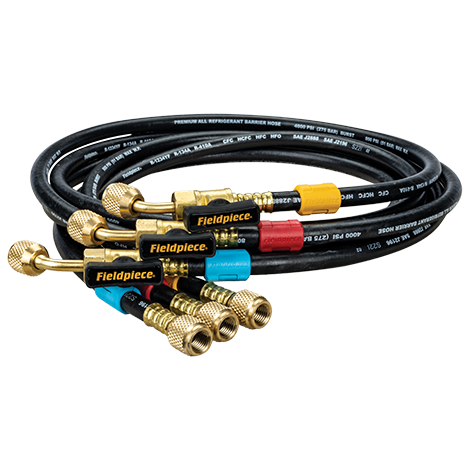

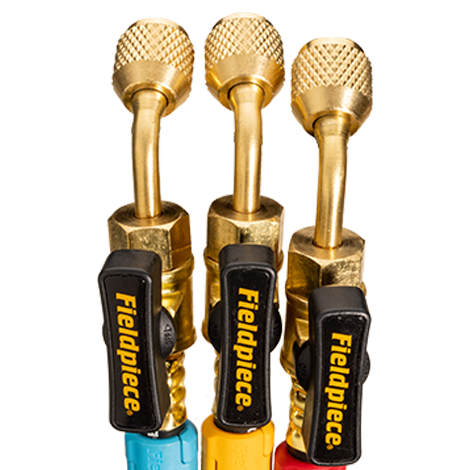

- Includes three 5-foot hoses with 1/4" ball valve fittings.

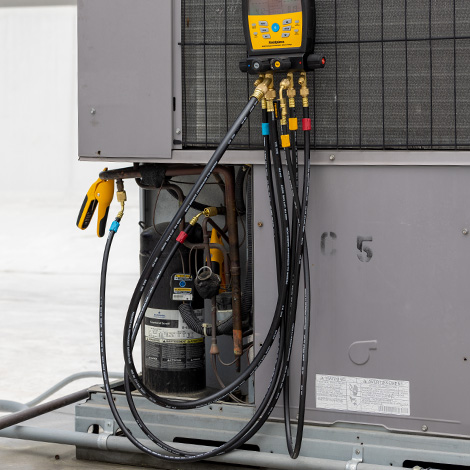

- Suitable for charging, recovery, and evacuation procedures.
- Compatible with A2L refrigerants.
- Features rugged 4-layer construction with full-ring triple crimp for durability.
- Meets SAE J2196 standards with a built-in permeation barrier.
- Rated for 800 PSI working pressure and 4000 PSI burst pressure.
- Comes with customizable color tags for easy hose identification.
