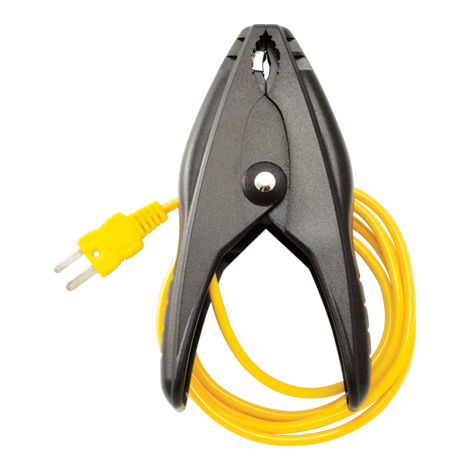

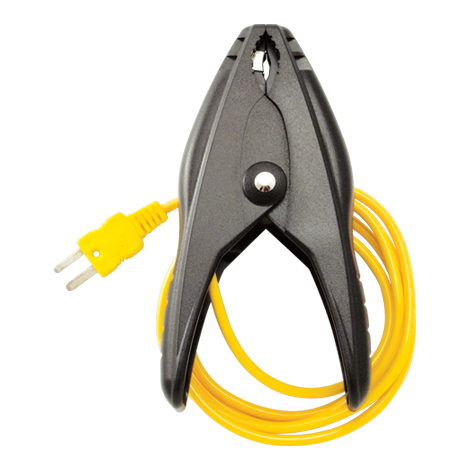

Fieldpiece Instruments ATC1R Pipe Clamp Thermocouple, Type K, -50-257 °F, K-Type Thermocouple, Male Mini Plug, 1/8" - 3/4" (Pipe Diameter, OD) Jaw Size, ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F), Nickel Chromium/Nickel Aluminum (Conductors), Steel (Body), Black, Yellow
Fieldpiece Instruments ATC1R Pipe Clamp Thermocouple, Type K, -50-257 °F, K-Type Thermocouple, Male Mini Plug, 1/8" - 3/4" (Pipe Diameter, OD) Jaw Size, ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F), Nickel Chromium/Nickel Aluminum (Conductors), Steel (Body), Black, Yellow
| Accuracy | : | ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F) |
| Color | : | Black, Yellow |
| Connection Type | : | K-Type Thermocouple, Male Mini Plug |
| Domestic/Import | : | Import |
| Jaw Size | : | 1/8" - 3/4" (Pipe Diameter, OD) |
| Material | : | Nickel Chromium/Nickel Aluminum (Conductors), Steel (Body) |
| Model | : | ATC1R |
| Probe Connector | : | K-Type Male Mini Plug |
| Temperature Rating | : | -50-257 °F |
| Thermocouple Type | : | Type K |
The ATC1R, Type-K, pipe clamp thermocouple is used to take temperatures of pipes or any other cylindrical surface within its 1/8†to 3/4†jaw range. Using a pipe clamp thermocouple greatly facilitates taking superheat or subcooling measurements. Use the ATC1R for most refrigeration units. The ATC1R can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple.The sensor is virtually isolated from ambient conditions, allowing the thermocouple to read the true pipe temperature for as long as it is attached. The sensor’s large surface area and increased clamping force help the sensor reach the correct temperature within 30 seconds. Because the jaw is designed for HVAC/R, its clamping ability lets you measure temperatures of pipes that are fixed, at any angle, to walls or other surfaces.
Fieldpiece Instruments Pipe Clamp Thermocouple, Type K, -50-257 °F, K-Type Thermocouple, Male Mini Plug, 1/8" - 3/4" (Pipe Diameter, OD) Jaw Size, ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F), Nickel Chromium/Nickel Aluminum (Conductors), Steel (Body), Black, Yellow, Import
- Measures temperature on pipes and cylindrical surfaces with outer diameters from 1/8" to 3/4".
- Ideal for taking superheat and subcooling measurements on refrigeration units.
- Sensor design isolates from ambient conditions for accurate pipe temperature readings.
- Reaches stable temperature readings in less than 30 seconds due to large sensor surface and strong clamp.
- Jaw design allows clamping onto pipes fixed at any angle or close to surfaces.
- Features a standard Type-K male mini plug connector.
- Wide temperature measurement range from -50°F to 257°F (-46°C to 125°C).
- Compatible With: Any Fieldpiece meter that measures temperature and any thermometer accepting a Type-K thermocouple.
- Comes with a one-year limited warranty.
