Fieldpiece Instruments ATB1 K-Type Bead Thermocouple, Type K, -50-400 °F (Continuous), 482 °F (Maximum, Single Exposure), Bead, K-Type Male Mini Plug, 36" Lead Length, ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F), Nickel Chromium/Nickel Aluminum (Conductors), Fiberglass (Insulation)
Fieldpiece Instruments ATB1 K-Type Bead Thermocouple, Type K, -50-400 °F (Continuous), 482 °F (Maximum, Single Exposure), Bead, K-Type Male Mini Plug, 36" Lead Length, ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F), Nickel Chromium/Nickel Aluminum (Conductors), Fiberglass (Insulation)
| Accuracy | : | ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F) |
| Color | : | Yellow |
| Connection Type | : | K-Type Thermocouple |
| Domestic/Import | : | Import |
| Lead Length | : | 36 " |
| Material | : | Nickel Chromium/Nickel Aluminum (Conductors), Fiberglass (Insulation) |
| Model | : | ATB1 |
| Probe Connector | : | K-Type Male Mini Plug |
| Probe Included | : | Yes |
| Temperature Rating | : | -50-400 °F (Continuous), 482 °F (Maximum, Single Exposure) |
| Thermocouple Type | : | Type K |
| Tip Type | : | Bead |

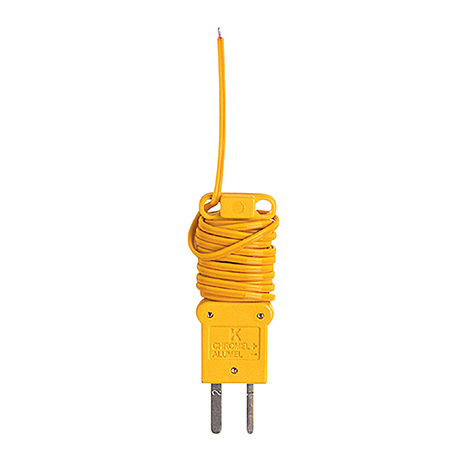

The ATB1, Type-K bead thermocouple is used to take temperatures of air, surfaces, or liquids up to 400°F. Use the ATB1 for outdoor dry bulb temperatures when finding target superheat. The ATB1 can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple.The wrap-tab allows the thermocouple wire to conveniently store on the plug. Just wrap the excess wire around the wrap-tab and feed it through one of the eyes. Keep a few of them set at different lengths for fast, job-specific, switching between thermocouples. No more tangled messes in your tool bag.
Fieldpiece Instruments K-Type Bead Thermocouple, Type K, -50-400 °F (Continuous), 482 °F (Maximum, Single Exposure), Bead, K-Type Male Mini Plug, 36" Lead Length, ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F), Nickel Chromium/Nickel Aluminum (Conductors), Fiberglass (Insulation), Yes Probe Included, Yellow, Import
- Measures air, surface, or liquid temperatures from -50°F to 400°F.
- Suitable for measuring outdoor dry bulb temperatures when calculating target superheat.
- Compatible with Fieldpiece meters and other instruments accepting a K-type thermocouple input.
- Features a wrap-tab integrated into the plug for easy wire management and storage.
- Standard accuracy of ±4°F, with ±1°F possible after field calibration (32°F to 176°F).
- Backed by a one-year limited warranty against manufacturing defects.
