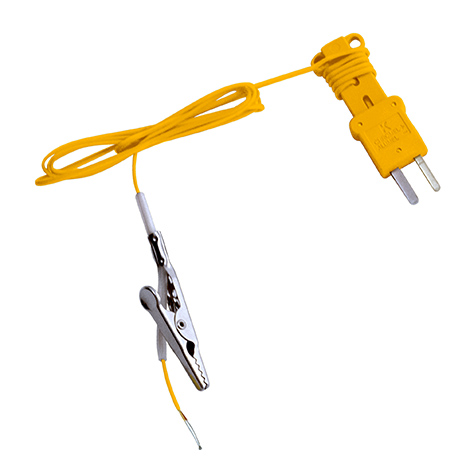

Fieldpiece Instruments ATA1 K-Type Thermocouple w/ Alligator Clip, Type K, -50-400 °F, Bead, Alligator Clip, K-Type Thermocouple, K-Type Male Mini Plug, ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F), Nickel Chromium/Nickel Aluminum (Conductors)

The ATA1, Type-K thermocouple can clip to HVACR equipment for convenient placement and hands free testing. Clip to condenser fins for accurate outdoor dry bulb measurement – great for finding target superheat. Clip to evaporator filters for indoor dry bulb – great for finding target evaporator exit temperature. Clip to supply vents for dry bulb supply temperature. The ATA1 can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple. HVACR technicians find the ATA1 extremely helpful when data logging or anytime an extra hand is needed. The wrap-tab allows the thermocouple wire to conveniently store on the plug. Just wrap the excess wire around the wrap-tab. No more tangled messes in your tool bag.

Fieldpiece Instruments K-Type Thermocouple w/ Alligator Clip, Type K, -50-400 °F, Bead, Alligator Clip, K-Type Thermocouple, K-Type Male Mini Plug, ± 4°F (General), ± 1°F (After Field Calibration, 32-176°F), Nickel Chromium/Nickel Aluminum (Conductors), Yes Probe Included, Import, 1/2" L x 7-1/2" H x 4.70" W Size

• Alligator clip allows for convenient, hands-free temperature measurements.
• Measures a wide temperature range from -50°F to 400°F (-46°C to 204°C).
• Features a wrap-tab on the plug for convenient wire storage and organization.
• Compatible with any meter or thermometer that accepts a standard Type-K thermocouple plug.
• Ideal for measuring dry bulb temperatures on condenser fins, evaporator filters, and supply vents.
• Uses Type-K nickel chromium/nickel aluminum conductors for reliable readings.
• Connects via a standard K-type male mini plug.

• Sell Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/ata1_broc-4992-5553.pdf
