Nordic Technology FAST-STAT MODEL 9000 Wiring Extender, 20-28 VAC (Operating), 30 VAC (Max), 2 A (Max Load), Screw Terminals, Black
Nordic Technology FAST-STAT MODEL 9000 Wiring Extender, 20-28 VAC (Operating), 30 VAC (Max), 2 A (Max Load), Screw Terminals, Black
| Amperage Rating | : | 2 A (Max Load) |
| Color | : | Black |
| End Style | : | Screw Terminals |
| Series | : | FAST-STAT |
| Suitable For Use With | : | Air Conditioner to Single/2-Stage Heat Pump Conversions; Extending 2-Wire Cable Between Indoor (Furnace/Air Handler) and Outdoor Units; 24VAC Systems (Y1, Y2, O/B, W Signals), Zone Controllers, EIMs, Thermostats |
| Voltage Rating | : | 20-28 VAC (Operating), 30 VAC (Max) |

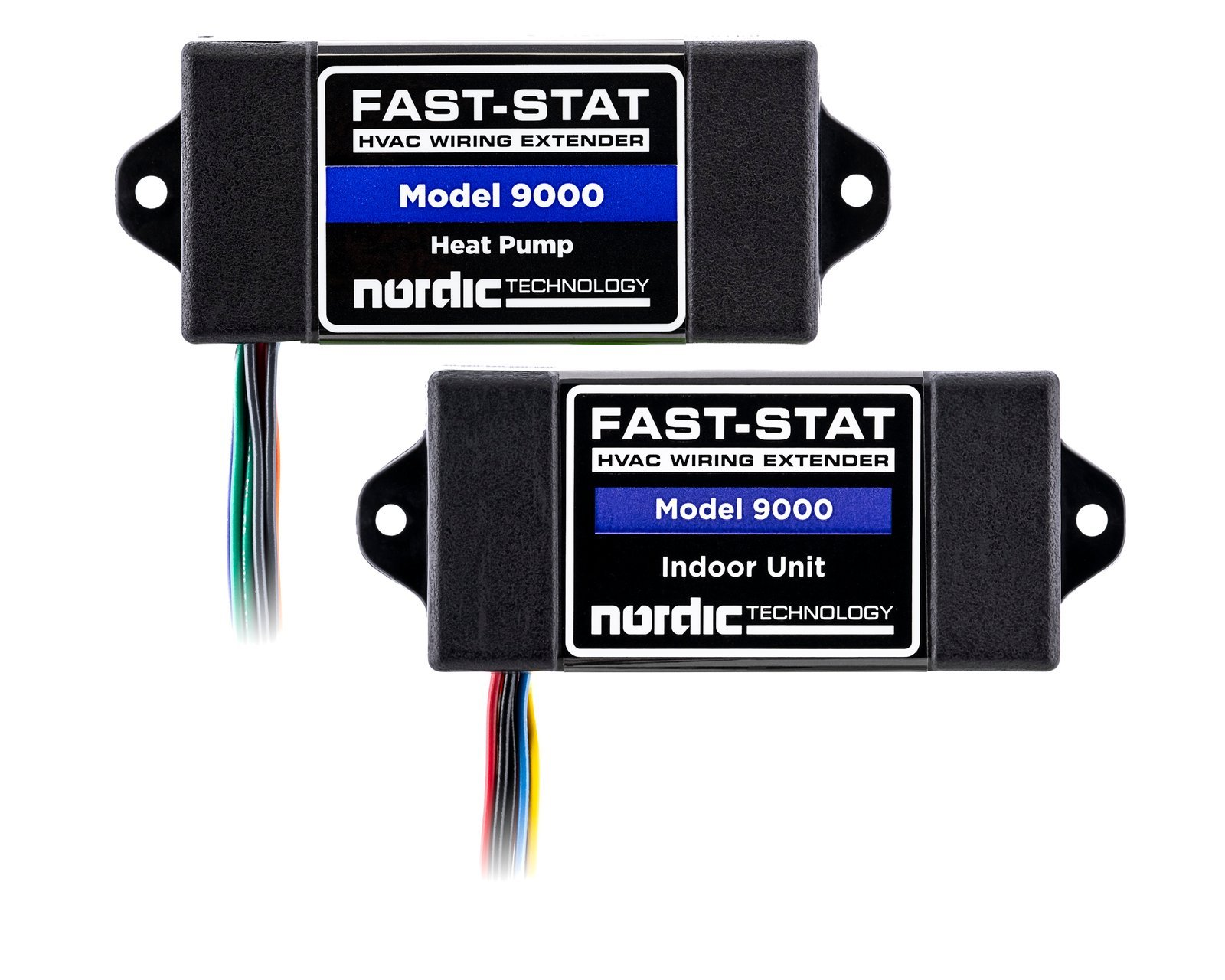

The Fast-Stat Model 9000 Wiring Extender simplifies converting air conditioning systems to single or 2-stage heat pumps by utilizing the existing 2-wire condenser cable. This eliminates the need to pull new wiring, saving time and avoiding potential damage to walls. It effectively transmits Y1, Y2, O/B, and W signals between the indoor unit (furnace/air handler) and the outdoor heat pump.Designed for 24 VAC systems, the Model 9000 is compatible with many thermostats, Equipment Interface Modules (EIMs), and zone controllers. It includes two modules – one for the indoor unit and one for the heat pump – and features an optional built-in fossil fuel kit for added flexibility in system configuration.
Nordic Technology Wiring Extender, Model: FAST-STAT, 20-28 VAC (Operating), 30 VAC (Max), 2 A (Max Load), Screw Terminals, Black
- Simplifies AC to heat pump conversions by utilizing existing 2-wire condenser cables.
- Transmits Y1, Y2, O/B, and W signals for single or 2-stage heat pump operation.
- Eliminates the need to pull new wiring, reducing installation time and cost.
- Operates on standard 24 VAC control circuits (20-28 VAC).
- Features an optional built-in fossil fuel/supplemental heat control capability.
- Compatible with many thermostats, zone controllers, and Equipment Interface Modules (EIMs).
- Includes indoor unit and heat pump modules for straightforward installation.
