Nordic Technology FAST-STAT MODEL 7000 Wiring Extender, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Black
Nordic Technology FAST-STAT MODEL 7000 Wiring Extender, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Black
| Amperage Rating | : | 2 A (Max Load) |
| Color | : | Black |
| Series | : | FAST-STAT |
| Suitable For Use With | : | Air Conditioner to Heat Pump Conversions (Single or 2-Stage); Extending Wiring Between Thermostat, Indoor Unit, and Heat Pump |
| Voltage Rating | : | 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating) |

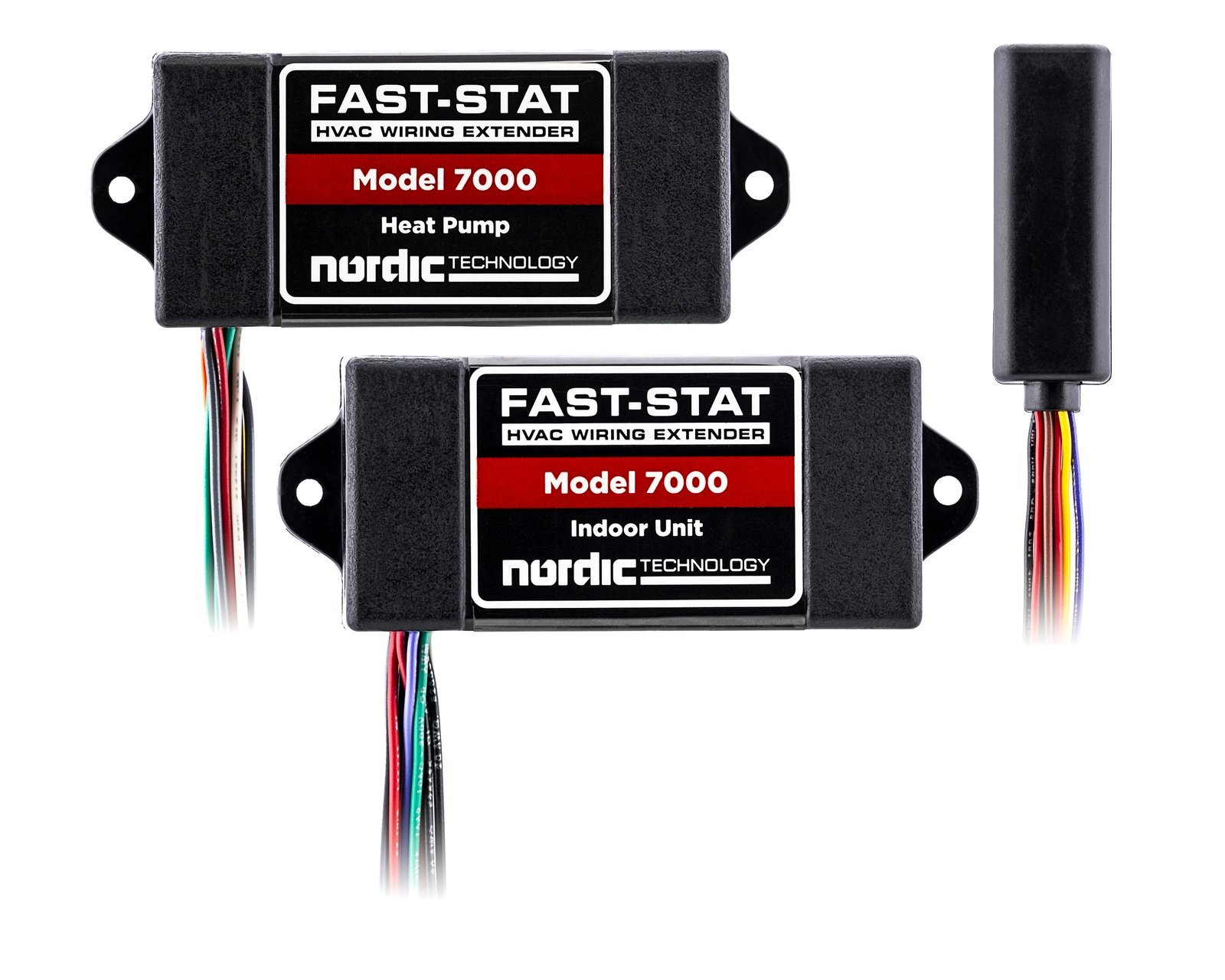

The Fast-Stat Model 7000 is a three-part wiring extender kit designed specifically for converting air conditioner systems to single or two-stage heat pumps. It allows technicians to utilize existing 4-wire thermostat cables and 2-wire condenser cables, avoiding the need to run new wires during the upgrade.This kit transmits the necessary R, C, G, Y1, Y2, W, and O/B signals between the thermostat and indoor unit via the 4-wire cable, and Y1, Y2, O/B, and W signals between the indoor unit and the outdoor heat pump using the 2-wire cable. It also features a built-in controller for optional fossil fuel or supplemental heat configurations.
Nordic Technology Wiring Extender, Model: FAST-STAT, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Black
- Designed for single or two-stage air conditioner to heat pump conversions.
- Enables use of existing 4-wire thermostat and 2-wire condenser cables, saving installation time.
- Transmits full heat pump signals (R, C, G, Y1, Y2, W, O/B) over limited wiring.
- Provides R, C, G, Y1, Y2, W, and O/B over the 4-wire thermostat cable.
- Provides Y1, Y2, O/B, and W over the 2-wire condenser cable.
- Includes an integrated controller for optional fossil fuel or supplemental heat setups.
- Operates on standard Class 2 transformer power (23-38VAC) with a maximum load of 2 amps.
