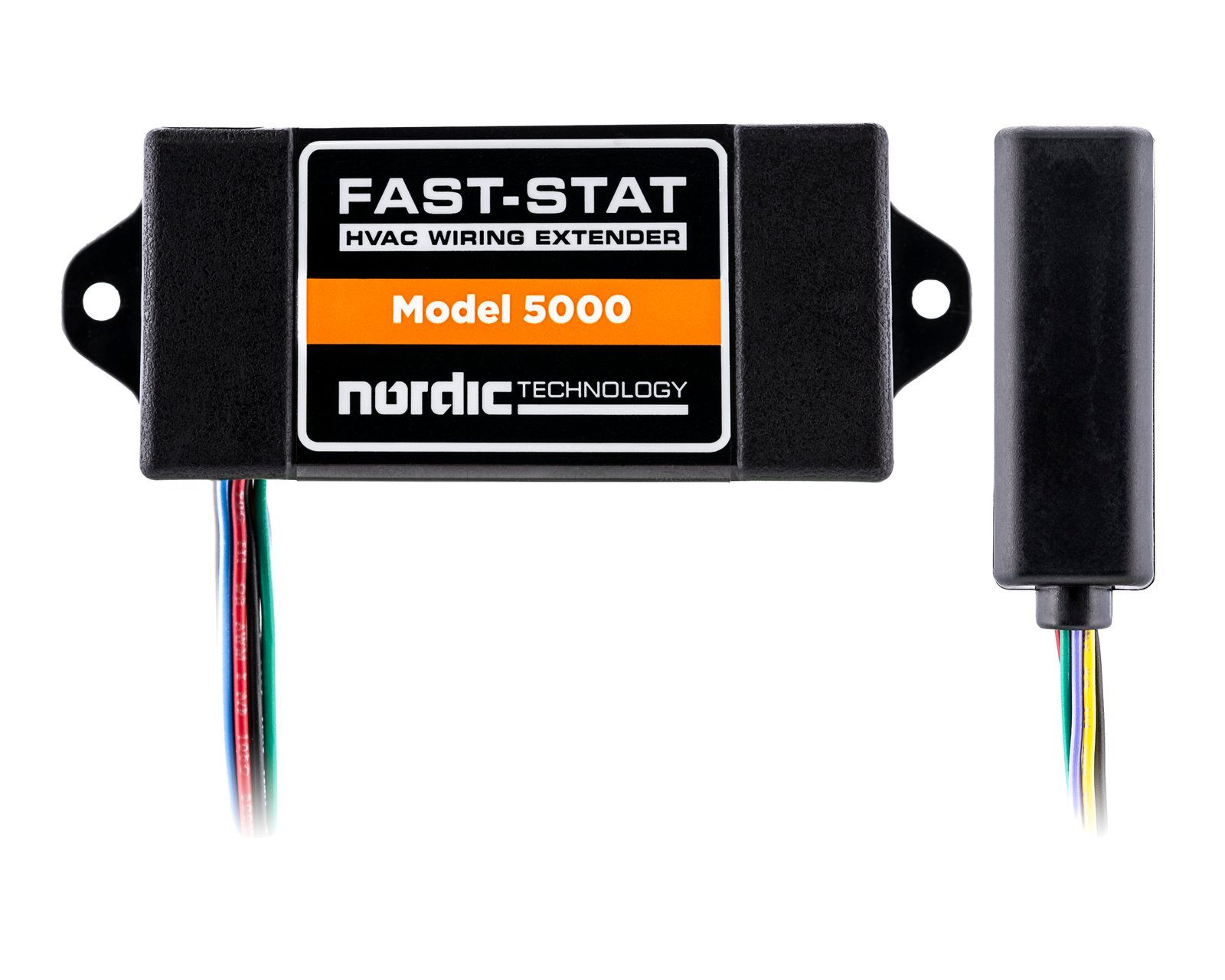

Nordic Technology FAST-STAT MODEL 5000 Wiring Extender, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black
Nordic Technology FAST-STAT MODEL 5000 Wiring Extender, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black

Nordic Technology FAST-STAT MODEL 5000 Wiring Extender, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black

Nordic Technology FAST-STAT MODEL 5000 Wiring Extender, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black

Manufacturer: Nordic Technology
Brand: FAST-STAT
Part #: 387854
MPN: MODEL 5000
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      2 A (Max Load)
Color      :      Black
End Style      :      Bare Wire
Material      :      Copper
Number of Conductors      :      4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable)
Series      :      FAST-STAT
Suitable For Use With      :      Most 24VAC Heating And Cooling Systems; Thermostats; Indoor Units
Voltage Rating      :      23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating)

The FAST-STAT Model 5000 provides three additional control wires and a common connection 'C' between a thermostat and the indoor HVAC unit. This allows technicians to achieve 6-wire control (such as R, C, G, Y, W1, W2) using only an existing 2-wire cable, or 8-wire control using a 4-wire cable.This wiring extender is ideal for adding air conditioning, heat pumps, or multi-stage heating/cooling without the cost and effort of pulling new thermostat wire. It is compatible with most standard 24VAC heating and cooling systems but should not be used to extend wiring between indoor and outdoor units.

Nordic Technology Wiring Extender, Model: FAST-STAT, 4 (Adds, 3 Control + Common 'C' Using A 2-Wire Cable) Conductors, 23-28 VAC (Operating), 30 VAC (Max Operating), 24 V (Contact Rating), 2 A (Max Load), Bare Wire, Copper, Black

  • Adds 3 control wires plus a common 'C' connection using an existing 2-wire thermostat cable.
  • Enables 6-wire control (e.g., R, C, G, Y, W1, W2) over 2 wires, or 8-wire control over 4 wires.
  • Eliminates the need to pull new thermostat wire, saving installation time and cost.
  • Compatible with most standard 24VAC heating and cooling systems.
  • Operates on 23-28 VAC power with a maximum connected load of 2 amps.
  • Intended for extending wiring between the thermostat and indoor unit only.
