Nordic Technology FAST-STAT MODEL 1000 Wiring Extender, 1 (Adds One Wire) Conductors, 24 VAC (Nominal), 30 VAC (Max Operating), 23-28 VAC (Required Transformer Range), 2 A (Max Load), Copper, Black
Nordic Technology FAST-STAT MODEL 1000 Wiring Extender, 1 (Adds One Wire) Conductors, 24 VAC (Nominal), 30 VAC (Max Operating), 23-28 VAC (Required Transformer Range), 2 A (Max Load), Copper, Black
| Amperage Rating | : | 2 A (Max Load) |
| Color | : | Black |
| Material | : | Copper |
| Number of Conductors | : | 1 (Adds One Wire) |
| Series | : | FAST-STAT |
| Suitable For Use With | : | 24VAC Heating and Cooling Systems; Adding 2-Stage Heating/Cooling; Adding Common 'C' Wire (With 3+ Wires); Adding Fan/Humidity Control; Condenser Cable Wiring; Thermostat Wiring; Cable Repairs |
| Voltage Rating | : | 24 VAC , 30 VAC (Max Operating), 23-28 VAC (Required Transformer Range) |

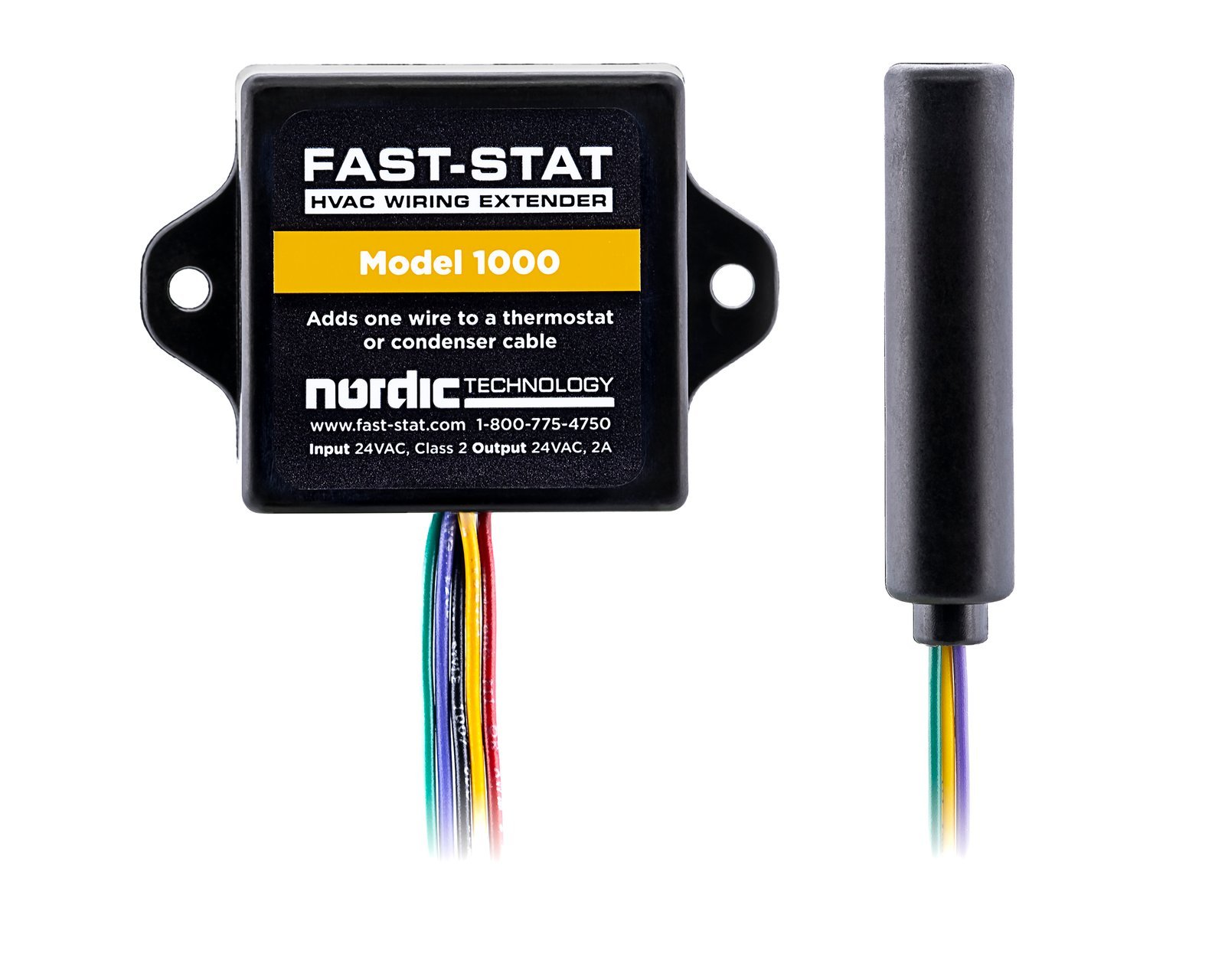

The FAST-STAT Model 1000 Wiring Extender adds an additional control wire between components like thermostats and indoor units, or between indoor and outdoor units. It provides a reliable, wired solution for various HVAC wiring challenges without requiring batteries or programming.This device enables system upgrades such as adding two-stage heating or cooling, installing thermostats requiring a common 'C' connection (when three or more wires are present), incorporating fan or humidity control, or repairing damaged cable runs. The Model 1000 is compatible with standard 24VAC heating and cooling systems and includes both Sender and Receiver units.
Nordic Technology Wiring Extender, Model: FAST-STAT, 1 (Adds One Wire) Conductors, 24 VAC (Nominal), 30 VAC (Max Operating), 23-28 VAC (Required Transformer Range), 2 A (Max Load), Copper, Black
- Adds one additional control wire for thermostat or condenser cable runs.
- Enables system upgrades like 2-stage heating/cooling or adding a common 'C' wire (with 3+ existing wires).
- Facilitates adding fan or humidity control, or repairing broken wires.
- Compatible with standard 24VAC heating and cooling systems.
- Requires no batteries or programming for operation.
- Supports a maximum connected load of 2 amps at up to 30VAC.
- Kit includes Sender and Receiver units.
- Covered by a lifetime warranty.
