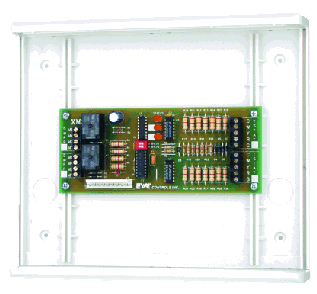

EWC Controls Ultra-Zone XM-2 Expansion Panel, 2 Zones, 2 H / 1 C, 19-30 VAC, Auto Changeover, Bus Connection, 7 VA, 18 AWG (Solid Copper) Wire Size
EWC Controls Ultra-Zone XM-2 Expansion Panel, 2 Zones, 2 H / 1 C, 19-30 VAC, Auto Changeover, Bus Connection, 7 VA, 18 AWG (Solid Copper) Wire Size

EWC Controls Ultra-Zone XM-2 Expansion Panel, 2 Zones, 2 H / 1 C, 19-30 VAC, Auto Changeover, Bus Connection, 7 VA, 18 AWG (Solid Copper) Wire Size

EWC Controls Ultra-Zone XM-2 Expansion Panel, 2 Zones, 2 H / 1 C, 19-30 VAC, Auto Changeover, Bus Connection, 7 VA, 18 AWG (Solid Copper) Wire Size

Manufacturer: EWC Controls, Inc
Brand: EWC®
Part #: 392276
MPN: XM-2
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Changeover      :      Auto
Connection Type      :      Bus Connection
Dimensions      :      9-7/8" H x 10" W x 1-7/10" D
Domestic/Import      :      Domestic
Electrical Connection      :      Bus Cable
Frequency Rating      :      60 Hz
Humidity Rating      :      0-95% RH (Non-Condensing)
Number of Zones      :      2
Outputs      :      Adds 2 Zones
Series      :      Ultra-Zone
Shape      :      Rectangular
Stages      :      2 H / 1 C
Temperature Rating      :      -20-160 °F
VA Rating      :      7 VA
Voltage Rating      :      19-30 VAC
Wire Size      :      18 AWG (Solid Copper)

The XM-2 is the expansion panel for the BMPlus3000 series control panels. The XM-2 will allow the original (3) three zone panel to expand 2 zones at a time. The XM-2 comes with a “plug-and-play†cable that will connect to the main zone panel.

EWC Controls Expansion Panel, Model: Ultra-Zone, 2 Zones, 2 H / 1 C, 19-30 VAC, Auto Changeover, Bus Connection, 7 VA, 18 AWG (Solid Copper) Wire Size, -20-160 °F Temperature Rating, 0-95% RH (Non-Condensing), 9-7/8" H x 10" W x 1-7/10" D Dimensions, Rectangular, 60 Hz, Domestic

  • Expands EWC BMPlus3000 or BMPlus5000 systems by 2 zones per module.
  • Connects easily to the main panel using the included plug-and-play bus cable.
  • Supports adding up to two XM-2 modules for a total of 4 additional zones (7 zones total).
  • Compatible with standard single-stage (1H/1C) or heat pump (2H/1C) thermostats.
  • Works with EWC URD, ND, RSD, SID dampers, or any 24 VAC 2-wire or 3-wire damper.
  • Features on-board LEDs to indicate system operation and damper status.
  • Provides automatic heat/cool changeover functionality.
  • Submittal https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/submittal-sheet-model-xm-2-expansion-module-3336-5449.pdf
  • Data Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/technical-bulletin-3336-5167.pdf
