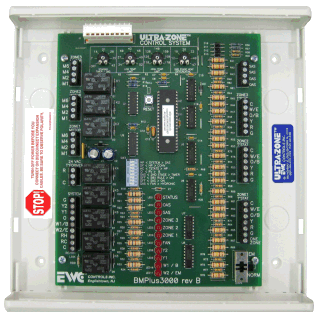

EWC Controls BMPlus BMPLUS-3000 Zone Control Panel, 3-7 (Expandable) Zones, 2 H / 2 C (Gas/Electric/Hydro), 3 H / 2 C (Heat Pump Conventional Or Dual Fuel), 18-30 VAC, Auto Changeover, 15 VA, 18 AWG (Solid Copper) Wire Size, -20-160 °F Temperature Rating
EWC Controls BMPlus BMPLUS-3000 Zone Control Panel, 3-7 (Expandable) Zones, 2 H / 2 C (Gas/Electric/Hydro), 3 H / 2 C (Heat Pump Conventional Or Dual Fuel), 18-30 VAC, Auto Changeover, 15 VA, 18 AWG (Solid Copper) Wire Size, -20-160 °F Temperature Rating
Manufacturer: EWC Controls, Inc
Brand: EWC®
Part #: 385702
MPN: BMPLUS-3000
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Number of Zones | : | 3-7 (Expandable) |
| VA Rating | : | 15.0 VA |
| Voltage Rating | : | 18-30 VAC |
The BMPlus3000 series offers versatile control for single-stage, two-stage, dual fuel, and heat pump systems, supporting up to seven zones. Designed for optimum performance and comfort, this panel starts with a 3-zone configuration and can be expanded using the XM-2 expansion panel (sold separately).The intelligent design includes features like the 50% rule, which inhibits the second stage of heating or cooling unless more than half of the total zones are calling, optimizing energy use. It's also fully dual-fuel compatible without needing a separate kit, allowing staging based on either an adjustable timer (7-42 min) or an optional outdoor air sensor.
EWC Controls Zone Control Panel, Model: BMPlus, 3-7 (Expandable) Zones, 2 H / 2 C (Gas/Electric/Hydro), 3 H / 2 C (Heat Pump Conventional Or Dual Fuel), 18-30 VAC, Auto Changeover, 15 VA, 18 AWG (Solid Copper) Wire Size, -20-160 °F Temperature Rating, 0-95% RH (Non-Condensing), 9-7/8" H x 10" W x 1-7/10" D Dimensions, 50 Hz, 60 Hz, Domestic
- Controls up to 3 zones standard, expandable up to 7 zones with optional XM-2 modules.
- Compatible with conventional (up to 2H/2C), heat pump (up to 3H/2C), and dual fuel systems.
- Includes an adjustable supply air sensor (SAS) to protect HVAC equipment.
- Allows staging via adjustable on-board timer (7-42 min) or optional outdoor air sensor (OAS).
- Features on-board LEDs for easy system status diagnosis.
- Supports automatic changeover and works with standard single-stage thermostats.
- Offers a "one zone" mode for simplified operation during unoccupied periods.
