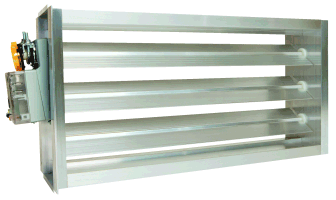

EWC Controls ND Series 14X18 ND Rectangular Motorized Damper, 14" x 18" Opening Size, Rectangular, 24 VAC, 1,070 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return
EWC Controls ND Series 14X18 ND Rectangular Motorized Damper, 14" x 18" Opening Size, Rectangular, 24 VAC, 1,070 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return
| Amperage Rating | : | 1.5 A |
| Blade Type | : | Overlapping Parallel |
| CFM Rating | : | 1,070 CFM |
| Color | : | Silver |
| Differential Pressure | : | 1.5 in. wc. |
| Dimensions | : | 18" H x 14" W x 4" D |
| Domestic/Import | : | Domestic |
| Electrical Connection | : | Quick Connecting Terminal Block, 3-Wire |
| Finish | : | Mill Finish (Extruded Aluminum) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Height | : | 22 |
| Length | : | 22 |
| Material Standard | : | UL Listed (Motor Actuator), NEMA 1 (Motor Housing) |
| Material | : | Extruded Aluminum (Frame/Blades), Nylon (Bearings) |
| Model | : | 14X18 ND |
| Motor Specifications | : | 24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed |
| Motor Type | : | Power Open/Power Close, Non-Spring Return |
| Mounting Type | : | Slip-In, Side/Bottom Mount (Motor) |
| Opening Size | : | 14" x 18" |
| Phase | : | 1 |
| Pressure Rating | : | 1.5 in. wc. |
| Rated Velocity | : | 1,500 fpm |
| Series | : | ND Series |
| Shape | : | Rectangular |
| Size | : | 14" x 18" |
| Temperature Rating | : | 185 °F (Maximum, Operating) |
| Timing Range | : | 40 seconds |
| Torque Rating | : | 18 in-lb |
| Voltage Rating | : | 24 VAC |
| Width | : | 7 |
The EWC Controls ND Series Motorized Damper is built with heavy-duty extruded aluminum and features nylon bearings for quiet operation. Its overlapping parallel blade design ensures low leakage (less than 5%) at static pressures up to 1.5" w.c.This damper utilizes a power open/power close, 24VAC/VDC motor actuator rated at 18 in-lbs of torque, housed in a NEMA1 enclosure. Integrated end-stop adjustments allow for setting minimum closed and maximum open positions for airflow balancing. Bright LEDs provide clear visual indication of the damper's open or closed status.
EWC Controls Rectangular Motorized Damper, Model: ND Series, 14" x 18" Opening Size, Rectangular, 24 VAC, 1,070 CFM, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb, 40 Seconds Timing Range, 24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed, 18" H x 14" W x 4" D Dimensions, Quick Connecting Terminal Block, 3-Wire Electrical Connection, Extruded Aluminum (Frame/Blades), Nylon (Bearings), UL Listed (Motor Actuator), NEMA 1 (Motor Housing), Mill Finish (Extruded Aluminum), Silver, Overlapping Parallel, 1,500 FPM, 1.5 A, 185 °F (Maximum, Operating), 50 Hz, 60 Hz, 1 Phase, Domestic
- Constructed from heavy-duty extruded aluminum frame and blades.
- Nylon bearings ensure quiet, smooth operation.
- Overlapping parallel blades provide low leakage (less than 5%) at pressures up to 1.5" w.c.
- Features a 24VAC/VDC, 3-wire, power open/power close motor actuator with 18 in-lbs of torque.
- Integrated end-stop adjustments allow setting minimum and maximum blade positions.
- Bright LED indicators show damper open/closed status.
- UL Listed motor actuator with NEMA1 rated housing.
