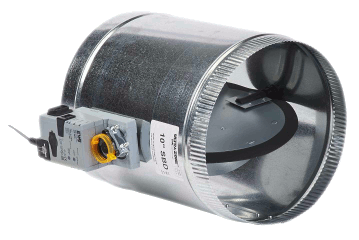

EWC Controls SBD Series Smart Bypass Damper, 10" Diameter, 24 VAC, Round, Horizontal, Vertical Mounting Type, Modulating, 4 VA, 2 W
EWC Controls SBD Series Smart Bypass Damper, 10" Diameter, 24 VAC, Round, Horizontal, Vertical Mounting Type, Modulating, 4 VA, 2 W
| Color | : | Silver |
| Diameter | : | 10 " |
| Differential Pressure | : | 0.1-2.4 in. wc. |
| Domestic/Import | : | Domestic |
| Finish | : | Galvanized |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Gauge | : | 24 ga |
| Material | : | Galvanized Steel |
| Model | : | SBD |
| Motor Specifications | : | 24 VAC, 4 VA, 2 W, Non-Volatile Memory, Manual Gear Release, Pressure Sensor (Belimo D3), LED Indicators |
| Motor Type | : | Modulating |
| Mounting Type | : | Horizontal, Vertical |
| Number of Blades | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 2 W |
| Series | : | SBD Series |
| Shape | : | Round |
| Temperature Rating | : | -40-169 °F |
| VA Rating | : | 4 VA |
| Voltage Rating | : | 24 VAC |
The Smart Bypass Motor Actuator is a digital differential pressure controller with an integrated PI loop and intelligent software. The Smart Bypass Damper is the only industry bypass solution that can automatically measure, monitor and maintain the designed operating static pressure of the HVAC system in all modes of operation.The Smart Bypass Damper includes all of the accessories needed for field installation. No measuring instruments are required.
EWC Controls Smart Bypass Damper, Model: SBD Series, 10" Diameter, 24 VAC, Round, Horizontal, Vertical Mounting Type, Modulating, 4 VA, 2 W, 0.1-2.4 In. Wc. Differential Pressure, Galvanized Steel, 24 Ga Gauge, Galvanized, Silver, 50 Hz, 60 Hz, 1, 1 Blade, -40-169 °F, Domestic
- Automatically measures, monitors, and maintains the designed operating static pressure in all modes of operation.
- Simplifies setup with single push-button calibration; no measuring instruments, weights, or springs required.
- Self-balancing feature eliminates the need for a separate manual bypass balancing damper.
- Features NFC interface for setup and monitoring via compatible smartphones (Android/iOS with adapter).
- Constructed from durable 24-gauge galvanized steel with rolled shells.
- Flexible mounting options include horizontal, vertical, or any angle required in the field.
- Compliant with ACCA Manual Zr standards and UL Listed.
