DiversiTech Wet Switch WS-1 Flood Detector, Conductive (Via Stainless Steel Sensor Array And Hydrophilic Pad), 18-30 VAC, 50/60 Hz, Pan Mount (Secondary Drain Pan), Yes (Wired In Series) Interconnection Capability, Visual (LED), Relay Contact, No (Relay Contact Available For External Alarm), Red LED (Moisture Detected), Green LED (Power)
DiversiTech Wet Switch WS-1 Flood Detector, Conductive (Via Stainless Steel Sensor Array And Hydrophilic Pad), 18-30 VAC, 50/60 Hz, Pan Mount (Secondary Drain Pan), Yes (Wired In Series) Interconnection Capability, Visual (LED), Relay Contact, No (Relay Contact Available For External Alarm), Red LED (Moisture Detected), Green LED (Power)
| Alarm Current | : | 2 A (Contact Rating) |
| Alarm Type | : | Visual (LED), Relay Contact |
| Audible Alert | : | No (Relay contact available for external alarm) |
| Color | : | White, Blue |
| Detection Method | : | Conductive (via Stainless Steel Sensor Array and Hydrophilic Pad) |
| Dimensions | : | 3-5/8" Diam x 1-1/4" H |
| Display Type | : | LED (Indicators) |
| Domestic/Import | : | Import |
| Frequency Rating | : | 50/60 Hz |
| Interconnection Capability | : | Yes (Wired in series) |
| Material | : | Stainless Steel (Sensor Array), Polymeric Fiber (Hydrophilic Pad) |
| Model | : | WS-1 |
| Mounting Type | : | Pan Mount (Secondary Drain Pan) |
| Number of Sensors | : | 1 pcs (Internal Array Of Multiple Sensor Points) |
| Power Rating | : | 1.5 W |
| Power Supply | : | 18-30 VAC, 50/60 Hz |
| Sensitivity | : | Detects 1-2 drops of water |
| Sensor Type | : | Stainless Steel Sensor Array (With Hydrophilic Pad) |
| Series | : | Wet Switch |
| Size | : | 3-5/8" Diam x 1-1/4" H |
| Suitable For Use With | : | Condensate Drain Pans, HVAC Cooling Systems, Air Handlers |
| Visual Indicator Type | : | Red LED (Moisture Detected), Green LED (Power) |
| Voltage Rating | : | 24 V |
| Wire Type | : | 5-Conductor 22 AWG Stranded |

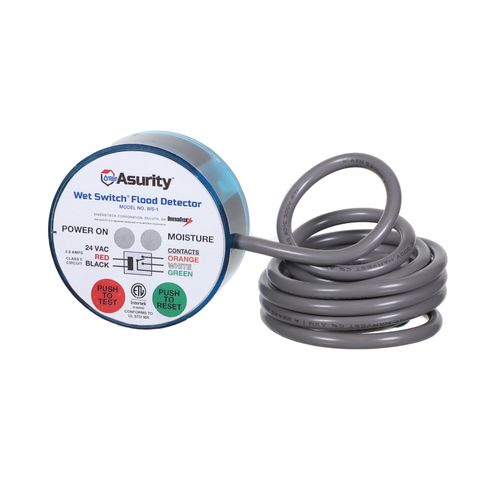

The Asurity WS-1 Wet Switch Dual Voltage Flood Detector is the last line of defense against catastrophic flood damage. A high-tech array of multiple stainless-steel sensors detect even a minimal amount of water drawn into the hydrophilic pad and turns the system off alerting homeowner or service person to potential moisture problems. A lit LED indicates the Wet Switch is activated and has turned the unit off. Reset by simply drying the absorbent pad with a paper towel and pressing the reset switch. Connect multiple switches to expand protection area and connect to multiple pieces of equipment simultaneously.
DiversiTech Flood Detector, Model: Wet Switch, Conductive (Via Stainless Steel Sensor Array And Hydrophilic Pad), 18-30 VAC, 50/60 Hz, Pan Mount (Secondary Drain Pan), Yes (Wired In Series) Interconnection Capability, Visual (LED), Relay Contact, No (Relay Contact Available For External Alarm), Red LED (Moisture Detected), Green LED (Power), Stainless Steel Sensor Array (With Hydrophilic Pad), Detects 1-2 Drops Of Water, 1 Pcs (Internal Array Of Multiple Sensor Points) Sensors, 3-5/8" Diam x 1-1/4" H Dimensions, 5-Conductor 22 AWG Stranded, LED (Indicators), 2 A (Contact Rating) Alarm Current, Stainless Steel (Sensor Array), Polymeric Fiber (Hydrophilic Pad), Import, White, Blue
- Detects as little as 1-2 drops of water to shut down the connected system.
- Connects to standard 18-30 VAC Class 2 circuits found on most air handlers.
- Features built-in test and manual reset buttons for easy operation and verification.
- LED indicators visually confirm power status (green) and moisture detection (red).
- Multiple units can be wired in series to cover larger drain pan areas.
- Plenum rated for flexible installation options.
- ETL Listed to UL 508 standards for safety compliance.
