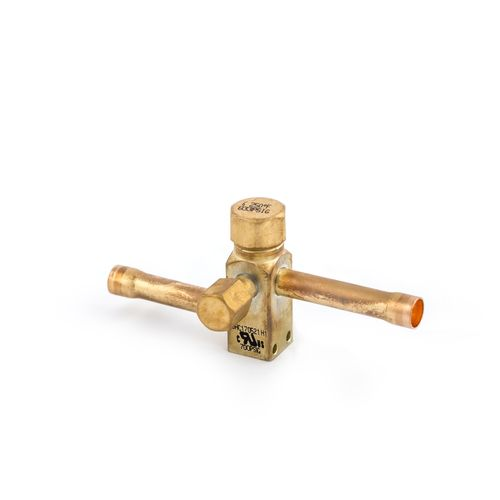

DiversiTech SERVICE-BAR-3-S-T Service Valve, 3/8" Nominal Size, ODF, Refrigerant (A2L, R-22, R134a, R407C, R-410A) Media, 664.7 PSI, -22-248 °F (Fluid), Alloy Brass, Manual
DiversiTech SERVICE-BAR-3-S-T Service Valve, 3/8" Nominal Size, ODF, Refrigerant (A2L, R-22, R134a, R407C, R-410A) Media, 664.7 PSI, -22-248 °F (Fluid), Alloy Brass, Manual
Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 389401
MPN: SERVICE-BAR-3-S-T
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Actuator Type | : | Manual |
| Body Material | : | Alloy Brass |
| Connection Type | : | ODF |
| Dimensions | : | 5" x 2-1/2" x 2" |
| Domestic/Import | : | Import |
| End Type | : | ODF |
| Media | : | Refrigerant (A2L, R-22, R134a, R407C, R-410A) |
| Model | : | SERVICE-BAR-3-S-T |
| Nominal Size | : | 3/8 " |
| Number of Handles | : | 1 |
| Port Type | : | ODF Solder |
| Pressure Rating | : | 664.7 PSI |
| Temperature Rating | : | -22-248 °F (Fluid) |
Sanhua Service Valves easily and efficiently shut off refrigerant flow and allow for the refrigerant to be isolated when servicing. The Service Valves are compatible with all common HCFC and HFC refrigerants and are UL certified with a maximum operating pressure of 650 psig.
DiversiTech Service Valve, 3/8" Nominal Size, ODF, Refrigerant (A2L, R-22, R134a, R407C, R-410A) Media, 664.7 PSI, -22-248 °F (Fluid), Alloy Brass, Manual, 1 Handles, 5" x 2-1/2" x 2" Dimensions, Import, N/A Stage
- Machined from high-quality alloy brass for durability and high tensile strength.
- Designed to handle low pressure drops and demanding environmental conditions.
- Compatible with common HCFC, HFC, and A2L refrigerants including R-22, R-134a, R-407C, and R-410A.
- Features a 7/16-20UNF flare charge port.
- Rated for a maximum operating pressure of 650 psig.
- UL/CSA certified and 100% factory leak tested for reliable performance.
