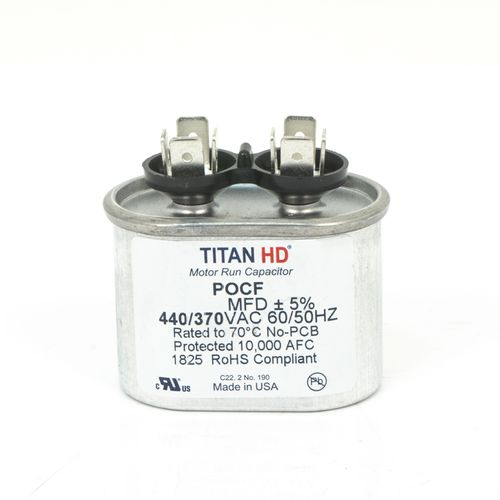

DiversiTech Titan HD POCF2A Oval Run Capacitor, 2 MFD, 370/440 V, Oval, 1 Phase, Standard Blade, ±5% Tolerance, -40 To 70 °C

The Titan HD POCF2A is a reliable, USA-made single motor run capacitor designed for demanding HVAC applications. This oval-shaped capacitor features a 2 MFD capacitance rating and is dual voltage rated for 370 VAC or 440 VAC systems operating at 50/60 Hz.Built for longevity and safety, the Titan HD incorporates heavy-edged metalized polypropylene film for self-healing properties and a proprietary bio-degradable oil for optimal heat transfer and corrosion prevention. It also includes a sophisticated UL-approved pressure-sensitive interrupter for safe end-of-life disconnection.

DiversiTech Oval Run Capacitor, Model: Titan HD, 2 MFD, 370/440 V, Oval, 1 Phase, Standard Blade, ±5% Tolerance, -40 To 70 °C, Aluminum, 60,000 Hrs Average Life, 50 Hz, 60 Hz, Domestic Origin

• Designed for a long operational life of 60,000 hours.
• Meets the EIA-456-A industry standard for performance and quality.
• Features a UL-approved pressure-sensitive interrupter for safe circuit removal at end-of-life.
• Utilizes metalized polypropylene film technology for self-restoration during potential breakdowns.
• Contains environmentally-friendly, bio-degradable oil to prevent corrosion and aid heat transfer.
• Constructed with a durable aluminum case and standard blade terminals.
• Suitable for use as a single AC motor run capacitor.

• Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/hvac-r-product-catalog-3961-3550.pdf
