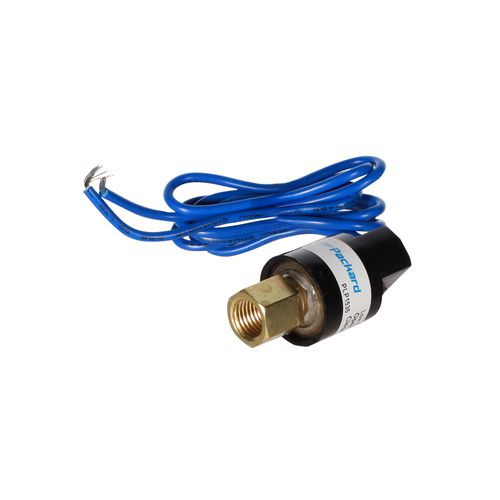

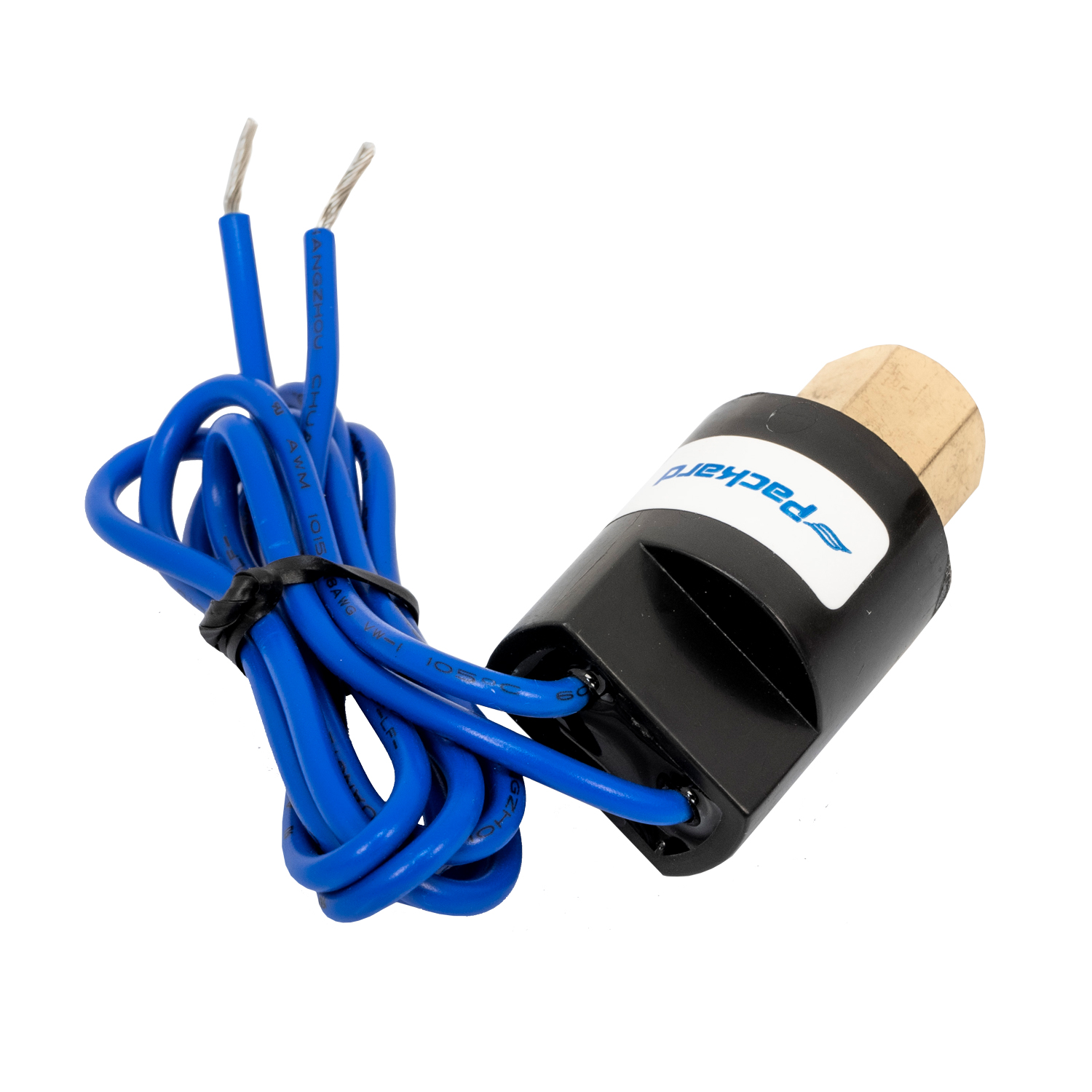

DiversiTech PLP1535 Low Pressure Control, 15 PSI (Open), 35 PSI (Close) Set Points, SPST (Open On Pressure Fall), SAE Female Flare (With Valve Core Depressor), 1/4" Connection Size, 12-240 V, 2.9 A (RLA, 208-240 VAC); 5.8 A (RLA, 110-120 VAC); 5 A (RLA, 48 V); 10 A (RLA, 12-28V), 0-650 PSI (Working)
DiversiTech PLP1535 Low Pressure Control, 15 PSI (Open), 35 PSI (Close) Set Points, SPST (Open On Pressure Fall), SAE Female Flare (With Valve Core Depressor), 1/4" Connection Size, 12-240 V, 2.9 A (RLA, 208-240 VAC); 5.8 A (RLA, 110-120 VAC); 5 A (RLA, 48 V); 10 A (RLA, 12-28V), 0-650 PSI (Working)
| Accuracy | : | ± 5 PSI |
| Amperage Rating | : | 2.9 A (RLA, 208-240 VAC); 5.8 A (RLA, 110-120 VAC); 5 A (RLA, 48 V); 10 A (RLA, 12-28V) |
| Close Pressure | : | 35 PSI |
| Connection Size | : | 1/4 " |
| Connection Type | : | SAE Female Flare (With Valve Core Depressor) |
| Lead Length | : | 18 " |
| Maximum Pressure | : | 5,000 PSI (Burst) |
| Mounting Type | : | Direct Mount |
| Open Pressure | : | 15 PSI |
| Pressure Rating | : | 0-650 PSI (Working) |
| Rated Life Cycle | : | 100,000 cycles |
| Reset Type | : | Automatic Reset |
| Set Points | : | 15 PSI (Open), 35 PSI (Close) |
| Suitable For Use With | : | Refrigeration Systems, Air Conditioning Systems, Heat Pump Systems (Using HFC, HCFC, CFC Refrigerants) |
| Switching Action | : | SPST (Open On Pressure Fall) |
| Temperature Rating | : | -20-176 °F (Ambient), -60-250 °F (Fluid) |
| Voltage Rating | : | 12-240 V |
This encapsulated, non-adjustable SPST switch offers direct mounting thanks to its small size and lightweight design. It is suitable for use with HFC, HCFC, and CFC refrigerants.Designed for applications including refrigeration systems, air conditioning systems, and heat pump systems, this control can also function as an operating control in scenarios like low ambient condenser fan management.
DiversiTech Low Pressure Control, 15 PSI (Open), 35 PSI (Close) Set Points, SPST (Open On Pressure Fall), SAE Female Flare (With Valve Core Depressor), 1/4" Connection Size, 12-240 V, 2.9 A (RLA, 208-240 VAC); 5.8 A (RLA, 110-120 VAC); 5 A (RLA, 48 V); 10 A (RLA, 12-28V), 0-650 PSI (Working), 5,000 PSI (Burst), -20-176 °F (Ambient), -60-250 °F (Fluid), Automatic Reset, ± 5 PSI Accuracy, 100,000 Cycles, Direct Mount, 18" Lead Length
- Compact and lightweight design allows for direct mounting.
- Features a 1/4" SAE female flare connection with a valve core depressor.
- Non-adjustable SPST switch is set to open at 15 PSI and close at 35 PSI.
- Operates with a tolerance of ±5 PSI for reliable pressure monitoring.
- Includes 18" wire leads for convenient electrical hookup.
- Rated for a long service life of 100,000 cycles at rated load.
- Compatible with HFC, HCFC, and CFC refrigerants.
- UL Recognized.
