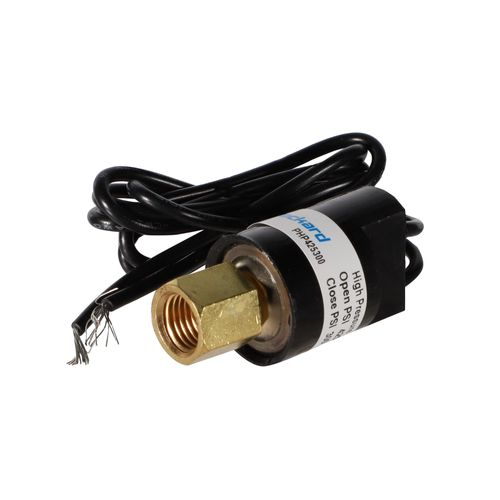

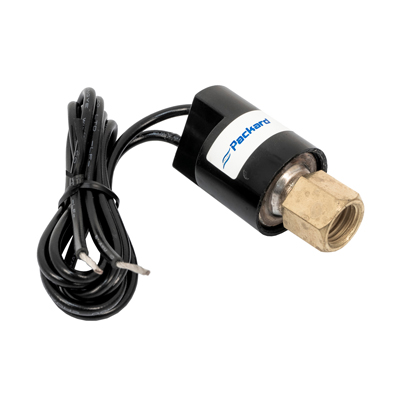

DiversiTech PHP425300 High Pressure Control, 425 PSI (Open), 300 PSI (Close) Set Points, SPST, SAE Female Flare, 1/4" Connection Size, 24-240 V, 6 A, 0-650 PSI (Working)
DiversiTech PHP425300 High Pressure Control, 425 PSI (Open), 300 PSI (Close) Set Points, SPST, SAE Female Flare, 1/4" Connection Size, 24-240 V, 6 A, 0-650 PSI (Working)
DiversiTech PHP425300 High Pressure Control, 425 PSI (Open), 300 PSI (Close) Set Points, SPST, SAE Female Flare, 1/4" Connection Size, 24-240 V, 6 A, 0-650 PSI (Working)

DiversiTech PHP425300 High Pressure Control, 425 PSI (Open), 300 PSI (Close) Set Points, SPST, SAE Female Flare, 1/4" Connection Size, 24-240 V, 6 A, 0-650 PSI (Working)

DiversiTech PHP425300 High Pressure Control, 425 PSI (Open), 300 PSI (Close) Set Points, SPST, SAE Female Flare, 1/4" Connection Size, 24-240 V, 6 A, 0-650 PSI (Working)

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 388632
MPN: PHP425300
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Accuracy      :      ± 15 PSI
Amperage Rating      :      6 A
Close Pressure      :      300 PSI
Connection Size      :      1/4 "
Connection Type      :      SAE Female Flare
Differential Pressure      :      3,463.5 in. wc.
Lead Length      :      18 "
Maximum Pressure      :      650 PSI
Open Pressure      :      425 PSI
Pressure Rating      :      0-650 PSI (Working)
Rated Life Cycle      :      100,000 cycles
Set Points      :      425 PSI (Open), 300 PSI (Close)
Suitable For Use With      :      Refrigeration Systems
Switching Action      :      SPST
Temperature Rating      :      20-176 °F (Ambient), 60-250 °F (Fluid)
Voltage Rating      :      24-240 V

This high-pressure control is designed for use in refrigeration systems, providing essential safety and operational regulation. It features a Single Pole Single Throw (SPST) switching action, set to open at 425 PSI and close at 300 PSI, with a tolerance of ±15 PSI.Equipped with a 1/4" SAE female flare connection including a valve core depressor, installation is straightforward. The control is rated for 24-240V operation and offers excellent set point stability. Its compact size and light weight allow for convenient direct mounting onto system components.

DiversiTech High Pressure Control, 425 PSI (Open), 300 PSI (Close) Set Points, SPST, SAE Female Flare, 1/4" Connection Size, 24-240 V, 6 A, 0-650 PSI (Working), 20-176 °F (Ambient), 60-250 °F (Fluid), 3,463.5 In. Wc. Differential Pressure, ± 15 PSI Accuracy, 100,000 Cycles, 18" Lead Length

  • Provides high-pressure safety control specifically designed for refrigeration systems.
  • Features SPST switching, opening at 425 PSI and closing at 300 PSI (±15 PSI tolerance).
  • Equipped with a 1/4" SAE female flare connection including a valve core depressor.
  • Rated for 24-240V AC operation (6A RLA) and designed for a long service life (100,000 cycles).
  • Compact, lightweight design simplifies direct mounting.
  • Includes 18-inch wire leads for electrical hookup.
  • UL Listed.
