DiversiTech MP-3E E.V.A. Anti-Vibration Pad, 49.3 PSI (Maximum Static Loading) Capacity, EVA Pad, SBR (Outer Layers), Polymeric Foam/EVA (Core), 3" Length, 3" Width, 43/50" Height, Pad Mount

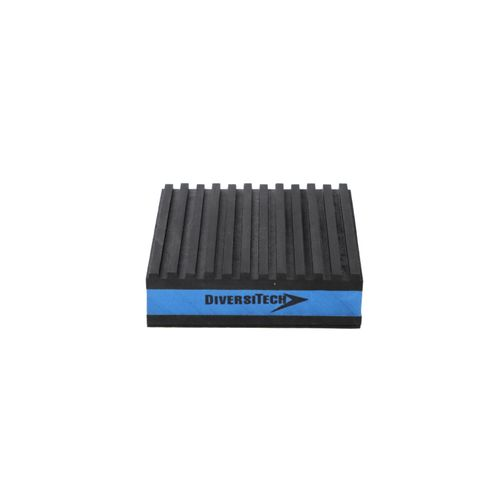

The DiversiTech® MP-3E is a 3x 3x7/8 in. rubber/foam rubber anti-vibration EVA pad designed to reduce vibration and noise emanating from refrigeration and air conditioning equipment. The E.V.A. (Extreme Vibration Attenuation) pad is the latest generation of vibration dampening technology and the most effective anti-vibration pad available. Its superior performance is due to the special composite polymeric foam center and it outperforms cork and rubber AV pads by greater than 3:1

DiversiTech E.V.A. Anti-Vibration Pad, 49.3 PSI (Maximum Static Loading) Capacity, EVA Pad, SBR (Outer Layers), Polymeric Foam/EVA (Core), 3" Length, 3" Width, 43/50" Height, Pad Mount, -13-167 °F Temperature Rating, Black, Blue, Import

• Outperforms standard cork and rubber vibration pads by more than 3-to-1 due to its Extreme Vibration Attenuation (E.V.A.) design.
• Features a special composite polymeric foam center for superior vibration dampening performance.
• Corrugated rubber outer layers laminated to the foam center resist oil and chemical breakdown.
• Opposed rib pattern (90 degrees) on top and bottom resists equipment "walking" or "creep".
• Designed to withstand loads up to 50 PSI.
• Suitable for indoor or outdoor use on A/C units, refrigeration equipment, compressors, cooling towers, pumps, and other machinery.
• Highly resistant to water absorption, acids, oils, ozone, and common chemicals.
• Can be stacked using interlocking ribs if additional vibration absorption or height is desired.
