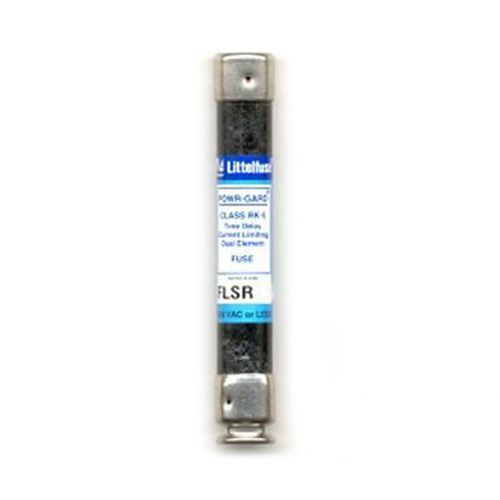

DiversiTech FLSR Series FLSR030T Class RK5 Fuse, 30 A, 600 VAC, 300 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLSR Series FLSR030T Class RK5 Fuse, 30 A, 600 VAC, 300 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
| Amperage Rating | : | 30 A |
| Body Type | : | Cylindrical, Cartridge |
| Class | : | RK5 |
| Diameter | : | 13/16 " |
| Element Type | : | Dual Element |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 200 kA (AC), 20 kA (DC) |
| Length | : | 5 " |
| Mounting Type | : | Fuse Block, Clip Mount, Holder Mount |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | Time-Delay |
| Series | : | FLSR Series |
| Short Circuit Rating | : | 200 kA (AC), 20 kA (DC) |
| Terminal Type | : | Ferrule |
| Voltage Rating | : | 600 VAC, 300 VDC |
Available in both Indicating and Non-Indicating versions, the FLNR/FLSR series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors.
DiversiTech Class RK5 Fuse, Model: FLSR Series, 30 A, 600 VAC, 300 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 13/16" Diameter, 5" Length, 50 Hz, 60 Hz
- Dual-element, time-delay design offers advanced overload and short-circuit protection.
- Provides current limiting protection for downstream components.
- Features a high interrupting rating of 200 kA AC and 20 kA DC.
- Suitable for motor circuits, transformers, mains, feeders, and general-purpose loads.
- Offers superior overload and cycling capabilities.
- UL Listed and CSA Certified for safety and compliance.
- Compatible With: Littelfuse LFR60 and LFR25 series fuse holders.
