DiversiTech FLSR Series FLSR015T Class RK5 Fuse, 15 A, 600 VAC, 300 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLSR Series FLSR015T Class RK5 Fuse, 15 A, 600 VAC, 300 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 387107
MPN: FLSR015T
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 15 A |
| Body Type | : | Cylindrical, Cartridge |
| Class | : | RK5 |
| Diameter | : | 13/16 " |
| Element Type | : | Dual Element |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 200 kA (AC), 20 kA (DC) |
| Length | : | 5 " |
| Mounting Type | : | Fuse Block, Clip Mount, Holder Mount |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | Time-Delay |
| Series | : | FLSR Series |
| Short Circuit Rating | : | 200 kA (AC), 20 kA (DC) |
| Terminal Type | : | Ferrule |
| Voltage Rating | : | 600 VAC, 300 VDC |

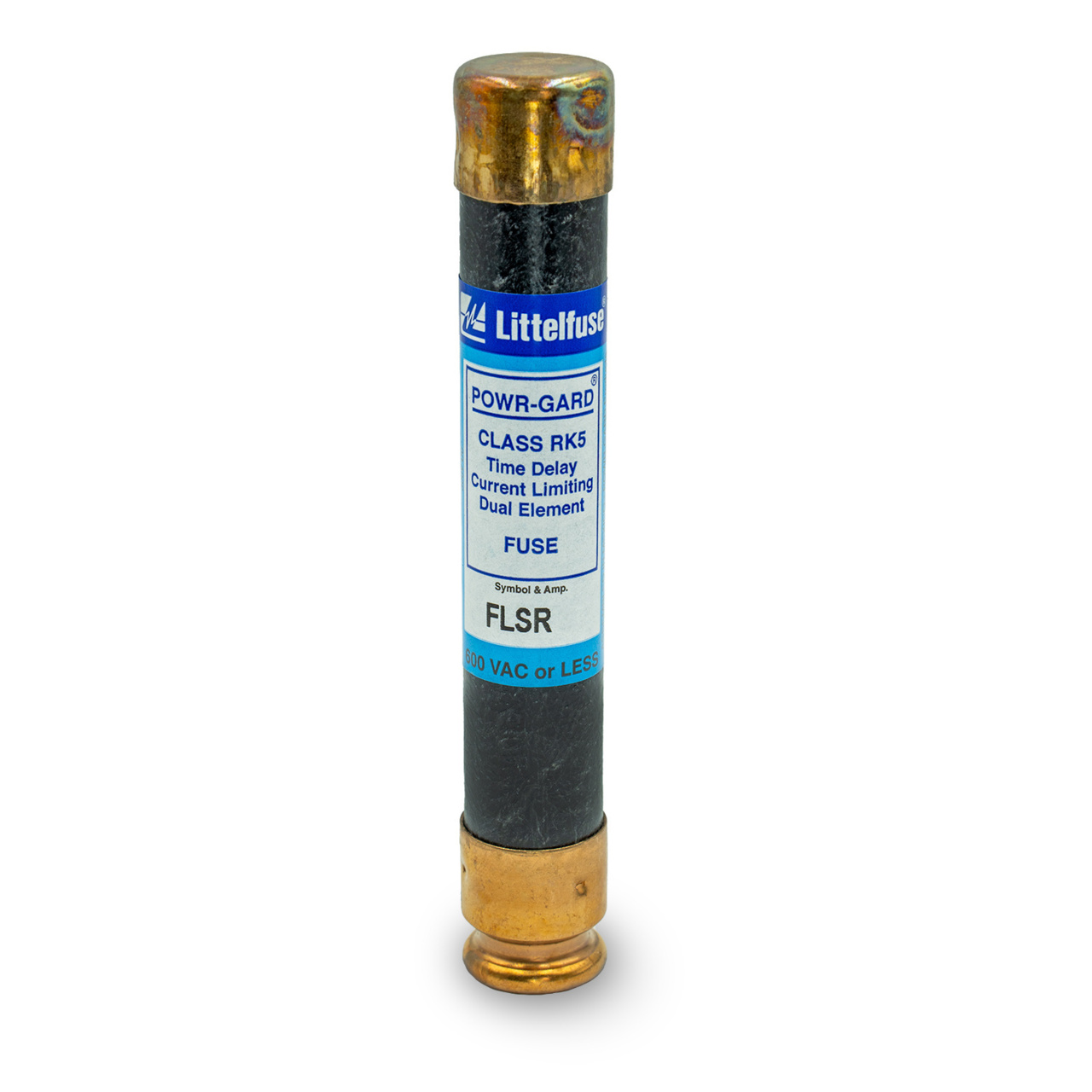

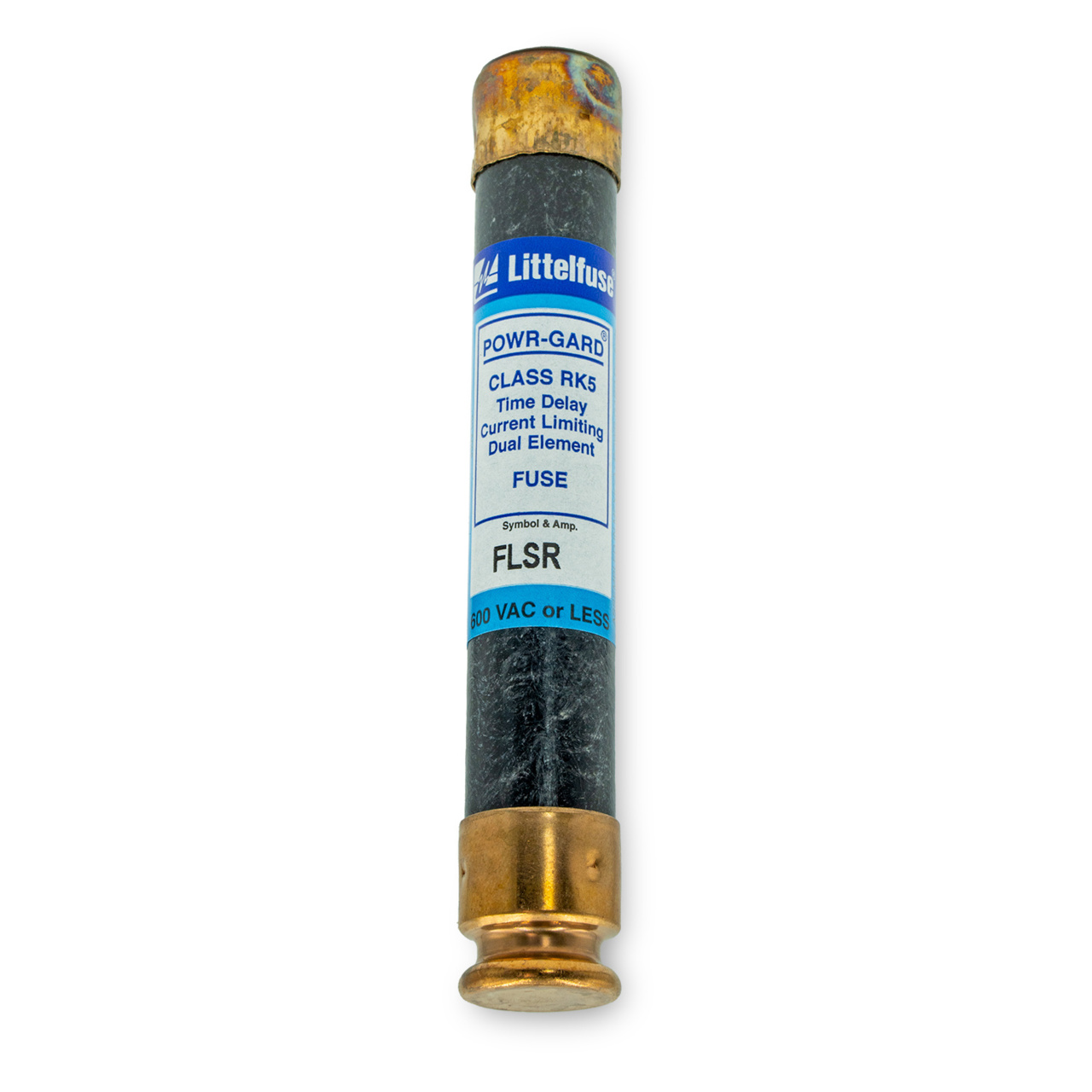

Littelfuse FLSR015T, 15 Amp, 600V Dual-Element, time-delay UL Class RK5 fuses are the most widely used fuse class. They offer superior performance and excellent protection for all types of circuits, especially those with motors.
DiversiTech Class RK5 Fuse, Model: FLSR Series, 15 A, 600 VAC, 300 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 13/16" Diameter, 5" Length, 50 Hz, 60 Hz
- Features a dual-element, time-delay design ideal for motor circuits and general-purpose applications.
- Provides current-limiting protection with a 200 kA AC / 20 kA DC interrupting rating.
- Rated for circuits up to 600 VAC and 300 VDC.
- UL Listed and CSA Certified.
- Industry-standard 5" x 13/16" cartridge size fits compatible fuse blocks, clips, or holders.
- Non-indicating design.
- Packaged as a convenient set of 10 fuses.
