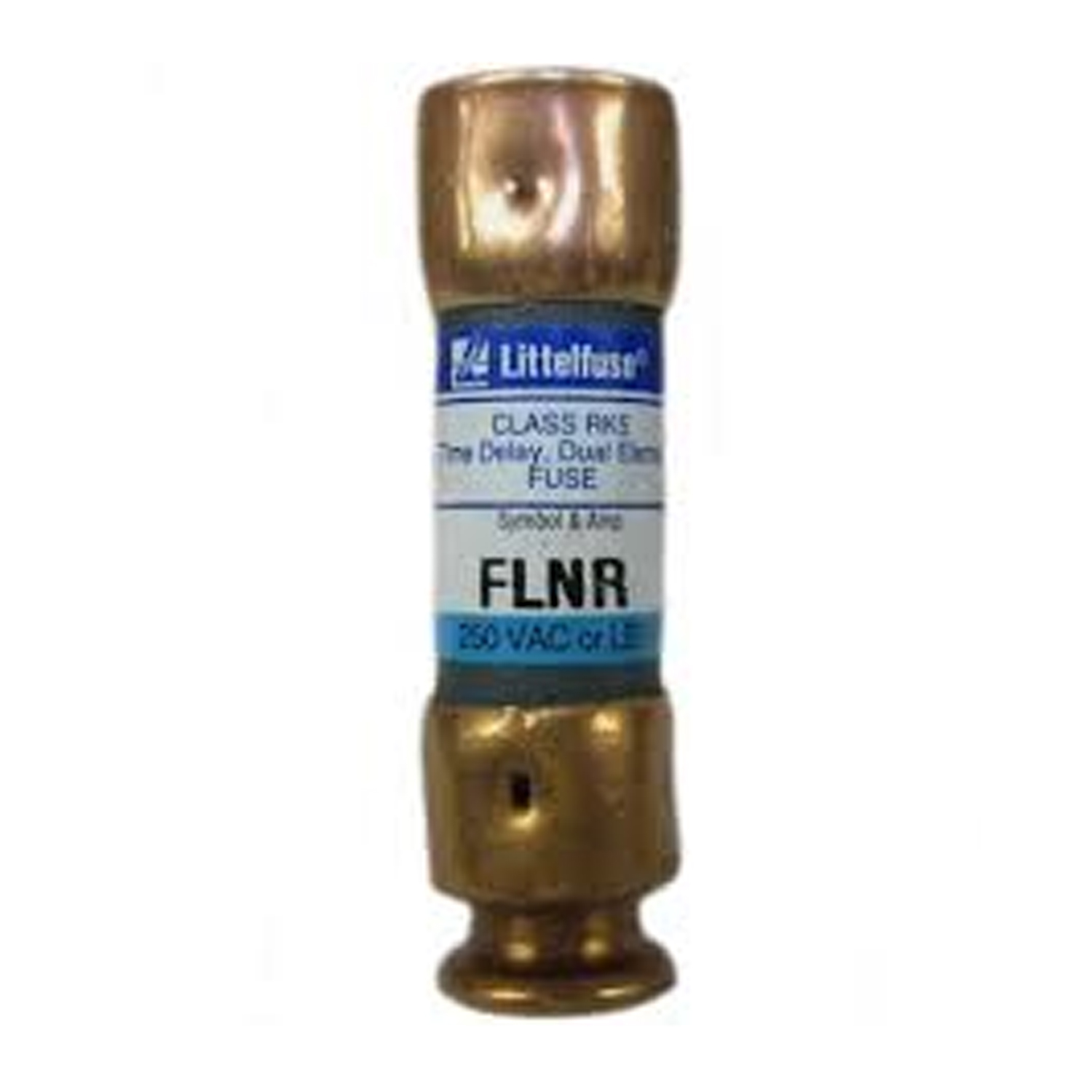

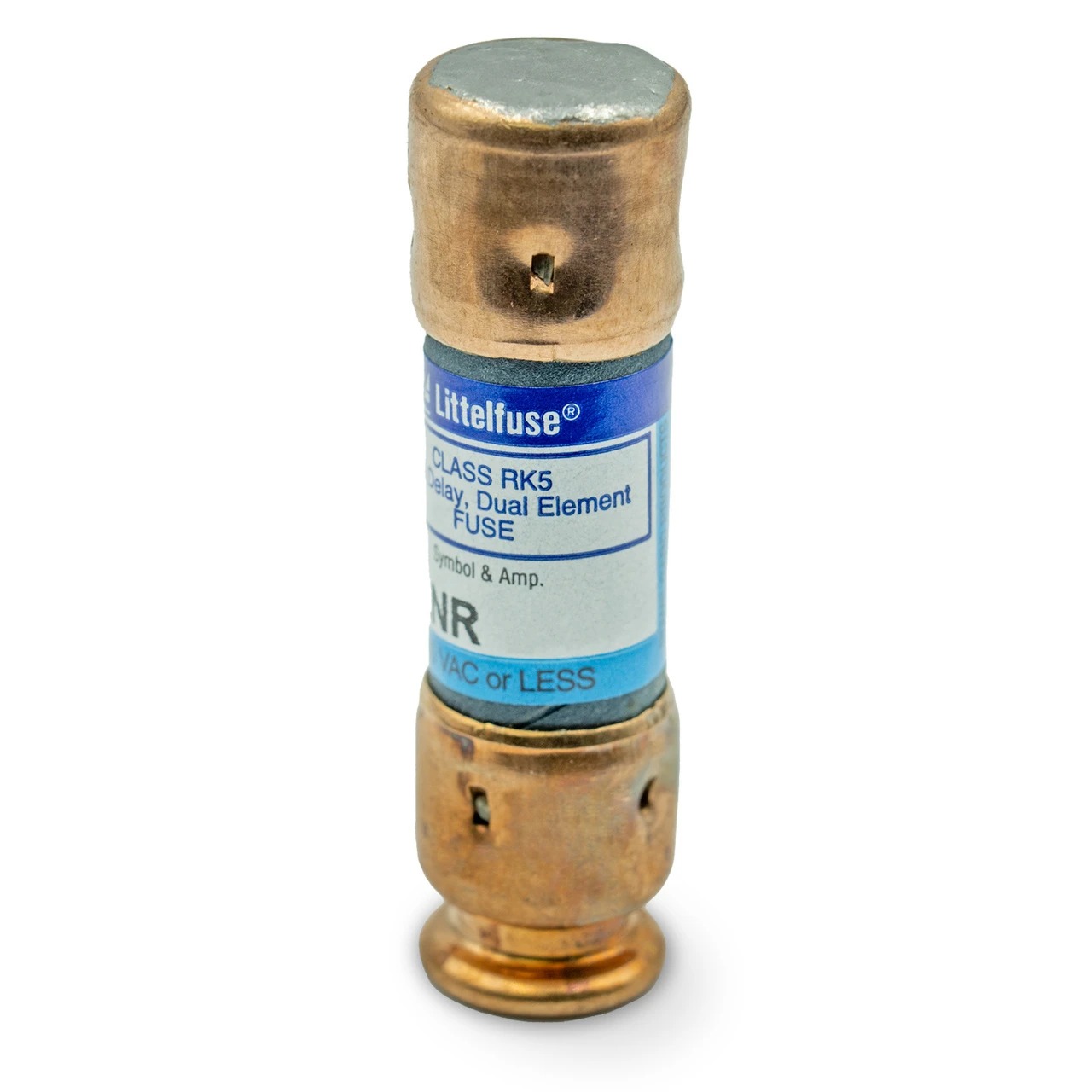

DiversiTech FLNR Series FLNR030T Class RK5 Fuse, 30 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLNR Series FLNR030T Class RK5 Fuse, 30 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
| Amperage Rating | : | 30 A |
| Body Type | : | Cylindrical, Cartridge |
| Class | : | RK5 |
| Diameter | : | 9/16 " |
| Element Type | : | Dual Element |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 200 kA (AC), 20 kA (DC) |
| Length | : | 2 " |
| Mounting Type | : | Fuse Block, Clip Mount, Holder Mount |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | Time-Delay |
| Series | : | FLNR Series |
| Short Circuit Rating | : | 200 kA (AC), 20 kA (DC) |
| Terminal Type | : | Ferrule |
| Voltage Rating | : | 250 VAC, 125 VDC |
Recommended for AC power distribution system mains, feeders, and branch circuits. Provides protection for motors and motor branch circuits, transformers, and other inductive loads. Suitable for all general-purpose applications including lighting, heating and other non-inductive loads.
DiversiTech Class RK5 Fuse, Model: FLNR Series, 30 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 9/16" Diameter, 2" Length, 50 Hz, 60 Hz
- Dual-element, time-delay design handles motor start-ups and transformer inrush without nuisance opening.
- Offers superior overload protection and cycling capabilities.
- Current-limiting functionality provides enhanced component short-circuit protection.
- Features high interrupting ratings: 200 kA RMS Symmetrical Amps AC and 20 kA DC.
- UL Listed and CSA Certified.
- RoHS Compliant.
- Direct replacement for TR, ECNR, FRNR, and FLNR type fuses.
